Newcon Optik NVS-33 Operation Manual

Night vision attachment
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
NIGHT VISION ATTACHMENT
NVS-33
105 Sparks Ave., Toronto, ON M2H 2S5, Canada

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVS-33 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newcon Optik NVS-33

Summary of Contents for Newcon Optik NVS-33

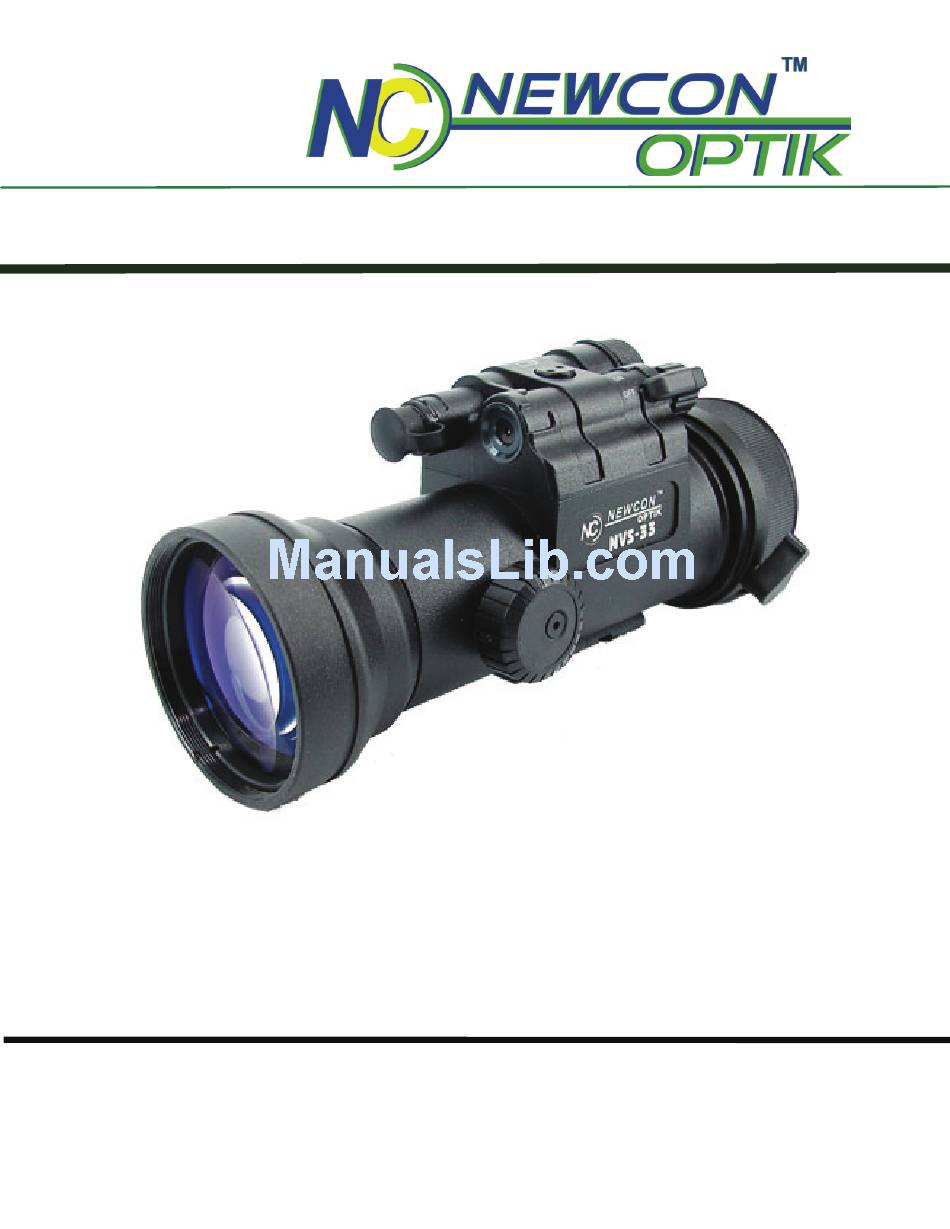

  • Page 1 Operation Manual NIGHT VISION ATTACHMENT NVS-33 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...

  • Page 2: Important Information

    IMPORTANT INFORMATION Read prior to activation. You have purchased a sophisticated electronic device. To operate it properly, please read this manual fully. Ignoring operation procedures described in this manual will void your warranty.  Disassemble the unit. Device contains a NEVER source of high voltage, which may be hazardous to your health!

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.1.  Overview..............4  1.2.  Key features of NVS-33...........5  2.  DESIGN of NVS-33 ..........6  3.  SPECIFICATIONS ..........8  4.  DELIVERY SET............10  5.  INSTALLATION ON A RIFLE ......12  5.1.  Installation with thread usage ........12  5.2.  Installation with a riflescope mounting adapter NC540..............14 ...

  • Page 4: Overview

    1. BRIEF DESCRIPTION 1.1. Overview NVS-33 is an afocal night vision attachment to a daytime weapon scope designed for precise aiming in darkness. The device is equipped with a high-quality generation 3 electro-optical image intensifier tube that amplifies light in the visible and IR spectrum providing for up to a 400- 700 m effective observation range at low light.

  • Page 5: Key Features Of Nvs-33

    1.2. Key features of NVS-33  Installation of NVS-33 in front of a day scope on a weapon does not affect the latter’s zeroing and scope’s tactical parameters  Exit pupil fits a broad range of daytime scopes  Accurate internal focus adjustment mechanism ...

  • Page 6: Design Of Nvs-33

    2. DESIGN of NVS-33 Fig.1 Configuration 1 1 – Ocular with light 7 – Objective focus suppressor adjustment knob 2 – Adapter ring with 8 – Objective lens cover thread 3 – Fixating ring 9 – Battery compartment cover 4 – Retention pin 10 –...
  • Page 7 Fig .2 Configuration 2 (Special order with IR Illuminator) 1 – Ocular 8 – IR illuminator 2 – Adapter ring with 9 – Objective lens cover thread 3 – Fixating ring 10 – Battery compartment cap 4 – Retention pin 11 –...

  • Page 8: Specifications

    3. SPECIFICATIONS Optical Magnification, x Field of view, degrees Daytime scope magnification, 1-20 Acceptable 3-12 Recommended Focus length, mm F-number Focus range 10 m to infinity Image intensifier tube N3XT3631IC Type Gen. 3 18mm MCP Gain, min 35,000 Resolution, lp/mm Infrared illuminator (optional) Type IR diode...
  • Page 9 Illumination wavelength, nm Electrical parameters Power supply 1 CR123 or 1 AA battery Voltage, V Continuous work time, h, min Mechanical characteristics Dimensions, mm 180 x 75 x 60 Weight, g Environmental conditions Operating temperature range -50ºC to +55ºC Relative humidity Up to 98% Waterproof rating IP67...

  • Page 10: Delivery Set

    4. DELIVERY SET - NVS 33 1 pc. - Objective lens cap 1 pc. - Remote control switch 1 pc. - Operator’s manual 1 pc. - Ocular protective cap 1 pc. - Soft case 1 pc. - CR123 Battery 1 pc. - Additional battery cap for AA battery 1 pc.
  • Page 11 Optional accessories: - Hard case 1 pc. - Riflescope mounting adapter 1 pc. of NC540.56, NC540.42 each - Threaded adapters M48, M52, M54, 1 pc. of each - M540 converter to convert NVS33 1 pc. of into 2x monocular each - IR illuminator (mounted on the 1 pc.

  • Page 12: Installation On A Rifle

    5. INSTALLATION ON A RIFLE 5.1. Installation with thread usage Your NVS-33 matches to the inner thread M52x0.75 of the objective lens of those daytime riflescopes that can accept daytime filters. If your scope does not match this thread, use mechanical adapters that transform M52 into M54, M55 or M48 threads.
  • Page 13 The manufacturer is not responsible for use of NVS-33 night sight attachment by a threaded connection on the scope models other than those, which were approved by Newcon Optik. There is no need to re-zero daytime scope or perform any additional adjustment when NVS-33 is installed on the rifle.

  • Page 14: Installation With A Riflescope Mounting Adapter Nc540

    5.2. Installation with a riflescope mounting adapter NC540 Three adapter modifications are available for the NVS-33 night vision attachment to install it in front of daytime riflescopes of different models: Adapter Diameter of the Plastic inserts objective lens of the set (quantity x daytime riflescope thickness)
  • Page 15 Fig. 3 1. NVS-33 night vision attachment 2. Adapter ring 3. Fixing ring with the pin 4. NC540.50 (NC540.56, NC540.42) adapter 5. Adapter screw 6. Plastic inserts 7. Objective lens of a daytime riflescope __________________________________________...
  • Page 16 Assemble the adapter and mount the night sight attachment as follows (Fig. 3): 1. It’s necessary to select needed quantity of the plastic inserts (6) for a particular external diameter of the objective lens of the daytime riflescope. The objective lens of the daytime riflescope (7) should fit loose, but without apparent drift into the adapter (4) with the installed inserts (6) and loosen adapter screw (5).
  • Page 17 The lens of the daytime scope must be positioned at least 15 mm behind the front edge of the scope body. This excludes mechanical contact of the NVS-33 night sight attachment and daytime scope objective lens. Last digits in the NC540 adapters part numbers correlate with the diameter of the daytime riflescope.

  • Page 18: Installation On A Picatinny Rail

    5.3. Installation on a Picatinny rail The night vision attachment NVS-33 can be installed on a Picatinny rail in front of the daytime riflescope. For this purpose, it has an additional Picatinny rail on the side. Night sight Picatinny rail Fig.
  • Page 19 Quick release Night sight rail Fig. 5 rifle rail clamp clamp with screw Actual height of the adapter must be determined at the moment of ordering of the Picatinny rail adapter. Each rifle and riflescope combination is unique, and it is necessary to know height of the line of sight above the Picatinny mount to produce this part precisely.
  • Page 20 Distance between NVS-33 line of sight and daytime riflescope line of sight must not exceed 2 mm. In case of two different rails are used, the angle deviation between two rails must not exceed 2 degrees. Picatinny rail adapter is attached to the scope permanently by means of a small clamp and screw.

  • Page 21: Operation Instructions

    6. OPERATION INSTRUCTIONS WARNING! Lens cover should be always on when switching on NVS-33 in bright light conditions. Never aim the lens in the directions of bright light 6.1. Battery installation NVS-33 is powered by one standard CR123A battery or 1 AA battery.
  • Page 22 Battery compartment cover Fig. 6 To install batteries unscrew the battery compartment cover insert batteries, observing correct polarity, and screw the cover back on. Your NVS-33 is equipped with the low battery indicator located in the field of view. This indicator starts blinking in red colour when the battery charge is low.

  • Page 23: Testing Nvs-33 In The Daytime

    6.2. Testing NVS-33 in the daytime Daytime mode of NVS-33 was designed for testing purposes only. Image may be fuzzy. To test the device in the daylight: 1. Turn switch (5) (Fig.1) into ON position. 2. Direct the device at an object within 10-20 m from the viewer.

  • Page 24: Testing Nvs-33 At Night

    6.3. Testing NVS-33 at night To test NVS-33 in darkness: 1. Take off the lens cover (9) (Fig.1) 2. Turn on the device using switch (5) (Fig.1) 3. By turning knob (7) (Fig.1) obtain clear image of the object. 6.4. Testing NVS-33 at night with daytime scope 1.

  • Page 25: Operation At Night

    6.5. Operation at night Operation procedure: 1. Check the adjustment of the daytime riflescope (diopter adjustment, parallax adjustment, etc.). 2. Install the battery into the NVS-33 and mount it in front of the daytime riflescope as described above. Being mounted in front of a daytime riflescope, the night vision riflescope attachment NVS-33 keeps all tactical features of a daytime riflescope (zoom level, adjustment step, etc.) intact.
  • Page 26 In order to get the maximum quality of night picture through the daytime riflescope, we recommend using riflescope magnifications from 3 to 12. 6. Aim the rifle to an object and focus the objective of device with the knob (7) (Fig.1) on its top until you get maximum sharpness of the observed picture.
  • Page 27 If necessary, turn on the IR-illuminator (6) (Fig.2) (Special order only). NVS-33 is protected against accidental illuminator switch by the design of the switch handle. Press and rotate the switch (5) (Fig.2) to activate the illuminator. Divergence of IR beam could be changed from 5 to 20 degree by rotating of the IR lens.
  • Page 28 When mounted in front of the daytime riflescope, night vision attachment NVS-33 can change zeroing as not more than 3 cm at 100 m. This is connected with changes in the weapon balance, light distortions in the image intensifier tube, technological limits of the adjustment of the night riflescope attachment.

  • Page 29: Use In A Dark Time As A 2X Night Vision Monocular

    6.6. Use in a dark time as a 2x night vision monocular Operation procedure: 1. Screw the optional М-540 optical monocular into the eyepiece of the NVS-33 night vision attachment. 2. Open the objective lens cover (9) (Fig.1). 3. Turn the switch (5) (Fig.1) of the device into ON position.

  • Page 30: Operation With Remote Control

    6.7. Operation with remote control Fig. 7 1 – On/Off switch 2 – Female connector for the remote control 3 – The start button of the remote control 4 – Remote control body 5 – The start button of the IR illuminator (Special order only) 6 –...
  • Page 31 The NVS-33 night vision attachment has the capability of operation with the external remote control that turns on and off the device itself and its IR illuminator. Operation procedure: 1. Insert the jack of the remote control into the female connector (2) (Fig.7). 2.

  • Page 32: Storage And Maintenance

    7. STORAGE AND MAINTENANCE WARNING! If NVS-33 has been stored for a long time at temperature lower than -40C (-40F), then prior to using the device must be kept at an ambient temperature of -10C (14F) to +40C (104F) with humidity below 80%. NVS-33 is a sophisticated precise optical instrument equipped with electronics.
  • Page 33  Keep away from sources of heat, such as heating appliances, sunlight or central heating. Do not keep the device at temperatures higher than 60 C (140  Switch off the unit and remove the batteries during the extended periods of non-operation. ...

  • Page 34: Troubleshooting

    8. TROUBLESHOOTING  The scope does not turn on Check whether the batteries are installed properly. Check the charge of the batteries. Replace if they are weak. Do not mix old batteries with new ones.  The target does not appear in focus Bring the target to the center of the image.

  • Page 35: Warranty

     Condensation accumulates on the parts In order to avoid misting of the eyepiece lens at cold use the special protective cover.  Black dots on the screen These are some blemishes in the image intensifier, which do not affect the performance or reliability of a night vision device.
  • Page 36 Postage, insurance and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of $25.00 to cover handling and return shipping. __________________________________________...

  • Page 37: Customer Support

    CUSTOMER SUPPORT Should you experience any difficulties with your Newcon Optik product, please, consult this manual first. If the problem remains, contact our customer support department at +1(416) 663-6963 or toll free at 1-877-368- 6666 (North America only). Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time.

  • Page 38: Acceptance Certificate

    ACCEPTANCE CERTIFICATE Image Intensifier Tube serial number: _____________________________________________ Minimum Measured Resolution, lines/mm Photocathode sensitivity, integral, A/lm Light gain 35000 Date of production: _____________________________________________ Quality Inspector’s signature: _____________________________________________ __________________________________________...
  • Page 39 Unit serial number: _____________________________________________ The unit complies with all technical specifications and has passed the inspection. Date of production: _____________________________________________ Quality Inspector’s signature: _____________________________________________ Quality Assurance Seal __________________________________________...
  • Page 40 NEWCON OPTIK 2010 Printed in Canada __________________________________________...
