Summary of Contents for Newcon Optik NVS 4

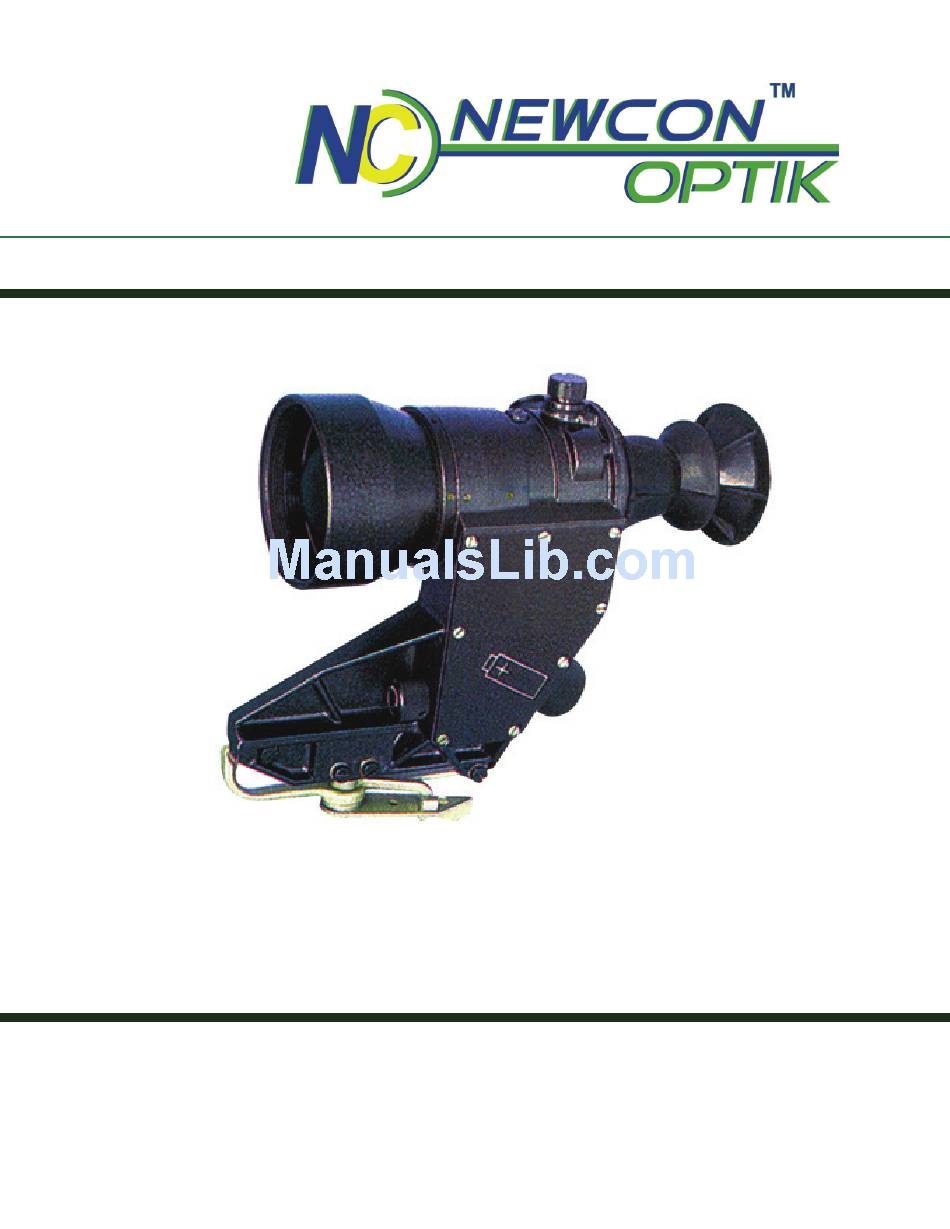

- Page 1 Operation Manual NIGHT VISION WEAPON SCOPE NVS 4 105 Sparks Ave., Toronto, ON, M2H 2S5, Canada...
-
Page 2: Important Information
IMPORTANT INFORMATION Read prior to activation You have just purchased a complicated electronic device. To operate it properly, please read this manual carefully. Here are some common precautions that must be noted. • NEVER disassemble the unit. This device contains high voltage, which may be hazardous to your health! •... -
Page 3: Table Of Contents
Table of contents OVERVIEW............1 DELIVERY SET..........3 SPECIFICATIONS .........4 DESIGN ............5 OPERATION INSTRUCTIONS.....7 MAINTENANCE..........10 STORAGE ............11 TROUBLESHOOTING ........12 WARRANTY..........14 CUSTOMER SUPPORT.......15 ACCEPTANCE CERTIFICATE ....16... -
Page 4: Overview
1. OVERVIEW The night vision NVS 4 is aiming optical-electronic weapon scope, intended for shooting gun with the side mount at night time or dark conditions. The unit utilizes a generation 2+ or better image intensifier tube, which amplifies available moonlight, starlight or man- made light. - Page 5 Precautions NVS 4 is a sophisticated precise optical instrument equipped with electronics. Therefore, it should be handled with due care. • Keep your device away from direct sunlight, impacts, dust, moisture, and sudden changes of temperatures. • Do not touch the optical surfaces with fingers. Doing so may damage the anti-reflection coating.
-
Page 6: Delivery Set
2. DELIVERY SET NVS 4 is supplied with the following components: Quantity NVS 4 unit Wrench Soft case Napkin Manual Warranty registration card *Exact delivery set and accessories included are subject to the terms of specific contract. -
Page 7: Specifications
3. SPECIFICATIONS NVS4 NVS4/5x Typical range starlight, m Image Intensifier tube Magnification, x Field of view under eye relief 40 mm, deg Exit pupil diameter, Mount East European East European Battery АА, 1pc АА, 1pc Supply voltage, V Continuous operation 10 -30, depends on 10-30, depends on time under standard... -
Page 8: Design
4. DESIGN Figure 1. 2 – Lens 3 – Fitting part 4 – Scope housing 5 – Clip 6 – Eye-shield 8 – Battery compartment cover 9 – Lead 10 – Scope housing cover 11 – Washer 12 – Stop screw 13 - Latch 14 –... - Page 9 Figure 2. 1 – Lens cup with 7 – Switch brightness filter 18 – Vertical adjustment 19 – Cover of blow-out fitting screw 20 – Rubber gasket 21 – Horizontal adjustment screw...
-
Page 10: Operation Instructions
5. OPERATION INSTRUCTIONS The scope is mounted on a weapon by means of clamp, which consists of bracket 16 (Fig.1, 2), lock screw 2, latch 13, lock lever 14, handle 15 and washer 11. Mount the scope on a weapon in the following order: pull the handle 15;... - Page 11 remove the cover 8 and insert the battery as shown on the cover of scope; screw up the cover 8; turn on the switch 7. In 3-4 seconds the eyepiece field of view should begin to gleam with yellow-green light and red aiming reticle; adjust the optimal contrast of aiming reticule by means of hand wheel 17;...
- Page 12 Note: If zeroing range is different, the value of click changes proportionally, for example: at range 50 m - 1.5 cm; at range 200 m - 6.0 cm. Example: On the Fig.3 the mean point of impact is located above the aiming point by 15 cm and at the left by 20 cm. To shift the mean point of impact to target centre one should turn the vertical adjustment screw by 15/3 = 5 clicks down and the horizontal adjustment screw by 20/3 = 7 clicks to the right.
-
Page 13: Maintenance
6. MAINTENANCE The device should be kept clean avoiding dust and dirt. The outer surfaces of the optical parts should be clean always. WARNING: It is prohibited: to disassemble the scope; to switch on the scope without protective cap and light filter;... -
Page 14: Storage
7. STORAGE The scope must be prevented against mechanical damages. The scope is to be stored in a heated room. Ambient temperature must be within the limits from 5 to 35°C. Relative humidity must not exceed 85%. It is recommended to keep the scope in its caring case without a battery inserted. -
Page 15: Troubleshooting
8. TROUBLESHOOTING The device does not work. Check that the battery is installed properly. Check the charge of the batteries. Replace if it is weak. The image is degraded and blurred. Clean the lens with napkin. If the inner optics suffers from extended humidity send the scope to the manufacturer for drying and sealing. - Page 16 Condensation accumulates on the parts. It is O.K. to use the unit in cold. However, when the unit is brought from the cold into a warm environment, it has to warm up for up to 2 hours (not minutes!). Only then it is allowed to turn it ON again.
-
Page 17: Warranty
Postage, insurance, and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America, please, include a cheque or money order payable to NEWCON OPTIK for the amount of $15.00 to cover handling and return shipping. -
Page 18: Customer Support
Standard Time. At no time should equipment be sent back to Newcon without following the instructions of our technical support department. NEWCON OPTIK accepts no responsibility for unauthorized returns. To locate NEWCON Authorized Dealer call: Tel: (416) 663-6963 Fax: (416) 663-9065 Email: newconsales@newcon-optik.com... -
Page 19: Acceptance Certificate
11. ACCEPTANCE CERTIFICATE NIGHT VISION DEVICE NVS 4 Serial number: _________________________________ Complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector: __________________________________ Quality Assurance Se... - Page 20 NEWCON OPTIK ™ 2010 Printed in Canada...
