Newcon Optik NVS 22-2XT Operation Manual

Night vision riflescope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
NIGHT VISION RIFLESCOPE
NVS 22-2XT
105 Sparks Ave., Toronto, ON M2H 2S5, Canada

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVS 22-2XT and is the answer not in the manual?

Questions and answers

Related Manuals for Newcon Optik NVS 22-2XT

Summary of Contents for Newcon Optik NVS 22-2XT

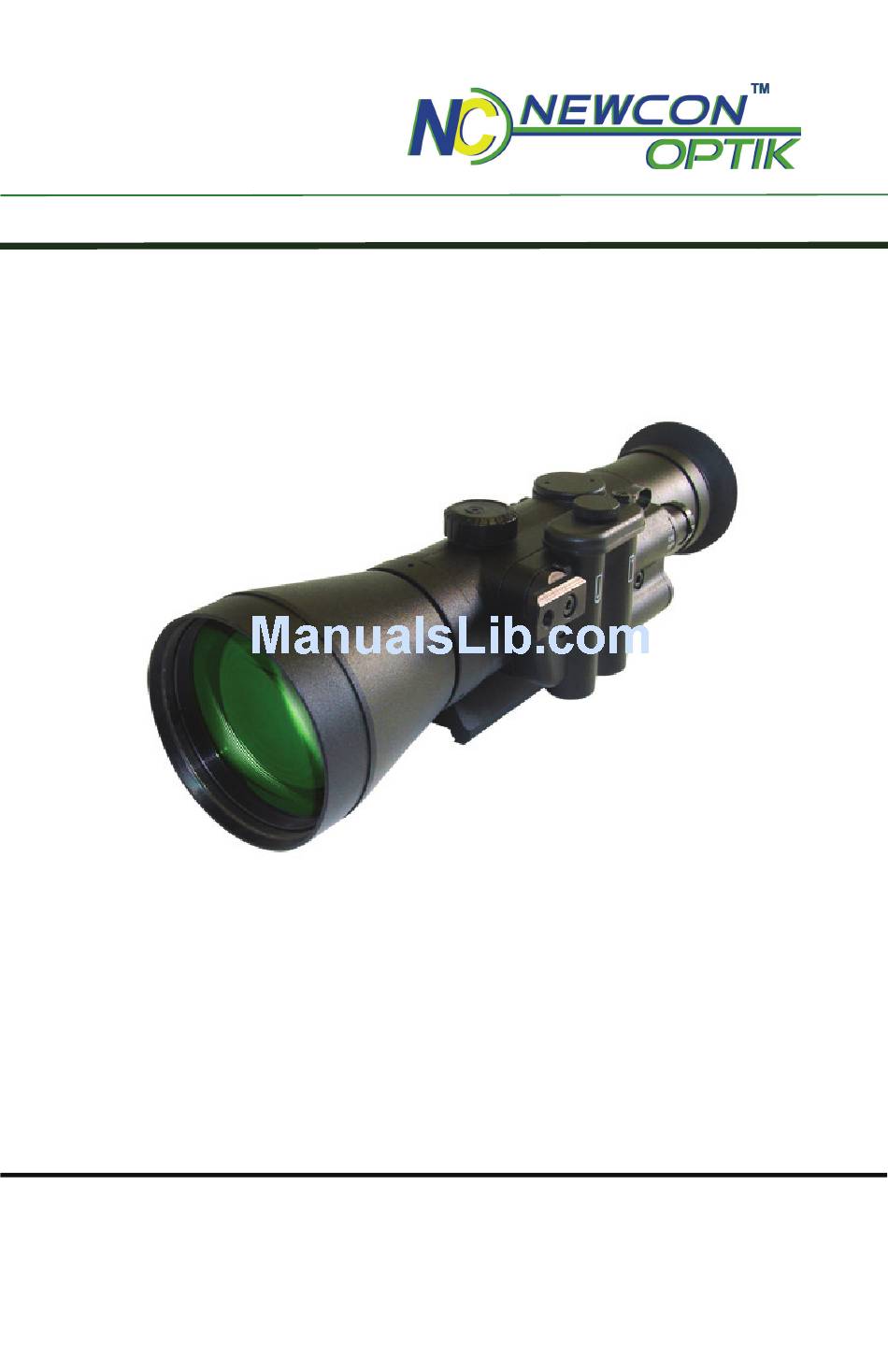

  • Page 1 Operation Manual NIGHT VISION RIFLESCOPE NVS 22-2XT 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...
  • Page 2 IMPORTANT INFORMATION Read prior to activation. You have purchased a sophisticated electronic device. To operate it properly, please read this manual fully. Ignoring operation procedures described in this manual will void your warranty. NEVER Disassemble the unit. Device contains a source of high voltage, which may be hazardous to your health! Aim active unit towards intense light sources (i.e.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BRIEF DESCRIPTION............2 1.1. Overview.................2 1.2. Key features of NVS 22-2XT .........2 DESIGN of NVS 22-2XT............3 SPECIFICATIONS ..............4 DELIVERY SET ..............5 OPERATION INSTRUCTIONS..........5 5.1. Battery installation ............5 5.2. Testing NVS 22-2XT in the daytime ......6 5.3. Testing NVS 22-2XT at night.........6 5.4.

  • Page 4: Brief Description

    1. BRIEF DESCRIPTION 1.1. Overview NVS 22-2XT is a night vision attachment to a daytime weapon scope designed for precise aiming in darkness. The device is equipped with a high-quality electro-optical image intensifier tube that amplifies light in the visible and IR spectrum providing for up to a 400-700 m effective observation range at low light.

  • Page 5: Design Of Nvs 22-2Xt

    2. DESIGN of NVS 22-2XT Fig .1 1 – Device body 6 – Objective lens cap 2 – Objective lens 7 –On/Off switch 3 – Eyepiece 8 – Focus adjustment knob 4 – Rubber eyepiece guard 9 – Weaver mount 5 –...

  • Page 6: Specifications

    3. SPECIFICATIONS Optical Magnification, x Field of view, degrees Day Scope magnification, x : Acceptable 1-20 Recommended Focus length, mm F-number Focus range 20 m to infinity Image intensifier tube Type 18mm MCP Gain, min 25,000 Resolution, lp/mm 54-64 (optional) Infrared illuminator Type IR diode...

  • Page 7: Delivery Set

    4. DELIVERY SET NVS 22-2XT is supplied with in the following set: - Device 1 pc. - Objective lens cap 1 pc. - Rubber eyepiece guard 1 pc. - Picatinny rail mount 1 pc. - Operator’s manual (this document) 1 pc. - Warranty card 1 pc.

  • Page 8: Testing Nvs 22-2Xt In The Daytime

    5.2. Testing NVS 22-2XT in the daytime Daytime mode of NVS 22-2XT was designed for testing purposes only. Image may be fuzzy. To test the device in the daylight: 1. Turn switch 7 (Fig.1) into ON position. 2. Direct the device at an object within 10-20 m from the viewer. 3.

  • Page 9: Installation On A Rifle

    6. INSTALLATION ON A RIFLE 1) Loosen slightly the Clamp screw 11 (Fig. 1) of the adapter rail. 2) Place the NVS-22-2XT onto the Picatinny rail of the fire arm before objective of daytime scope at the minimal distance from it. 3) Tighten the fixing Clamp screws 11 (Fig.
  • Page 10 daytime riflescope. Thus, it is recommended to estimate if adjustment is required for a night vision sight in combination with daytime riflescope by bore sighting daytime riflescope with and without night vision attachment. Value of the required adjustment should be noted in clicks of the riflescope and shall be used each time when nigh vision sight is being used.

  • Page 11: Storage And Maintenance

    7. STORAGE AND MAINTENANCE Warning If NVS 22-2XT has been kept for a long time at temperature lower than - 40°C (-40°F), then prior to using the device must be warmed up at an ambient temperature of -10°C (14°F) to +40°C (104°F) with relative humidity below 80%.

  • Page 12: Troubleshooting

    8. TROUBLESHOOTING 8.1. The scope does not turn on Check whether the batteries are installed properly. Check the charge of the batteries. Replace if they are weak. Do not mix old batteries with new ones. 8.2. The target does not appear in focus. Bring the target to the center of the image.

  • Page 13: Warranty

    Postage, insurance and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America please include a cheque or money order payable to NEWCON OPTIK for the amount of $25.00 to cover handling and return shipping.

  • Page 14: Customer Support

    CUSTOMER SUPPORT Should you experience any difficulties with your Newcon Optik product, please, consult this manual first. If the problem remains, contact our customer support department at +1(416) 663-6963 or toll free at 1-877-368-6666 (North America only). Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time.

  • Page 15: Acceptance Certificate

    ACCEPTANCE CERTIFICATE NVS 22-2XT unit serial number: _________________________________ Image Intensifier Tube serial number: ____________________ Minimum Measured Resolution, lines/mm Photocathode sensitivity, integral, μA/lm Light amplification 25,000 The unit complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector: __________________________________ Quality Assurance Seal...
  • Page 16 NEWCON OPTIK™ 2010 Printed in Canada...
