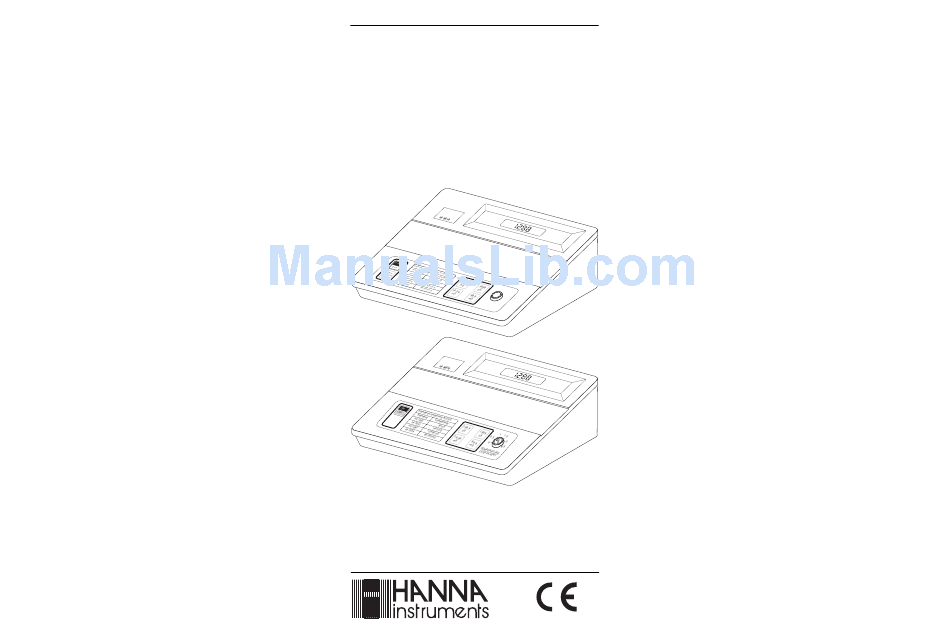

- Page 1 Instruction Manual HI 8819 - HI 8820 Bench Conductivity Meters These Instruments are in h t t p : / / w w w . h a n n a i n s t . c o m Compliance with the CE Directives...
-
Page 2: Table Of Contents
Dear Customer, Thank you for choosing a Hanna Instruments Product. Please read this instruction manual carefully before using the instru- ment. This manual will provide you with all the necessary information for the correct use of the instrument, as well as a precise idea of its versatility in a wide range of applications. -
Page 3: Preliminary Examination
PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION PRELIMINARY EXAMINATION Remove the instrument from the packing material and examine it to make sure that no damage has occurred during shipping. If there is any damage, notify your Dealer. Each meter comes supplied with a conductivity probe (HI7685 for HI8819 or HI7687 for HI8820), a voltage adapter, a dust cover and an instruction manual. -
Page 4: Keyboard And Rear Panel
KEYBOARD & REAR PANEL KEYBOARD & REAR PANEL KEYBOARD & REAR PANEL KEYBOARD & REAR PANEL KEYBOARD & REAR PANEL KEYBOARD: ON/OFF To switch the instrument ON or OFF COND/TEMP To select the display of conductivity readings or tem- perature settings for compensation (for HI8819 only) To select the range 0.0 to 199.9µS/cm 199.9 µS 1999 µS... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS HI8819 Range 0.0 to 199.9 µS/cm 0 to 1999 µS/cm 0.00 to 19.99 mS/cm 0.0 to 99.9 mS/cm Resolution 0.1 µS/cm; 1 µS/cm 0.01 mS/cm; 0.1 mS/cm Accuracy ±1% Full Scale excluding probe error Typical EMC ±1% Full Scale Deviation Calibration... -
Page 6: Conductivity Measurements
CONDUCTIVITY MEASUREMENTS CONDUCTIVITY MEASUREMENTS CONDUCTIVITY MEASUREMENTS CONDUCTIVITY MEASUREMENTS CONDUCTIVITY MEASUREMENTS Make sure that the instrument has been calibrated before taking conductivity measurements (see page 8 for calibration procedure). Connect the probe to the back of the meter and switch the instrument on by pressing the ON/OFF key. - Page 7 FOR HI8820: • • • • • Immerse the probe in the solution submerging the holes of the sleeve (0.5 cm below). Tap the probe lightly on the bottom of the recipient to remove any air bubbles which may have being trapped inside the sleeve.
-
Page 8: Calibration
CALIBRATION CALIBRATION CALIBRATION CALIBRATION CALIBRATION INITIAL PREPARATION If you are measuring in the mS ranges, calibrate the meter using HI7030 (or HI8030) conductivity solution (12.88 mS @ 25°C) or HI7034 (or HI8034) conductivity solution (80 mS @ 25°C). Choose a solution with a conductivity value close to the solution to be measured. - Page 9 • Press the COND/TEMP key to display conduc- tivity readings and select the appropriate conductivity range e.g. "19.99 mS" for HI7030/HI8030, "99.9 mS" for HI7034/HI8034, "1999µS" for HI7031/HI8031, "199.9 µS" for HI7033/HI8033. • Using a small screwdriver adjust the trimmer on the rear panel until the display shows the conductivity reading at the tempera- ture of the solution noted earlier (see the conductivity vs.
- Page 10 • Press the COND/TEMP key to display conduc- tivity. • The display should read the conductivity of the calibrating solution at the reference tempera- ture. E.g. using HI7030/HI8030 with a so- lution at 18°C, the reading will be "12.88 mS". PROCEDURE FOR HI8820: •...
- Page 11 • Using a small screwdriver adjust the trimmer on the rear panel until the display shows the conductivity reading at 25°C (77°F), e.g.: "12.88 mS" for HI7030/HI8030, "80.00 mS" for HI7034/HI8034, "1413 µS" for HI7031/HI8031, "84 µS" for HI7033/HI8033. CONDUCTIVITY DC POWER ELECTRODE 12V to 20V...
-
Page 12: Conductivity Vs. Temperature Chart
CONDUCTIVITY VERSUS CONDUCTIVITY VERSUS CONDUCTIVITY VERSUS CONDUCTIVITY VERSUS CONDUCTIVITY VERSUS TEMPERATURE CHART TEMPERATURE CHART TEMPERATURE CHART TEMPERATURE CHART TEMPERATURE CHART The conductivity of an aqueous solution is the measure of its ability to carry an electrical current by means of ionic motion. The conductivity invariably increases with increasing temperature. -
Page 13: Temperature Compensation
TEMPERATURE COMPENSATION TEMPERATURE COMPENSATION TEMPERATURE COMPENSATION TEMPERATURE COMPENSATION TEMPERATURE COMPENSATION The conductivity of an aqueous solution is the measure of its ability to carry an electrical current by means of ionic motion. The conductivity invariably increases with increasing temperature. It is affected by the type and number of ions in the solution and by the viscosity of the solution itself. -
Page 14: Coefficient Of A Solution (For Hi8820 Only)
DETERMINATION DETERMINATION DETERMINATION OF OF OF OF OF THE TEMPERATURE TEMPERATURE DETERMINATION DETERMINATION THE TEMPERATURE TEMPERATURE TEMPERATURE COEFFICIENT OF A SOLUTION COEFFICIENT OF A SOLUTION COEFFICIENT OF A SOLUTION COEFFICIENT OF A SOLUTION COEFFICIENT OF A SOLUTION (for HI8820 only) (for HI8820 only) (for HI8820 only) (for HI8820 only) -
Page 15: Probe Maintenance
PROBE MAINTENANCE PROBE MAINTENANCE PROBE MAINTENANCE PROBE MAINTENANCE PROBE MAINTENANCE Rinse the probe with tap water after every series of measurements. If a more thorough cleaning is required, remove the glass sleeve and clean the probe with a cloth or a nonabra- sive detergent. -
Page 16: Accessories
ACCESSORIES ACCESSORIES ACCESSORIES ACCESSORIES ACCESSORIES CONDUCTIVITY BUFFER SOLUTIONS: HI 7030L 12880 µS/cm (µmho/cm), 460mL HI 7030M 12880 µS/cm (µmho/cm), 230mL HI 7031L 1413 µS/cm (µmho/cm), 460mL HI 7031M 1413 µS/cm (µmho/cm), 230mL HI 7033L 84 µS/cm (µmho/cm), 460 mL HI 7033M 84 µS/cm (µmho/cm), 230 mL HI 7034L 80000 µS/cm (µmho/cm), 460mL... - Page 17 OTHER ACCESSORIES: CHECKTEMPC Electronic thermometer (range: -50.0 to 150.0°C) HI710005 Voltage adapter from 115VAC to 12VDC HI710006 Voltage adapter from 230VAC to 12VDC HI 731326 Small screwdrivers, length 90 mm, for calibration purposes (20 pcs) HI 76405 Electrode holder MANBNCONR2 Instruction Manual...
-
Page 18: Warranty
If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization number from the Customer Service department and then send it with shipping costs prepaid. -
Page 19: Ce Declaration Of Conformity
CE DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY Recommendations for Users Before using these products, make sure that they are entirely suitable for the environ- ment in which they are used. Operation of these instruments in residential area could cause unacceptable interfer- ences to radio and TV equipments, requiring the operator to take all necessary steps to correct interferences. - Page 20 h t t p : / / w w w . h a n n a i n s t . c o m...
