Summary of Contents for Fusion MS-CD80

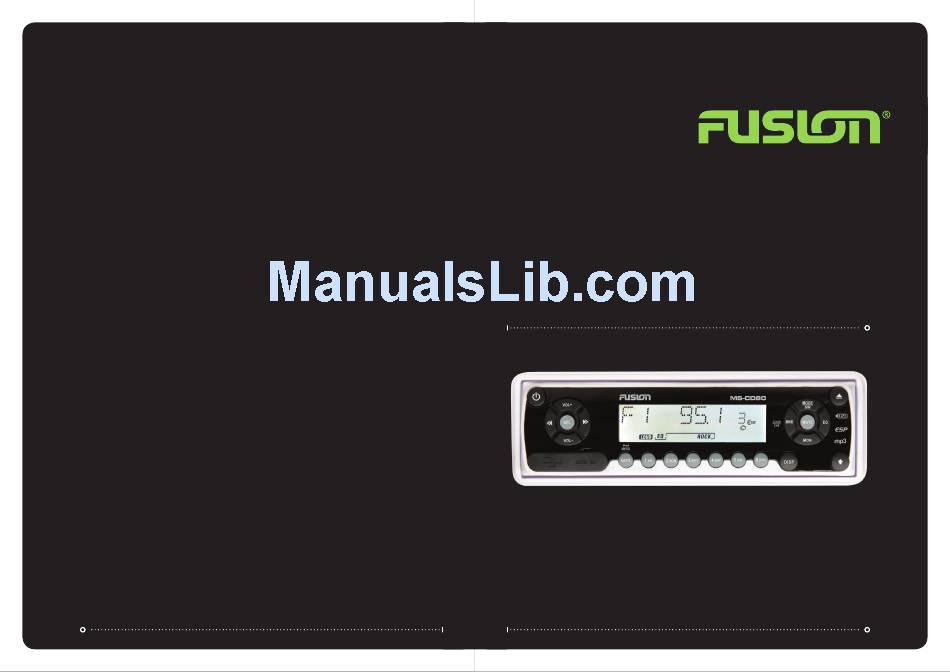

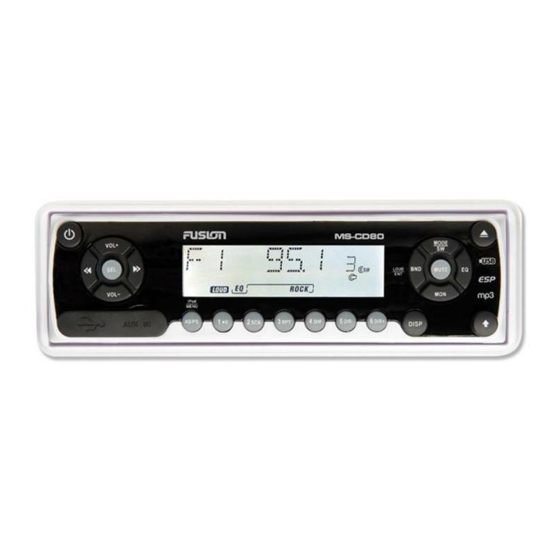

- Page 1 User / Installation Manual Marine CD/MP3 Receiver MS-CD80 Specifications and design are subject to change without notice.
- Page 2 Contents Installation Headunit Installation Installation Button Description General Operation Menu Selection Function Before installing the unit, please remove the two transit screws. Radio Operation Note: When installing this unit on a vessel, use the two pieces of plastic film (supplied with the unit) to seal the two holes after removing the screws.
- Page 3 Wiring Connections Removing The Unit Press the open button on the face plate Insert the supplied keys into the grooves in the housing until they click (as shown) Pull the levers towards you and slowly remove the unit from the cage. Detaching Front Panel To detach the front panel press the open button Then press the release button on the front underside edge and slide the face toward you.
-
Page 4: General Operation
Button Description General Operation POWER ON/OFF Press the power ON/OFF button (16) FRONT PANEL RELEASE Press OPEN button (8) to open the front panel SOUND ADJUSTMENT Press the SEL/MENU button (17) repeatedly to cycle the audio mode through bass, treble, balance and fader modes. Press the VOLUME UP button or VOLUME DOWN button to adjust the selected mode. -
Page 5: Radio Operation
Menu Selection Function If there is no CD loaded press OPEN Button (8) and gently insert the disc until you feel some resistance. The CD will be drawn Press and hold SEL button (17) to enter Menu Select Mode. Press the VOLUME UP button (18) or the VOLUME DOWN button into the unit and playback will begin. -
Page 6: Ipod Operation
® MP3/WMA Operation iPod Operation TRACK SELECTION Press the iPod Menu button (23) three times to enter the There are three options to connect an iPod to the unit: search mode. Press the (19) and (21) buttons to Press the button (19) to skip to the previous track or Option 1: Via the MS–IP15L accessory cable (available separately). -
Page 7: Usb Operation
USB Operation HANDLING COMPACT DISCS (CD/CD-R/CD-RW) - Avoid touching the surface - Avoid exposing the disc to direct sunlight Connect the USB device via the USB interface (22) and playback of MP3/WMA files will start automatically. USB mode can be - Ensure the disc is clean selected with the MODE button (11). -
Page 8: Technical Specifications
............................................PUBLISHED BY FUSION ELECTRONICS LIMITED: YOU CAN HELP PROTECT THE ENVIRONMENT! © Copyright 2010 by FUSION Electronics Limited. Please remember to respect the local regulations: All rights reserved. Specifications and design are subject to change Hand in the non-working electrical equipment without notice.
