Related Manuals for Fusion RV-CD800
Summary of Contents for Fusion RV-CD800

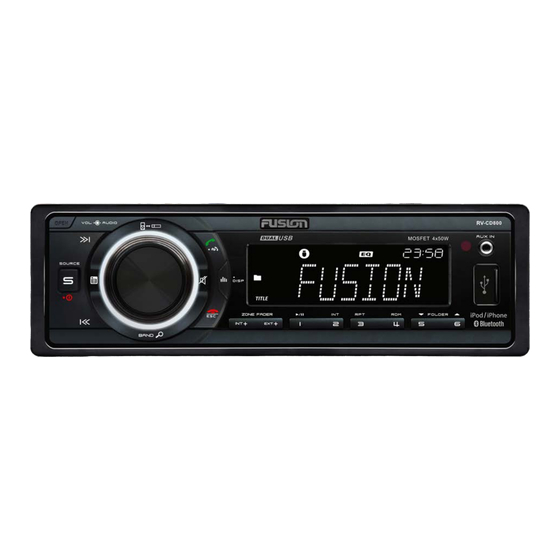

- Page 1 INSTRUCTION MANUAL MODEL: RV-CD800 A2DP Bluetooth AM/FM/CD/MP3/WMA/SD/USB/AUXx2/iPod/iPhone Receiver...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, • This device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Precautions And Maintenance
PRECAUTIONS & QUICK START GUIDE MAINTENANCE TUNER REGION SETTING GENERAL When the unit is powered up for the first time (or the battery is disconnected or runs flat), you will need to set • When cleaning the vehicle, do not get water or cleaning your tuner region. -
Page 4: Dashboard Installa Tion
2. Search for a new Bluetooth device on the phone. 3. Select “FUSION” on the Bluetooth device list. 4. Some devices may require you to enter a PIN. If prompted, enter “0000” for the PIN. Please see P12 for detailed Bluetooth operation. -
Page 5: Connecting The System
CONNECTING THE SYSTEM WIRING DIAGRAM LEFT REAR AUX IN ANTENNA RIGHT JACK REAR USB CONNECTION CABLE CONNECTOR... -
Page 6: Basic Operations
REMOVAL/RE-A TT ACHMENT BASIC OPERA TIONS OF THE FACE 1. Press the Panel OPEN button. O PEN AUDIO RV CD800 AUX-IN 2. After flipping down the front panel, push it to the right (A), SOURCE then draw the left of the front panel outwards (B) 3. -
Page 7: Numeric Buttons
Press & hold for 2 seconds to transfer the call from the 11. BAND/SEARCH RV-CD800 back to the Mobile Phone. a) In Tuner mode, press this button to cycle through Bands: 7. NUMERIC BUTTONS FM1, FM2, FM3, AM1 (MW1) or AM2 (MW2). -
Page 8: Audio Functions
MID CFQ Select the Midrange centre frequency: 0.5K / 1.0K / 1.5K / 2.5KHz All Audio functions are easily accessable on the RV-CD800. Adjust the Treble level between -7 to +7. AUDIO MENU. Press the ENCODER VOLUME CONTROL TRE CFQ Select the Treble centre frequency: 10.0K /... -
Page 9: System Menu
SYSTEM MENU LOC* ON/OFF (Local/Distance). Use this setting to Auto Seek to strong Press (MENU) to access the System Menu and press local stations (Local) or all stations regardless of their again to select the item be adjusted, then rotate Encoder strength (Distance). -
Page 10: Rds Operation
3. To search for a radio station, press either the TUNE UP or (PTY) SELECT PROGRAM TYPE DOWN buttons to search for the next station higher than Before tuning to RDS stations, you can select program type and let the current station frequency or lower than the current frequency. the unit search only for programs of the selected category. -
Page 11: Ipod/Iphone Opera Tion
iPod/iPhone OPERA TION BASIC SEARCH – PLAYLIST/ARTIST/ALBUM/SONG on iPod/iPhone This unit is equipped with iPod/iPhone control which Press BAND to browse the iPod/iPhone menu. allows you to directly control and charge iPod/iPhones using the units controls – with display of iPod/iPhone track Then rotate the Encoder Volume Control clockwise to and information appearing on the unit’s LCD display. - Page 12 Please ensure the iPod/iPhone cable is connected correctly to the Note on some phones, you may need to select “SET AS USB port and only use an original iPod / iPhone data sync cable. AUTHORISED” or similar to ensure the RV-CD800 will automatically pair on subsequent usage.
-
Page 13: Basic Operation
PAIRED NOTIFICATION DISPLAY NOTE When the Bluetooth device is paired with the RV-CD800, the ID3 type information – Title, Artist, Album etc is not available on Bluetooth Icon will appear on the LCD display. This should occur the LCD screen in Bluetooth A2DP mode. - Page 14 the LCD along with the elapsed call time. button for 2 seconds. [TRANSFER] will be displayed on the LCD display. 4. The ANSWER button will also slowly flash to indicate Press the ANSWER you are in a call. button again for 2 seconds to transfer the call back to the head unit.
-
Page 15: Usb Operation
Source then remove the USB device. stereo Aux In cable (not supplied) located on the face or at SD CARD OPERATION the rear of the RV-CD800, then press the Source button to select AUX1 or AUX2 mode. Insert the SD Card... - Page 16 ADDITIONAL MEDIA 3) to repeat all tracks on the storage media. [RPT ALL] is displayed. PLAYBACK FUNCTIONS • If you press RPT again, the current track will be repeated (CD/USB/SD) only [RPT TRK] will be displayed PLAY OPTIONS • Pressing RPT again repeats all tracks in the current folder MP3/WMA File or Folder Search only [RPT FLD] is displayed •...
-
Page 17: Display Function
TROUBLESHOOTING DISPLAY FUNCTION During playback, pressing the DISP button will automatically Before going through the check list, please check the wiring cycle through the following information on the file being connection diagram. If problems persist, please consult played on the LCD display: your Car Audio dealer. -
Page 18: How To Reset The Unit
HOW TO RESET THE UNIT Display shows ERR-5 • Communication error. The USB/SD device could be Using the Reset button, you can reset the unit to its default damaged or corrupted. Please re-format (Fat32 only) or try settings. a different device. •... -
Page 19: Product Specifications
RDS PROGRAM TYPES PRODUCT & DESCRIPTIONS SPECIFICA TIONS NEWS News services Power Supply 12V DC (11-16V), Negative Ground Fuse AFFAIRS Politics & current affairs Suitable Speaker 4 – 8Ω INFO Special information programs Impedance SPORT Sports Power output MOSFET 50W MAX x 4 channels EDUCATE Education and advanced training RMS output... -
Page 20: Supported File Formats
NOTE: Product specifications are subject to change without prior notice. other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, inc and any use of such marks by FUSION ELECTRONICS is under license. Other trademarks and trade names are those of their respective owners. - Page 21 • The product was used with or connected to an accessory not supplied by FUSION or fit for use with FUSION product, or used in a manner other than its intended use. If a problem develops during the limited warranty period, the consumer should take the following step-by-step procedure: The consumer shall return the product to the place of purchase for repair or replacement processing.
