Fusion RV-CD850BT Instruction Manual

A2dp bluetooth am/fm/cd/mp3/wma/sd/usb/auxx2/ipod/iphone receiver
Hide thumbs

Advertisement

Table of Contents

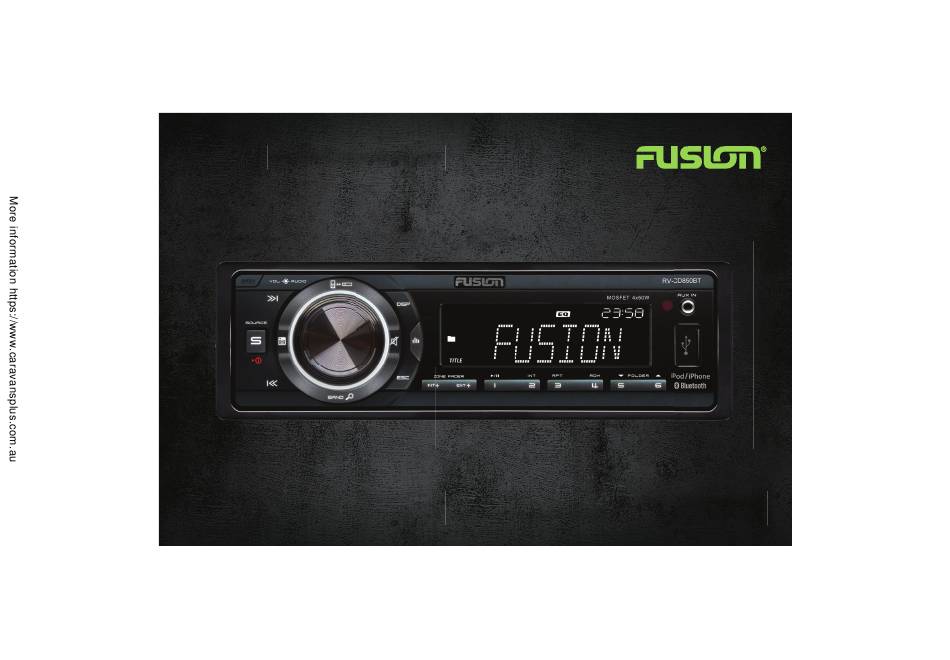

INSTRUCTION MANUAL
MODEL: RV-CD850BT
A2DP Bluetooth AM/FM/CD/MP3/WMA/SD/USB/AUXx2/iPod/iPhone Receiver
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RV-CD850BT and is the answer not in the manual?

Questions and answers

Related Manuals for Fusion RV-CD850BT

Summary of Contents for Fusion RV-CD850BT

  • Page 1 INSTRUCTION MANUAL MODEL: RV-CD850BT A2DP Bluetooth AM/FM/CD/MP3/WMA/SD/USB/AUXx2/iPod/iPhone Receiver...

  • Page 2: Table Of Contents

    CONTENTS Precautions & Maintenance Quick Start Guide Installation Connecting the System Removal / Re-Attachment of the Face Basic Operations Audio Functions System Menu Radio Operation RDS Operation iPod / iPhone Operation Bluetooth A2DP For the latest news on supported iPod / iPhone models visit www.FUSIONENTERTAINMENT.com Media Playback (CD/USB/SD/Aux In) Additional Media Playback Functions FCC COMPLIANCE STATEMENT...

  • Page 3: Quick Start Guide P3

    PRECAUTIONS & QUICK START GUIDE MAINTENANCE TUNER REGION SETTING GENERAL need to set your tuner region. • When cleaning the vehicle, do not get water or cleaning 1. When you press the power button to turn on the unit, • Do not attempt to open the unit chassis. There are no [OCEANIA] will be displayed on the LCD screen as the user servicable parts or adjustments inside.

  • Page 4: Installation P4

    1. Ensure Bluetooth is enabled on the phone to be connected to the unit. 2. Search for a new Bluetooth device on the phone. 3. Select “FUSION” on the Bluetooth device list. 4. Some devices may require you to enter a PIN. If prompted, enter “0000” for the PIN.

  • Page 5: Connecting The System P5

    CONNECTING THE SYSTEM WIRING DIAGRAM LEFT ANTENNA RIGHT JACK REAR ISO CONNECTOR WIRING DIAGRAM CONNECTOR FUNCTION/LABEL WIRE COLOUR 12V CONSTANT(+) YELLOW BLUE CONNECT TO SYSTEM CONTROL TERMINAL OF THE POWER AMP OR AUTO ANTENNA RELAY CONTROL TERMINAL (max 150mA 12VDC) ORANGE/WHITE DIMMER 12V ACCESSORIES (+)

  • Page 6: Removal / Re-Attachment Of The Face P6

    REMOVAL/RE-ATTACHMENT BASIC OPERATIONS OF THE FACE 1. Press the Panel OPEN button. OPEN AUDIO RV CD800 AUX-IN SOURCE (A), then draw the left of the front panel outwards (B) 3. To re-attach the face, please complete the above steps in ZONE FADER FOLDER reverse.
  • Page 7 11. BAND/SEARCH Track number and elapsed play Time - > File - > Album - > Title a) In Tuner mode, press this button to cycle through Bands: - > Artist. FM1, FM2, FM3, AM1 (MW1) or AM2 (MW2). b) In iPod/iPhone playback mode, press to display Album -> Title ->...

  • Page 8: Audio Functions P8

    Select the Midrange centre frequency: 0.5K / All Audio functions are easily accessable on the 1.0K / 1.5K / 2.5KHz RV-CD850BT. Adjust the Treble level between -7 to +7. AUDIO MENU. Press the ENCODER VOLUME CONTROL to access the TRE CFQ...

  • Page 9: System Menu P9

    SYSTEM MENU the top-right hand of the LCD display indicating AM or PM if the Clock is in 12H mode – see below). Press the Press (MENU) to access the System Menu and press Encloder Volume control to select “minutes” then rotate again to select the item be adjusted, then rotate Encoder the control to set.

  • Page 10: Rds Operation P10

    HOW TO STORE YOUR FAVOURITE STATIONS If the radio signal from the current station is poor, you can turn 1. Select your preferred Band. Generally you would use FM1 or on the AF (Alternate Frequency) function to let the unit search automatically for another station with a stronger signal but with AM1 to save your favourite stations (6 stations per band).

  • Page 11: Ipod / Iphone Operation P11

    iPod/iPhone OPERATION BASIC SEARCH – PLAYLIST/ARTIST/ALBUM/SONG on iPod/iPhone Press BAND to browse the iPod/iPhone menu. This unit is equipped with iPod/iPhone control which Then rotate the Encoder Volume Control clockwise to and allows you to directly control and charge iPod/iPhones press ENTER to choose one of the following selections, using the units controls –...
  • Page 12 Note on some phones, you may need to select “SET AS Please ensure the iPod/iPhone cable is connected correctly to AUTHORISED” or similar to ensure the RV-CD850BT will the USB port and only use an original iPod / iPhone data sync automatically pair on subsequent usage.
  • Page 13 PAIRED NOTIFICATION DISPLAY possible from the device. Please ensure it is not set too When the Bluetooth device is paired with the RV-CD850BT, the high to avoid distortion. Bluetooth Icon will appear on the LCD display. This should NOTE occur whenever you use the system and the paired device is in ID3 type information –...
  • Page 14 USB OPERATION MEDIA PLAYBACK (CD/USB/SD/AUX) Insert the USB Device CD PLAYBACK 1. Open the cover marked on the front panel. You can play the following format CD’s 2. Insert the USB device into the USB • Commercially Available pre-recorded CD’s socket.

  • Page 15: Additional Media Playback Functions P15

    Connect the external device to an AUX in port located on • During playback, press the INT button (Preset button 2) to the face or at the rear of the RV-CD850BT, then press the Source button to select AUX or TV mode.

  • Page 16: Optional Remote Control P16

    DISPLAY FUNCTION displayed. During playback, pressing the DISP button will automatically • If you press RPT again, the current track will be repeated only [RPT TRK] will be displayed played on the LCD display: • Pressing RPT again repeats all tracks in the current folder FOLDER NAME>...
  • Page 17 TROUBLESHOOTING Display shows ERR-5 Before going through the check list, please check the wiring connection diagram. If problems persist, please • Communication error. The USB/SD device could be consult your supplier. damaged or corrupted. Please re-format (Fat32 only) or try a different device. No power or no sound •...

  • Page 18: How To Reset The Unit P18

    HOW TO RESET THE UNIT RDS PROGRAM TYPES & DESCRIPTIONS Using the RESET button, you can reset the unit to its default settings. NEWS News services AFFAIRS Politics & current affairs • The RESET button is located on the main unit (as INFO Special information programs shown on the diagram).

  • Page 19: Register Your Product Online P20

    PRODUCT SPECIFICATIONS SUPPORTED FILE FORMATS Power Supply 12V DC (11-16V), Negative Ground Fuse MPEG1/2/2.5 Layer 2/3 WMA Version 7/8/9 Impedance Sampling frequency Power output MOSFET 50W MAX x 4 channels MPEG1 32/44.1/48 kHz RMS output 22W x 4 @ 10% THD MPEG2 16/22.05/24 kHz ≥300mV...
  • Page 20 Microsoft Corporation in the United States and/or other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. Any use of such marks by FUSION ENTERTAINMENT is under license. Other trademarks and trade names are those of their respective owners.
  • Page 21 12 MONTH LIMITED CONSUMER WARRANTY INFORMATION FOLLOWS:...
  • Page 22 Some states in America do not allow the exclusion or limitation of consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives • FUSION neither assumes nor authorises any authorised service centre or any person or entity to assume for it any other obligation or liability beyond that which is expressly provided for in this warranty.
  • Page 23 Fusion or its authorised dealer. • Repair work conducted by Fusion after this warranty has expired or if this warranty for any other reason this Fusion warranty does not apply is subject to Fusion’s normal service policies and Fusion charges for labour and material may apply.
  • Page 24 Le numéro de série du produit ou le code de date de l’accessoire a été effacé, dégradé ou altéré. • Le produit était utilisé avec ou connecté à un accessoire non fourni par FUSION ou incompatible avec le produit FUSION, ou a été utilisé pour un usage autre que celui pour lequel il est prévu.
  • Page 25 • El producto se utilizó con o se conectó a un accesorio no suministrado por FUSION o no adecuado para utilizar con productos FUSION, o se utilizó de una forma diferente a su uso indicado.
  • Page 26 Il numero di serie del prodotto o il codice di data di un accessorio sia stato rimosso, reso illeggibile o alterato. • Il prodotto sia stato usato insieme a o in collegamento con un accessorio non fornito da FUSION o inadatto all’uso con il prodotto FUSION, o sia stato utilizzato per scopi diversi da quello a cui è destinato.
  • Page 27 Die Seriennummer des Produkts oder der Zubehörcode wurde entfernt, ausgestrichen oder abgeändert. • Das Produkt wurde mit einem Zubehörteil verwendet oder an ein Zubehörteil angeschlossen, das nicht von FUSION geliefert bzw. für die Verwendung mit dem Produkt von FUSION nicht geeignet war oder unsachgemäß verwendet wurde.
  • Page 28 В РАМКАХ ЗАКОНА, ФИРМА FUSION НЕ НЕСЕТ ОТВЕСТВЕННОСТИ ЗА ПОБОЧНЫЕ ИЛИ КОСЕННЫЕ УБЫТКИ ИЛИ ПОТЕРЮ ОЖИДАЕМОЙ ВЫГОДЫ, ВСЛЕДСТВИЕ ИСПОЛЬЗОВАНИЯ ИЛИ НЕВОЗМОЖНОСТИ ИСПОЛЬЗОВАНИЯ ПРОДУКТА. FUSION не берет на себя и не уполномачивает никакие центры обслуживания, лица или субъекты брать на себя от ее имени никакие другие обязательсва •...
  • Page 29 Het productserienummer of de datumcode op het accessoire is verwijderd, onleesbaar gemaakt of veranderd. • Het product is gebruikt met of aangesloten op een accessoire dat niet door Fusion is meegeleverd of niet geschikt is voor gebruik met het Fusion-product, of gebruikt op een wijze anders dan het bedoelde gebruik.
  • Page 30 NOTES ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
  • Page 31 NOTES ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
  • Page 32 WWW.FUSIONENTERTAINMENT.COM FUSION Electronics New Zealand 09 369 2900 FUSION Electronics Australia 1300 736 012 FUSION Electronics Europe +44 0 238 052 4145 FUSION Electronics USA 623 580 9000 190-02108-00 +64 9 369 2900...
