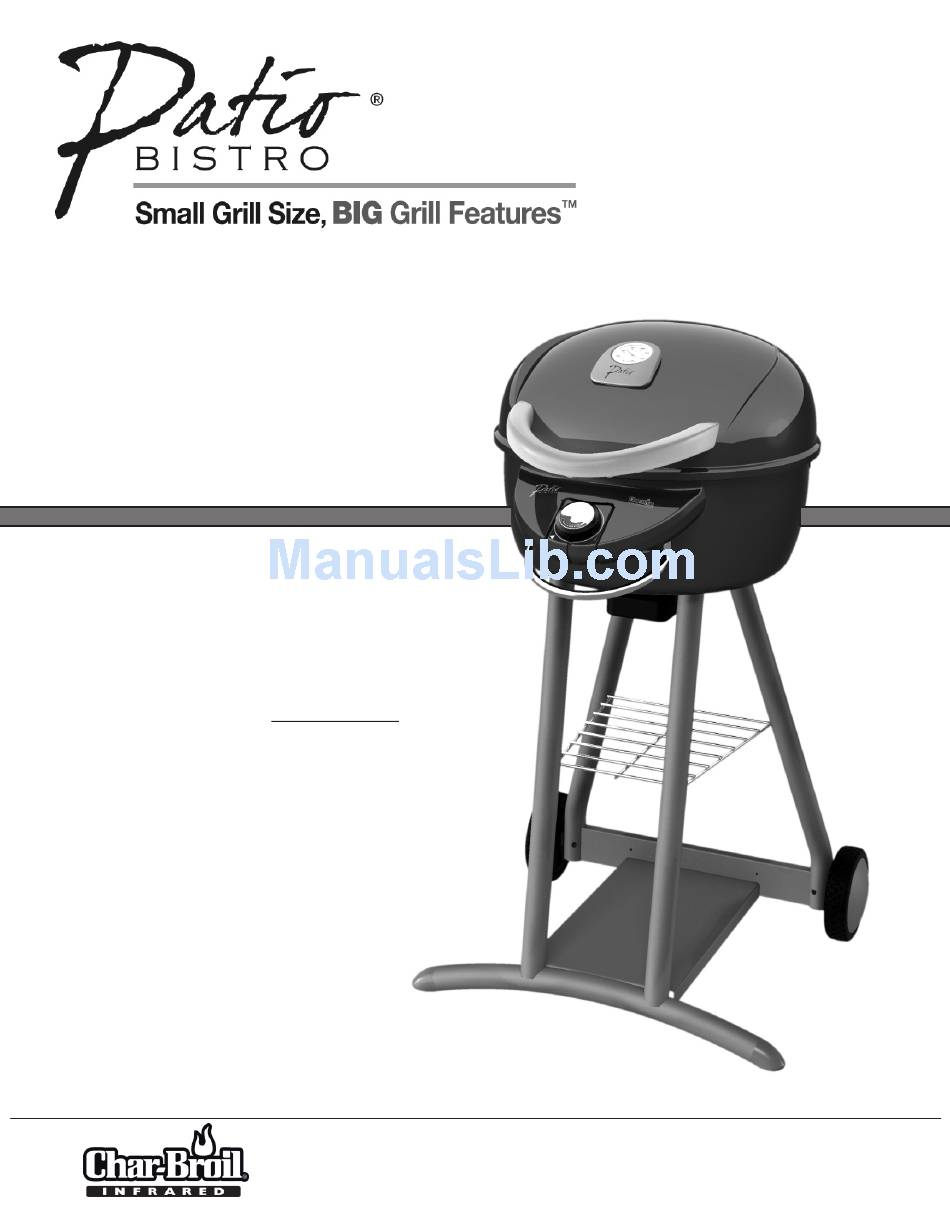

- Page 1 assembly guide Model Numbers: 08601559-16 10601578-16 10601578-A1 10601514-16 10601610 10601611 Estimated time required for assembly: 1 Hour ELECTRIC (English) 42804564 • 1/12/10...
- Page 2 A, B, C, Assembly: ASSEMBLY GUIDE CAUTION: For your safety, before operating, Read Product Guide & Outdoor Cooking Guide provided with this grill. *SAFETY First….. Grill components may have sharp edges. Be careful when handling grill parts during assembly. We suggest that you wear a sturdy pair of leather gloves while handling the grill parts. BEFORE You begin assembly of your grill….
-
Page 3: Grill Parts Diagram
Grill Parts Diagram ASSEMBLY GUIDE Key Qty Description Key Qty Description Key Qty Description Hardware Pack Grease Tray Grill Lid Hubcap Assembly Guide, English Lower Body Warming Rack — Assembly Guide, Spanish, optional Controller — Assembly Guide, French, optional Axle Element Assembly —... -
Page 4: Grill Cart Assembly
GRILL CART Assembly ASSEMBLY GUIDE Fasteners Part – Cart Base – Front Leg Set – Rear Leg Set – Wheels Wheel Retaining 1/4x20-1/2" 3/8-16 Nut – Hubcap screw Clip (qty 2) (qty 4) (qty 2) Step 1 – Attach Front Leg Set (A2) to the Cart Base (A1) using 2 1/4-20 screws. - Page 5 GRILL CART Assembly ASSEMBLY GUIDE Fasteners Part – Cart Bracket Wire Shelf – – Leg End Cap 1/4x20-2" #10x3/8" 1/4-20 Nut 1/4-20 Nut screw screw (qty 2) (qty 2) (qty 2) Step 3 - Carefully turn the Cart Assembly over and allow it to rest on the tops of the leg assemblies.
- Page 6 GRILL BODY Assembly ASSEMBLY GUIDE Fasteners Part Qty. – Grill Base – Wind Shield 1/4-20x3/4" Fiber Washer 10-24x3/8" 1/4-20 Nut 10-24 Nut screw Hinge (qty 5) (qty 2) (qty 10) – Grill Lid (qty 3) screw (qty 2) Step 3 - Step 1 Attach the Windshield (B2) to the Grill Base (B1) by ASSEMBLY...
- Page 7 GRILL FINAL Assembly ASSEMBLY GUIDE NOTE: The Cooking Grate may Part Qty. have sharp edges. Be very careful Cooking Grate C1 – when handling the Cooking Grate. C2 – Warming Rack You should wear gloves when C3 – Grease tray handling the Cooking Grate.
- Page 8 GRILL FINAL Assembly ASSEMBLY GUIDE Part Qty. Fasteners C4 – Controller Fiber Washer 10-24x3/8" C5 – Lid Handle screw (qty 2) (qty 2) NOTE: Be sure to press the controller into the receptacle as far as it will go. Route the controller cord BEHIND the towel bar as shown.
