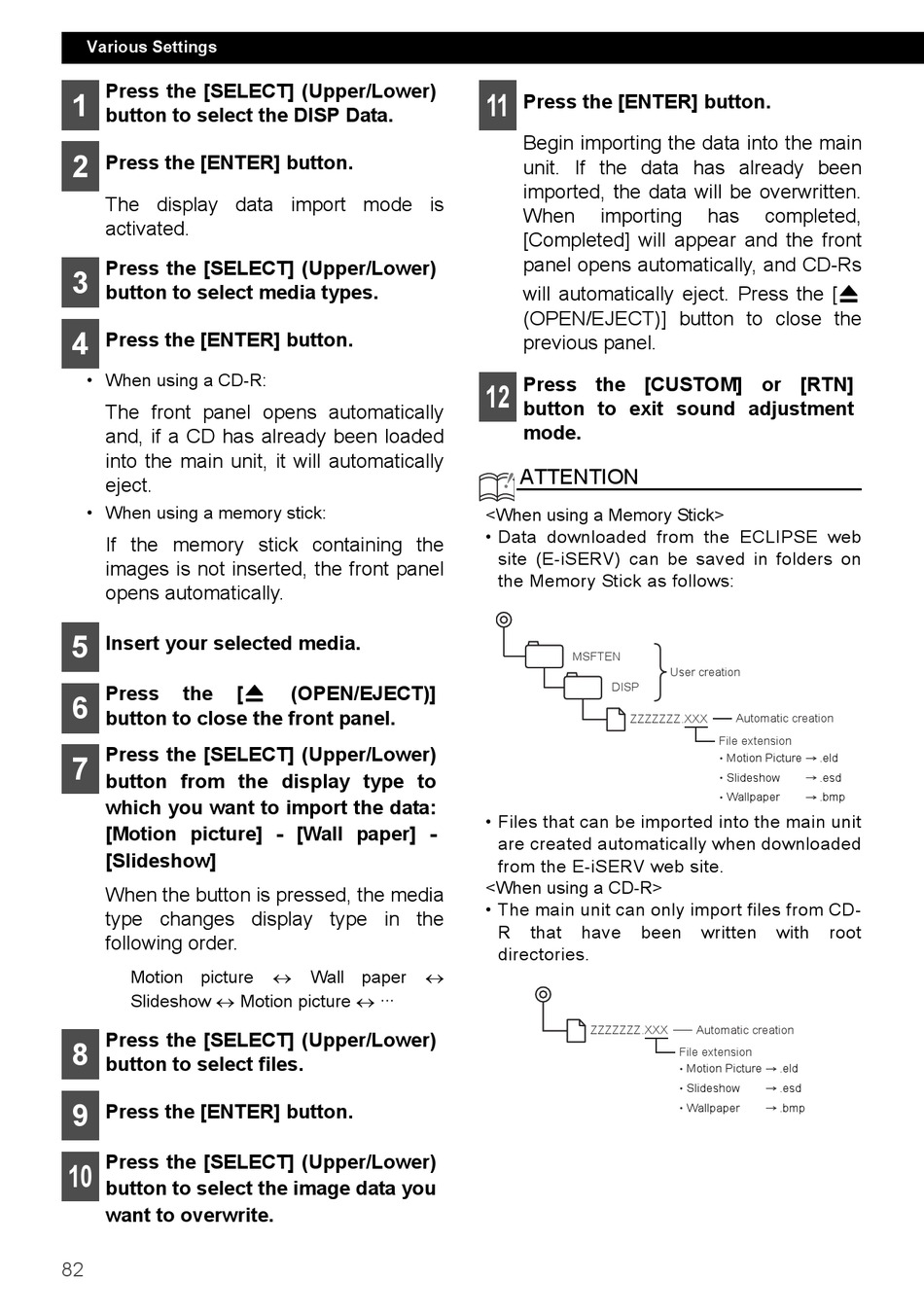

Eclipse CD7000 Owner's Manual page 82

Various Settings
Press the [SELECT] (Upper/Lower)
1
button to select the DISP Data.
2
Press the [ENTER] button.
The display data import mode is
activated.
Press the [SELECT] (Upper/Lower)
3
button to select media types.
4
Press the [ENTER] button.
• When using a CD-R:
The front panel opens automatically
and, if a CD has already been loaded
into the main unit, it will automatically
eject.
• When using a memory stick:
If the memory stick containing the
images is not inserted, the front panel
opens automatically.
5
Insert your selected media.
Press the
6
button to close the front panel.
Press the [SELECT] (Upper/Lower)
7
button from the display type to
which you want to import the data:
[Motion picture] - [Wall paper] -
[Slideshow]
When the button is pressed, the media
type changes display type in the
following order.
Motion picture
Slideshow l Motion picture l MMM
Press the [SELECT] (Upper/Lower)
8
button to select files.
9
Press the [ENTER] button.
Press the [SELECT] (Upper/Lower)
10
button to select the image data you
want to overwrite.
82
[ (OPEN/EJECT)]
l
Wall paper
11
Press the [ENTER] button.
Begin importing the data into the main
unit. If the data has already been
imported, the data will be overwritten.
When
[Completed] will appear and the front
panel opens automatically, and CD-Rs
will automatically eject. Press the [
(OPEN/EJECT)] button to close the
previous panel.
Press the [CUSTOM] or [RTN]
12
button to exit sound adjustment
mode.
ATTENTION
<When using a Memory Stick>
• Data downloaded from the ECLIPSE web
site (E-iSERV) can be saved in folders on
the Memory Stick as follows:
MSFTEN
• Files that can be imported into the main unit
are created automatically when downloaded
from the E-iSERV web site.
<When using a CD-R>
• The main unit can only import files from CD-
R that have
directories.
l
ZZZZZZZ.XXX
importing has completed,
User creation
DISP
ZZZZZZZ.XXX Automatic creation
File extension
Motion Picture
Slideshow
Wallpaper
been written
Automatic creation
File extension
Motion Picture
Slideshow
Wallpaper
.eld
.esd
.bmp
with root
.eld
.esd
.bmp
