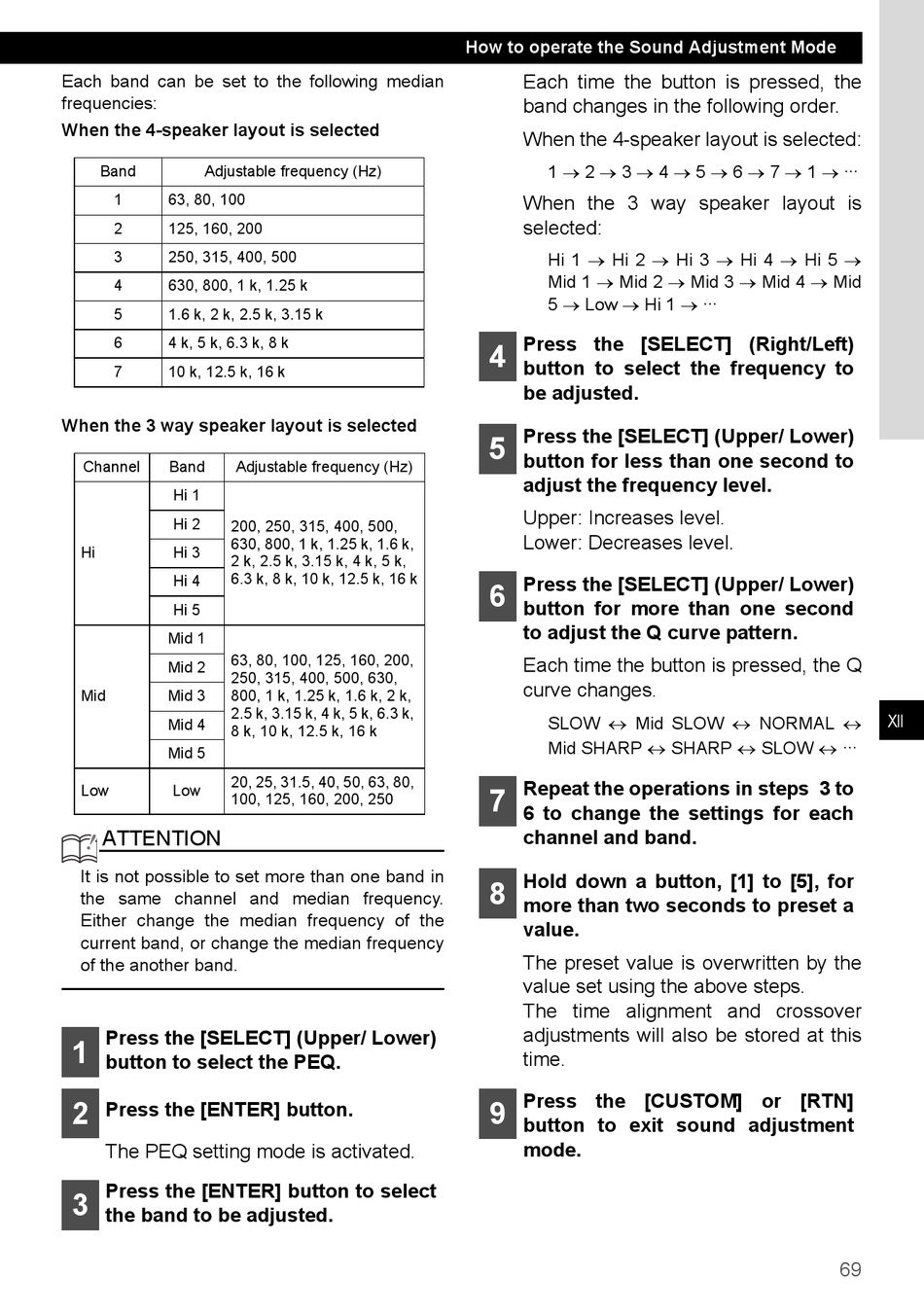

Eclipse CD7000 Owner's Manual page 69

Each band can be set to the following median
frequencies:
When the 4-speaker layout is selected
Band Adjustable frequency (Hz)
1 63, 80, 100
2 125, 160, 200
3 250, 315, 400, 500
4 630, 800, 1 k, 1.25 k
5 1.6 k, 2 k, 2.5 k, 3.15 k
6 4 k, 5 k, 6.3 k, 8 k
7 10 k, 12.5 k, 16 k
When the 3 way speaker layout is selected
Channel Band Adjustable frequency (Hz)
Hi 1
Hi 2
200, 250, 315, 400, 500,
630, 800, 1 k, 1.25 k, 1.6 k,
Hi Hi 3
2 k, 2.5 k, 3.15 k, 4 k, 5 k,
6.3 k, 8 k, 10 k, 12.5 k, 16 k
Hi 4
Hi 5
Mid 1
63, 80, 100, 125, 160, 200,
Mid 2
250, 315, 400, 500, 630,
Mid Mid 3 800, 1 k, 1.25 k, 1.6 k, 2 k,
2.5 k, 3.15 k, 4 k, 5 k, 6.3 k,
Mid 4
8 k, 10 k, 12.5 k, 16 k
Mid 5
20, 25, 31.5, 40, 50, 63, 80,
Low Low
100, 125, 160, 200, 250
ATTENTION
It is not possible to set more than one band in
the same channel and median frequency.
Either change the median frequency of the
current band, or change the median frequency
of the another band.
Press the [SELECT] (Upper/ Lower)
1
button to select the PEQ.
2
Press the [ENTER] button.
The PEQ setting mode is activated.
Press the [ENTER] button to select
3
the band to be adjusted.
How to operate the Sound Adjustment Mode
Each time the button is pressed, the
band changes in the following order.
When the 4-speaker layout is selected:
1 o 2 o 3 o 4 o 5 o 6 o 7 o 1 o MMM
When the 3 way speaker layout is
selected:
Hi 1 o Hi 2 o Hi 3 o Hi 4 o Hi 5 o
Mid 1 o Mid 2 o Mid 3 o Mid 4 o Mid
5 o Low o Hi 1 o MMM
Press the [SELECT] (Right/Left)
4
button to select the frequency to
be adjusted.
Press the [SELECT] (Upper/ Lower)
5
button for less than one second to
adjust the frequency level.
Upper: Increases level.
Lower: Decreases level.
Press the [SELECT] (Upper/ Lower)
6
button for more than one second
to adjust the Q curve pattern.
Each time the button is pressed, the Q
curve changes.
SLOW l Mid SLOW l NORMAL l
Mid SHARP l SHARP l SLOW l MMM
Repeat the operations in steps 3 to
7
6 to change the settings for each
channel and band.
Hold down a button, [1] to [5], for
8
more than two seconds to preset a
value.
The preset value is overwritten by the
value set using the above steps.
The time alignment and crossover
adjustments will also be stored at this
time.
Press the [CUSTOM] or [RTN]
9
button to exit sound adjustment
mode.
