PLUS4900-UM.qxp
4/30/09
2:52 PM
Page 1
R
Automotive Security
Owner's
Manual
Model: PLUS-4900
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference; and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications
to this equipment. Such modifications could void the user's authority to operate the equipment.
For Technical Assistance, please call (800) 638-3600,
or visit www.magnadyne.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLUS-4900 and is the answer not in the manual?

Questions and answers

Related Manuals for Carbine PLUS-4900

Summary of Contents for Carbine PLUS-4900

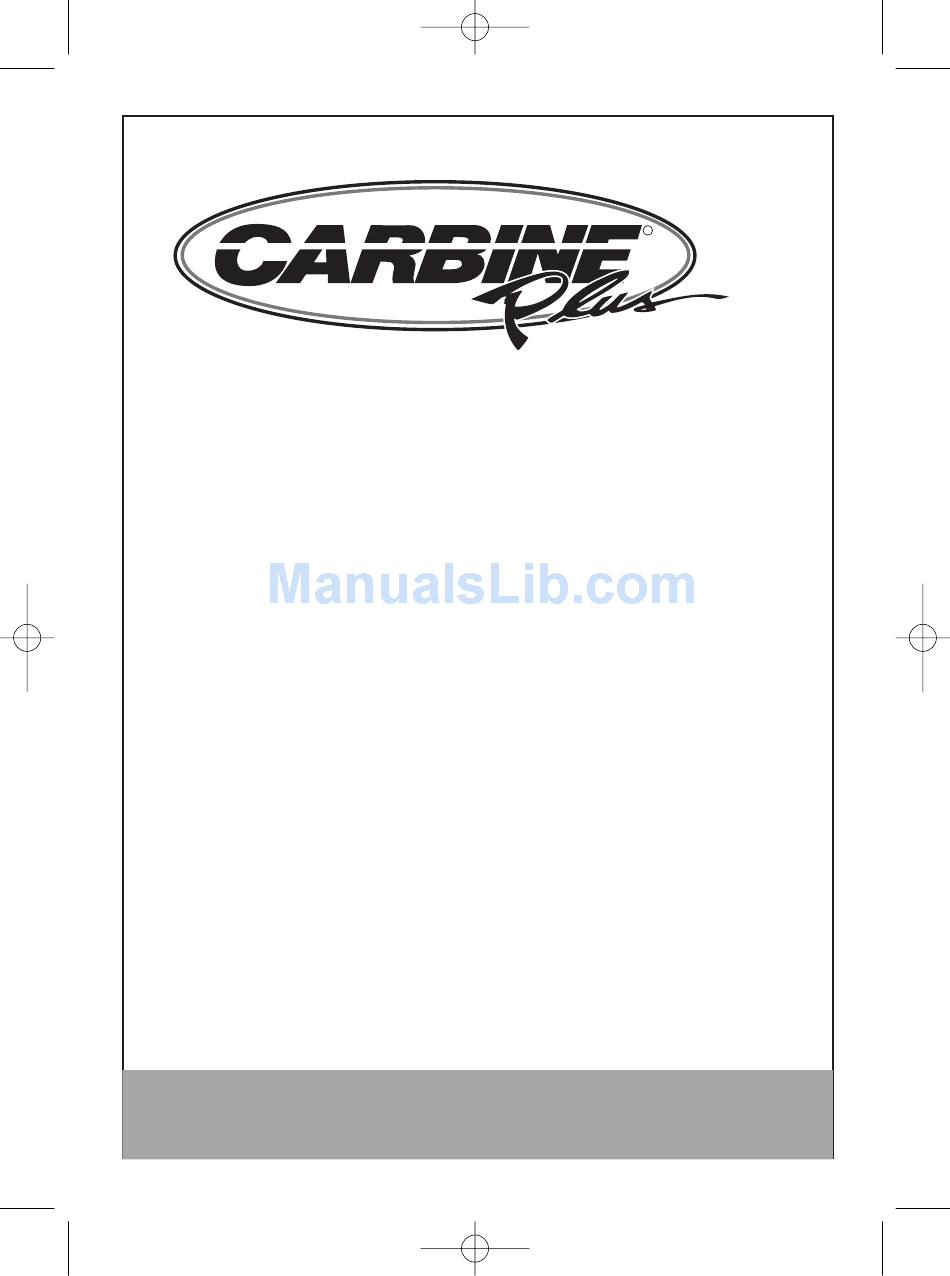

  • Page 1 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 1 Automotive Security Owner’s Manual Model: PLUS-4900 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
  • Page 2 The information enclosed will provide a ready reference of the operation and maintenance of your new Carbine security system. Please take a moment to read through this manual fully before use. Contents Transmitter Operation .............1-2 Alarm Status Indicators .
  • Page 3 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 3 Transmitter Operation Transmitter Button System Function Remark Lock Doors & Arms System Press and Release Arm and Delete the Internal Shock Press Twice within 3 Seconds Sensor and Optional External Sensor Arm System with Press within 3 Seconds Hidden Alarm Function System Must be Armed for 30...
  • Page 4 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 4 LED Indicator Function System is Disarmed Slow Flashing System is Armed Fast Flashing System in Automatic Arming 1 Flash Every 5 Seconds System in Valet Mode (When Ignition Key Off) 2 Flashes - Pause Zone 2, Trigger on Trunk/Hook 3 Flashes - Pause Zone 3, Trigger on Door Switch...
  • Page 5 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 5 System Characteristics Parking Siren/Horn Doors Starter Dome Light Light Disabled 1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking (Option) 2 or 3 Turns on for 2. Disarming 2 or 4 Chirps Unlocking Flashes 30 Seconds...
  • Page 6 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 6 Automatic Arming Manual arming/disarming is controlling your security system via the remote transmitter. This security system is equipped with an optional Automatic Arming feature which allows the security system to arm 45 seconds after the last door is closed. Operation is as follows: 1.
  • Page 7 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 7 Disarming without a Transmitter The override procedure may be used if the remote transmitter is lost or inoperative. 1. Enter the vehicle and turn the ignition switch to “ON” position (alarm will sound). 2. Within 10 seconds push the valet switch. The alarm will stop sounding and enter disarm Mode. You can now start and operate the vehicle normally.
  • Page 8 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 8 RF Valet Mode RF valet mode provides the same functions as manual valet mode but allows you to enter and exit the valet mode using the remote transmitter. When the system is in Valet Mode, all alarm functions and remote start functions are off.
  • Page 9 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 9 Progressive Remote Vehicle Locator System Note: The remote vehicle location system is active 30 seconds after the alarm is armed. 1. Press the button to active the vehicle locator system. The horn/siren will beep 2 times and the parking lights will flash 3 times.
  • Page 10 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 10 Replacement Transmitters TRANSMITTERS DESCRIPTION MODEL # $ PRICE 1-Way Remote for the PLUS4900 Security System CA-RF49 59.95 ea. Replacement Batteries REPLACEMENT BATTERIES DESCRIPTION MODEL # $ PRICE 3 Volt Lithium Battery for the PLUS4900 CR2032 3.95 ea transmitter...
  • Page 11 PLUS4900-UM.qxp 4/30/09 2:52 PM Page 11 Replacement Parts Order Form Credit Card or Money Order Only Mail to: Magnadyne Corporation ATTN: Consumer Parts Sales (Sorry No Cash, C.O.D. or personal checks accepted) P.O. Box 5365 Call: (310) 884-7777 Fax: (310) 637-9542 Carson, CA 90749-5365 SHIP TO: (No P.O.

  • Page 12: Limited Lifetime Warranty

    PLUS4900-UM.qxp 4/30/09 2:52 PM Page 12 Limited Lifetime Warranty Magnadyne Corporation or its authorized agents will, for the life of the vehicle and to the original purchaser, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
