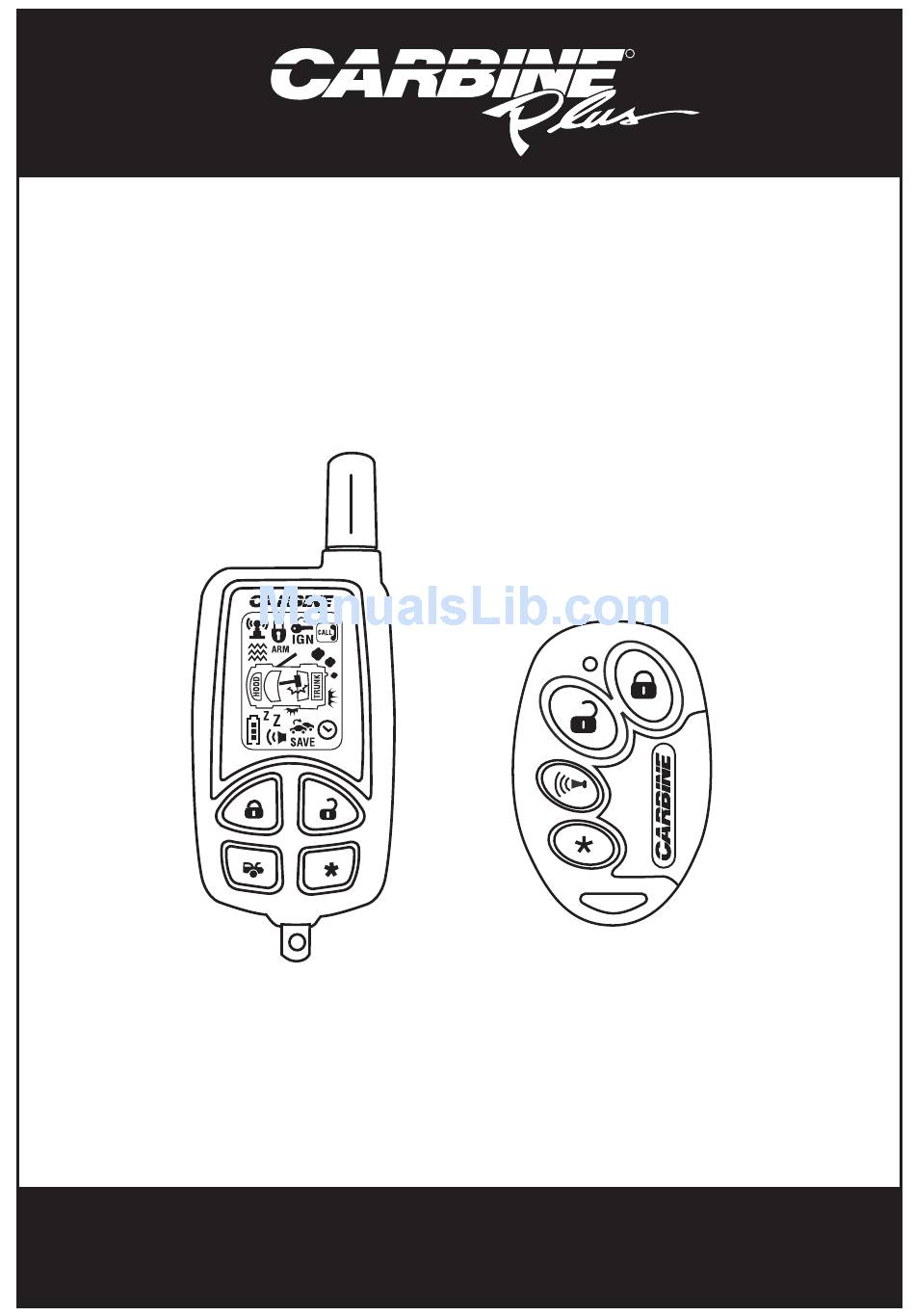

- Page 1 Vehicle Security User’s Manual Model: PLUS-6800 For Technical Assistance, please call (800) 638-3600, or visit www.magnadyne.com...
-
Page 2: Table Of Contents
Carbine security products have been designed to provide the consumer with a technologically superior product and years of trouble free operation. The information enclosed will provide a ready reference of the operation and maintenance of your new Carbine security and remote start system. -
Page 3: Remote Control Transmitters / Programming
Remote Control Transmitters The LCD screen on the 2-way remote control displays graphic icons. It provides visual information on any trigger of the sensors and around the clock surveillance of your vehicle, as well as displaying the present status of the system. 2-Way LCD Remote LCD Remote Icons Door Lock... - Page 4 LCD Remote Control Transmitter Operation Transmitter Button Unlock Doors & Disarm System Timer Control Output - Channel 4 System Function Lock Doors & Arms System Arm and Delete the 2-Stage Shock Sensor Arm System and Hidden Alarm Function Car Locator Panic Function Silent Arming/Disarming Active Anti-Car Jacking Mode...
-
Page 5: Programming The Lcd Transmitter
Programming the LCD Transmitter Vibration/Melody Mode This mode is useful when you are in a noisy place and it is difficult to hear the beep from the transmitter. While in the Vibration/Melody Mode, the transmitter will vibrate if your security system has been activated. -
Page 6: Battery Replacement
Programming the LCD Transmitter Press Buttons at the Same Time: Then Press Button Within: Battery Replacement Interference The transmission range may decrease if the system encounters interference from tall structures or stronger radio frequencies such as high-voltage power lines. LED Indicator Slow Flashing Fast Flashing On Solid... -
Page 7: Alarm Status
Parking Lights Flash 1 Flash 2 Flashes 3 Flashes 12 Flashes Constant On or Flashing Chirp Indicators Chirp 1 Chirp 2 Chirps 3 Chirps 4 Chirps 6 Chirps System Characteristics Siren/Horn 1. Arming 1 or 3 Chirps 2. Disarming 2 or 4 Chirps 3. -
Page 8: Automatic Arming
Manual Arming: Lock & Arm 1. Press the button on the transmitter. 2. The siren will chirp once and parking lights will flash once indicating that the system is now armed. The vehicle doors will lock upon arming when interfaced with the security system. System Armed Silent Arming/Disarming Press the transmitter... -
Page 9: Disarming Without A Transmitter
Automatic Arming Bypass While the system is in Disarmed Mode, press the with one chirp and the LED will turn “ON”. The security system will remain in this mode for as long as you wish. To exit this mode press the status. -
Page 10: Car Locator
Valet Mode (System in Disarm or Valet Mode) The valet switch allows you to temporarily bypass all alarm functions eliminating the need to hand your transmitter to parking attendants or garage mechanics. When the system is in Valet Mode, all alarm functions and remote start functions are bypassed. -
Page 11: Anti-Car Jacking
Anti-Car Jacking Warning: This security system has a car jacking feature. Its default setting is “OFF”. So be sure to enable this feature if you feel it is needed. Active Anti-Car Jacking 1. Press and hold the transmitter vehicle’s ignition is “ON”. The parking lights will turn on for 1.5 seconds to indicate the system has entered the Anti-Car Jacking Mode. -
Page 12: Ignition Controlled Door Locks
Dome Light Supervision The Security System has a unique feature for using your vehicle’s dome light: 1. Upon disarming the vehicles security system, the interior dome light will remain on for 30 seconds. 2. If the security system is triggered, the dome light will flash for the same duration as the horn/siren. -
Page 13: Remote Start Operations / Programming
Remote Start Your Vehicle Using the Remote Transmitter 1. Press the button twice on the transmitter. 2. The parking lights will turn on indicating the remote start has received the signal (A melody sound from your LCD transmitter and the on the LCD screen to confirm the remote start was activated.) 3. -
Page 14: Turbo Timer Mode
Turbo Timer Mode After arriving at your destination, Turbo Timer keeps the engine running for a programmable time period of 1, 3 or 5 minutes. This allows the engine’s turbo charger time to conveniently cool down after you have left the vehicle. To Activate: 1. -
Page 15: Disabling The Remote Start System
Turn Off Remote Start When the engine is running by remote start and you wish to shut it off, follow these steps: 1. While in Remote Start Mode, press the transmitter. 2. Move the optional remote start toggle switch to the “OFF” position (if installed). -
Page 16: Second System Operation
Second Carbine Security System Operation If your transmitters have been programmed to a second Carbine security system, follow the steps below. For LCD Remote Control Transmitter: Second Vehicle Operation: While the can remote control and communicate with a second vehicle security system. -
Page 17: Replacement Parts And Accessories
Replacement Parts and Accessories TRANSMITTERS BATTERIES DESCRIPTION 2-Way LCD Remote for PLUS-6800 Security System 1-Way Remote for PLUS-6800 Security System 1.5 Volt AAA Alkaline Battery commonly found in grocery stores, hardware stores, etc. CR2032 - 3 Volt Lithium Battery (1 pc.) - Page 18 Parts and Accessories Order Form Credit Card or Money Order Only (Sorry No Cash, C.O.D. or personal checks accepted) Call: (310) 884-7777 Fax: (310) 637-9542 SHIP TO: (No P.O. Boxes) LAST NAME STREET ADDRESS ADDITIONAL ADDRESS ADDITIONAL ADDRESS CITY DAY TIME PHONE NUMBER CREDIT CARD INFORMATION CREDIT CARD N0.
-
Page 19: Limited Lifetime Warranty
Limited Lifetime Warranty Magnadyne Corporation or its authorized agents will, for the life of the vehicle and to the original purchaser, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product. - Page 20 © Copyright 2006 Magnadyne Corporation PLUS-6800-UM 4-28-06 Rev. A...
