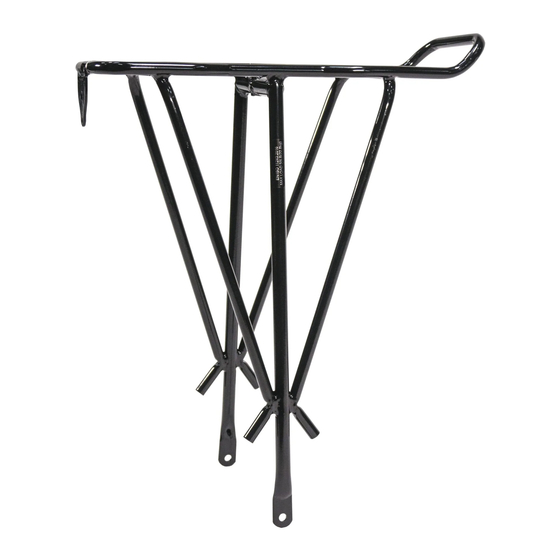

Burley Moose Rack Instructions

Moose Rack Instructions
Contents:
(2) Band Clamps
(4) M5 Socket Head Screws
(4) Washers
(2) Lock Nuts
Tools Required: 4mm Hex Key Wrench
5mm Hex Key Wrench

Installation Instructions

1. Using washers and socket head screws,
attach bottom of rack to holes in
bicycle dropouts.
2. Position top of rack parallel to the ground.
Check distance from stay mounting hole
on Moose Rack to the bicycle's seat
stays.

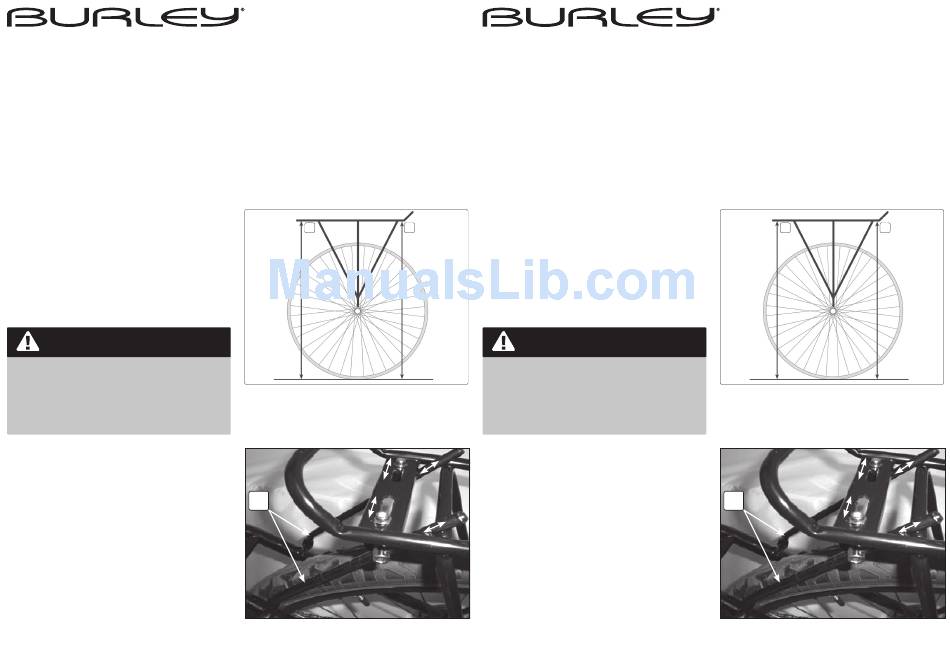

Figure 1
WArNiNg
rACK MuSt Be LeVeL. WheN PuLLiNg A
trAiLerCYCLe, A NoN-LeVeL rACK CAN
ADVerSeLY AFFeCt BiCYCLe hANDLiNg,
reSuLtiNg iN AN ACCiDeNt or
SeriouS iNJurY.
3. Adjust rack stays to fit.
Photo 1
B
A
Figure 1:
The difference between heights A & B must be less than
3/4" (19.05 mm)
R
ack
S
tayS
Photo 1
