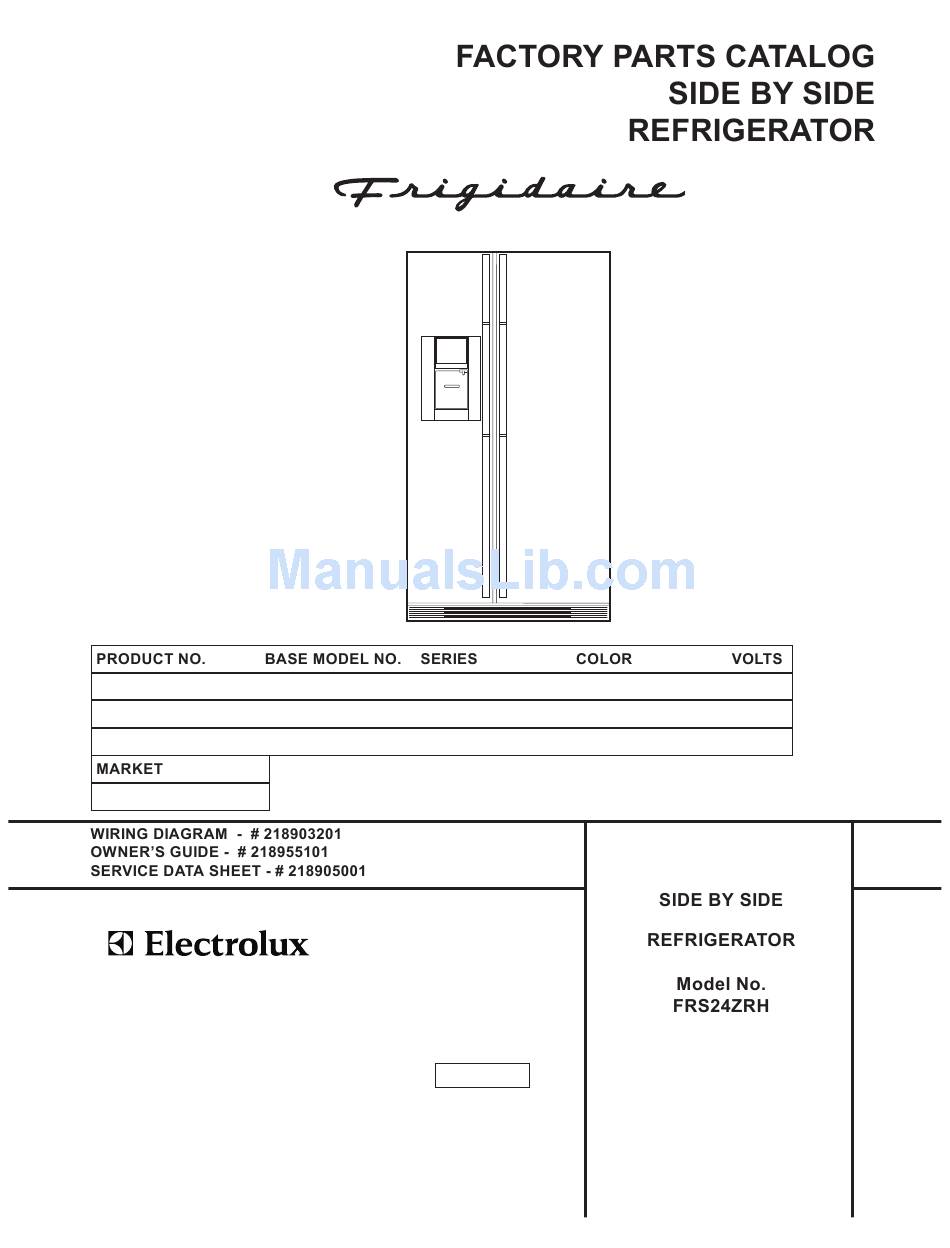

Frigidaire FRS24ZRH Factory Parts Catalog

Side by side refrigerator
Hide thumbs Also See for FRS24ZRH:
Table of Contents

Advertisement

Quick Links

FRS24ZRHB5
FRS24ZRH
FRS24ZRHD5
FRS24ZRH
FRS24ZRHW5
FRS24ZRH
North American
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
R134a
black
R134a
almond
R134a
white
Publication No.
5995349171
010131
-EN/SERVICE/KHB
357
115
115
115
©2001 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS24ZRH and is the answer not in the manual?

Questions and answers

Related Manuals for Frigidaire FRS24ZRH

Summary of Contents for Frigidaire FRS24ZRH

  • Page 1 FRS24ZRHB5 FRS24ZRH R134a black FRS24ZRHD5 FRS24ZRH R134a almond FRS24ZRHW5 FRS24ZRH R134a white North American ELECTROLUX HOME PRODUCTS NORTH AMERICA P.O. BOX 212378, Augusta, GA 30917 Publication No. 5995349171 010131 -EN/SERVICE/KHB ©2001 White Consolidated Industries, Inc. All rights reserved...

  • Page 2: Freezer Door

    Publication No. FRS24ZRH 5995349171 FREEZER DOOR 01/01...
  • Page 3 FRS24ZRH Publication No. 5995349171 FREEZER DOOR A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 215734323 A - - Gasket-frzr door,black ,magnetic 215734313 - B C Gasket-frzr door,white ,magnetic 5303288950 A B C Support-door rack,RH/LH 5303323484 A B C Support-door rack,white ,LH 5303323485 A B C...

  • Page 4: Refrigerator Door

    Publication No. FRS24ZRH 5995349171 REFRIGERATOR DOOR 01/01...
  • Page 5 FRS24ZRH Publication No. 5995349171 REFRIGERATOR DOOR A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 215734324 A - - Gasket-refr door,black ,magnetic 215734314 - B C Gasket-refr door,white ,magnetic 215390401 A B C Panel-inner door,refr 218807029 A B C Rack-door,w/end caps 5303288950 A B C...
  • Page 6 Publication No. FRS24ZRH 5995349171 CABINET 01/01...
  • Page 7 FRS24ZRH Publication No. 5995349171 CABINET A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 215637602 A B C Cover-air duct 5303209814 A B C Nut,"U" type ,8-15A ,fan mtr mtg 215637402 A B C Cover-evap coil,lower 10A* 5308009617 A B C Washer,ext tooth lock ,#10 ,grounding...
  • Page 8 Publication No. FRS24ZRH 5995349171 SHELVES 01/01...
  • Page 9 FRS24ZRH Publication No. 5995349171 SHELVES A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 5303298147 A B C Trim-basket 218298003 A B C Shelf-freezer,sliding ,wire 5304405879 A B C Shelf-freezer,fixed wire 215406139 A B C Shelf-"Spill-Safe",fixed ,(3) 218147701 A B C Cover-storage pan...
  • Page 10 Publication No. FRS24ZRH 5995349171 CONTROLS 01/01...
  • Page 11 FRS24ZRH Publication No. 5995349171 CONTROLS A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 215028605 A B C Knob-damper control 5308000010 A B C Fan Blade,red ,evaporator fan 5308000124 A B C Ring-fan orifice 5300157666 A B C Bushing-motor mtg,(2) 5304414684 A B C...
  • Page 12 Publication No. FRS24ZRH 5995349171 SYSTEM 01/01...
  • Page 13 FRS24ZRH Publication No. 5995349171 SYSTEM A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 218787900 A B C Condenser 5303208866 A B C Spacer-cond tube,black 5303289026 A B C Spacer-tube 5304406721 A B C Spacer-cond tube,round ,5/8 OD x .81"lg 5303289029 A B C Clip-cond mtg,(4)
  • Page 14 Publication No. FRS24ZRH 5995349171 DISPENSER 01/01...
  • Page 15 FRS24ZRH Publication No. 5995349171 DISPENSER A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 218976908 A B C Tube-water inlet, filter to filter valve 5308010366 A B C Tube-water inlet, 0.25 OD x 93" ,plastic 218949201 A B C Tube-water inlet, formed, plastic, dispenser 218976909 A B C...

  • Page 16: Ice Container

    Publication No. FRS24ZRH 5995349171 ICE CONTAINER 01/01...
  • Page 17 FRS24ZRH Publication No. 5995349171 ICE CONTAINER A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 5304404344 A B C Auger-ice 5304404343 A B C Cam-drive 218815300 A B C Container-ice,bucket only 5304404346 A B C Drum-ice disp 218815400 A B C Front-ice container...

  • Page 18: Ice Maker

    Publication No. FRS24ZRH 5995349171 ICE MAKER 01/01...
  • Page 19 FRS24ZRH Publication No. 5995349171 ICE MAKER A = FRS24ZRH (FRS24ZRHB5) B = FRS24ZRH (FRS24ZRHD5) C = FRS24ZRH (FRS24ZRHW5) 218976908 A B C Tube-water inlet, filter to filter valve 218949201 A B C Tube-water inlet, formed, plastic, dispenser 5308010366 A B C Tube-water inlet,0.25 OD x 93"...

  • Page 20: Wiring Schematic

    Publication No. FRS24ZRH 5995349171 WIRING SCHEMATIC 01/01...

  • Page 21: Wiring Diagram

    FRS24ZRH Publication No. 5995349171 WIRING DIAGRAM # = Fast-moving Parts 01/01 * = Non-Illustrated Parts...
