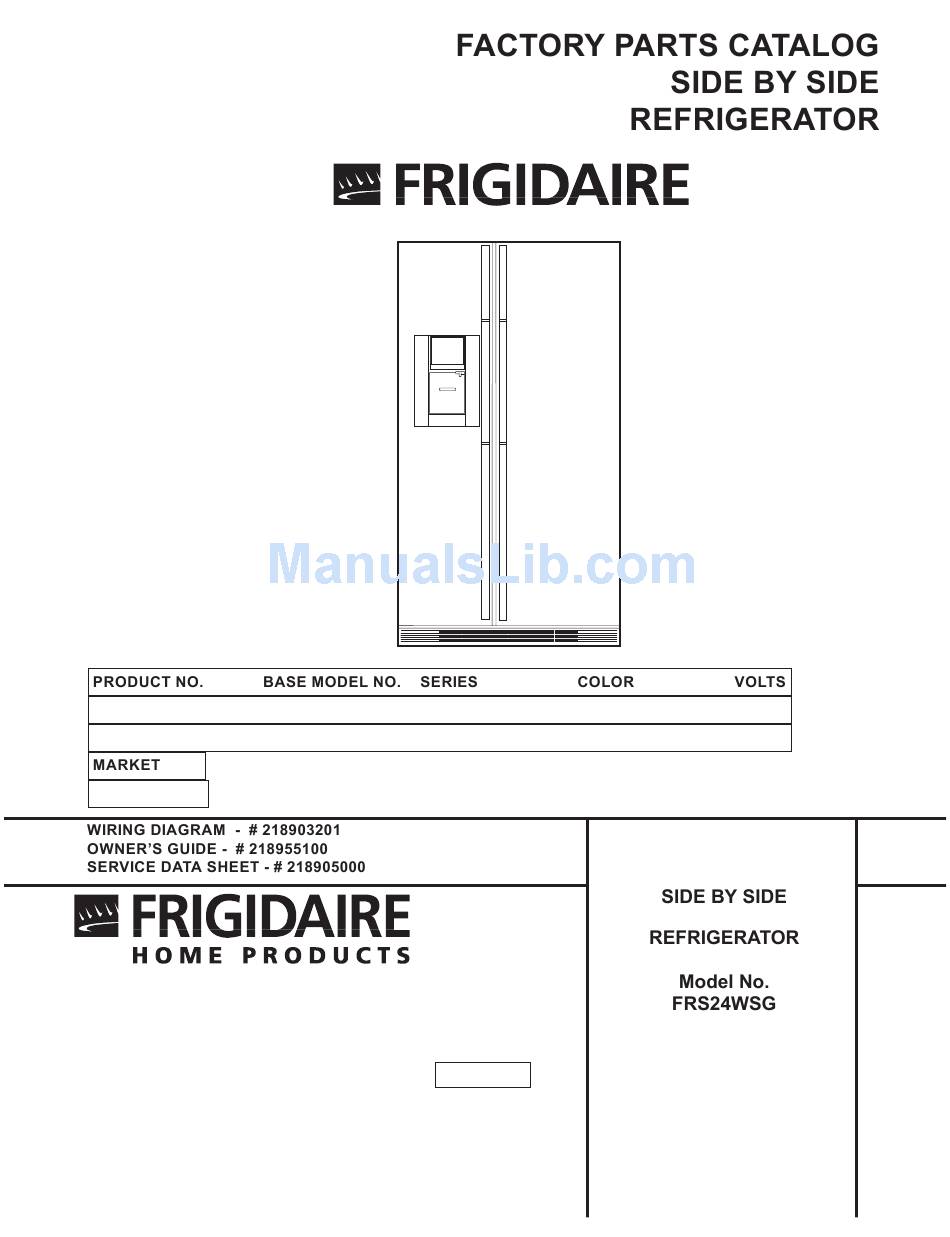

Frigidaire FRS24WSG Factory Parts Catalog

Frigidaire FRS24WSG Factory Parts Catalog

Side by side refrigerator
Hide thumbs Also See for FRS24WSG:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
FRS24WSGD6
FRS24WSG
FRS24WSGW6
FRS24WSG
North America
101 Masters Blvd.
Anderson, SC 29624
R134a
almond
R134a
white
Publication No.
5995329223
991025
-EN/SERVICE/KB
357
115
115
©1999 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS24WSG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS24WSG

Summary of Contents for Frigidaire FRS24WSG

  • Page 1 FRS24WSGD6 FRS24WSG R134a almond FRS24WSGW6 FRS24WSG R134a white North America 101 Masters Blvd. Anderson, SC 29624 Publication No. 5995329223 991025 -EN/SERVICE/KB ©1999 White Consolidated Industries, Inc. All rights reserved...

  • Page 2: Freezer Door

    Publication No. FRS24WSG 5995329223 FREEZER DOOR 10/99...
  • Page 3 FRS24WSG Publication No. 5995329223 FREEZER DOOR A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 215734313 Gasket-frzr door,white ,magnetic 5303288950 Support-door rack,RH/LH 5303323484 Support-door rack,white ,LH 5303323485 Support-door rack,white ,RH 218807004 Rack-door,w/end caps 215474025 Rack-door 218510601 Panel-inner door,frzr 5303918094 Panel-ext frzr door almond,almond, w/foam insulatn 5303918095 Panel-ext frzr door white, w/foam insulatn 5303289522...

  • Page 4: Refrigerator Door

    Publication No. FRS24WSG 5995329223 REFRIGERATOR DOOR 10/99...
  • Page 5 FRS24WSG Publication No. 5995329223 REFRIGERATOR DOOR A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 215734314 Gasket-refr door,white ,magnetic 215390401 Panel-inner door,refr 218807002 Rack-door,w/end caps 5303288950 Support-door rack,RH/LH 5303308608 Door-dairy 5303289522 Door Stop 5303917499 Panel-refr door,almond ,w/foam insulatn 5303917498 Panel-refr door,white ,w/foam insulatn 218762704 Handle-door,almond 218762701...
  • Page 6 Publication No. FRS24WSG 5995329223 CABINET 10/99...
  • Page 7 FRS24WSG Publication No. 5995329223 CABINET A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 215637602 Cover-air duct 5308009617 Washer,ext tooth lock ,#10 ,grounding 215637401 Cover-evap coil,lower 5303208309 Plug-hole,factory test 215230400 Plug-harness hole 5303289043 Support-air duct cvr,2.55" long 5303289044 Support-air duct cvr,1.83" long 5303289062 Bolt-roller adj,hex head ,5/16-24 x 7/8 215314301...
  • Page 8 Publication No. FRS24WSG 5995329223 SHELVES 10/99...
  • Page 9 FRS24WSG Publication No. 5995329223 SHELVES A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 5303298147 Trim-basket 218298003 Shelf-freezer,sliding ,wire 5303296576 Shelf-freezer,fixed wire 11A* 218159700 Spacer-shelf 215919139 Frame-refr shelf,cantilever 218147701 Cover-storage pan 5303307878 Trim-storage pan cvr,upper, w/humidity hole 5303308340 Control-humidity 218015302 Trim-storage pan cvr,snap-on ,front 218015402 Trim-storage pan cvr,snap-on ,rear 5303289500...
  • Page 10 Publication No. FRS24WSG 5995329223 CONTROLS 10/99...
  • Page 11 FRS24WSG Publication No. 5995329223 CONTROLS A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 215028605 Knob-damper control 5308000010 Fan Blade,red 5308000124 Ring-fan orifice 5300157666 Bushing-motor mtg,(2) 5303205118 Bracket-motor mtg,front 215809600 Diffuser-air 13 # 215426200 Motor-evap fan 215474201 Washer,"slinger" ,nylon ,evap fan shaft 5303205119 Bracket-motor mtg,rear 5303001179...
  • Page 12 Publication No. FRS24WSG 5995329223 SYSTEM 10/99...
  • Page 13 FRS24WSG Publication No. 5995329223 SYSTEM A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 218787900 Condenser 5303208866 Spacer-cond tube,black 5303289026 Spacer-tube 5303289029 Clip-cond mtg,(4) 218679603 Block-evap coil,styrofoam ,(2) 218944001 Drier-filter,R134a System 218959901 Wiring Harness,main 215005200 Wiring Harness,refr controls 218815101 Wiring Harness,frzr controls 218960001 Wiring Harness,machine compt 215459201...
  • Page 14 Publication No. FRS24WSG 5995329223 DISPENSER 10/99...
  • Page 15 FRS24WSG Publication No. 5995329223 DISPENSER A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 5318582501 Tube-water inlet,93" ,plastic, cut-to-size 218949201 Tube-water inlet,formed ,plastic, dispenser 218505302 Deflector-ice disp,almond 218505301 Deflector-ice disp,white 215484300 Heater-door housing 218852402 Housing-dispenser,almond 218852401 Housing-dispenser,white 218284800 Switch-actuator,micro 218874901 Module-dispenser 218209800 Spring,dispenser door 218836202...

  • Page 16: Ice Container

    Publication No. FRS24WSG 5995329223 ICE CONTAINER 10/99...
  • Page 17 FRS24WSG Publication No. 5995329223 ICE CONTAINER A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 5304404344 Auger-ice 5304404343 Cam-drive 218815300 Container-ice 5304404346 Drum-ice disp 218815400 Front-ice container 5304404337 Bar-drive 5304404359 Gate 5303001179 Light Bulb/Lamp,40 W 16 # 5303289050 Socket-light/lamp 5304404345 Drive Blade 18 # 5304404330 Motor-auger...

  • Page 18: Ice Maker

    Publication No. FRS24WSG 5995329223 ICE MAKER 10/99...
  • Page 19 FRS24WSG Publication No. 5995329223 ICE MAKER A = FRS24WSG (FRS24WSGD6) B = FRS24WSG (FRS24WSGW6) 5318582501 Tube-water inlet,93" ,plastic, cut-to-size 218949201 Tube-water inlet,formed ,plastic, dispenser 3206348 Spring,shut-off arm 3206299 Plate-I.D. 3206301 Gear 3206303 Plate-mounting 3206305 Screw-ground wire,8-32 x 1/4 3206306 Motor-ice maker 3206312 Spacer-hldg switch 3206313...

  • Page 20: Wiring Schematic

    Publication No. FRS24WSG 5995329223 WIRING SCHEMATIC 10/99...

  • Page 21: Wiring Diagram

    FRS24WSG Publication No. 5995329223 WIRING DIAGRAM # = Fast-moving Parts 10/99 * = Non-Illustrated Parts...
