Frigidaire FRS24WSG Factory Parts Catalog

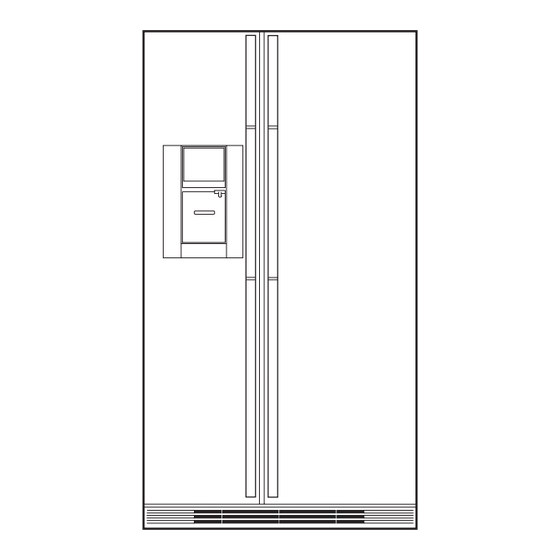

Side by side refrigerator
Hide thumbs Also See for FRS24WSG:
Table of Contents

Advertisement

Quick Links

See also: User Manual
PRODUCT NO.
BASE MODEL NO.
FRS24WSGD3
FRS24WSG
FRS24WSGW3
FRS24WSG
MARKET
North America
WIRING DIAGRAM - # 218682800
OWNER'S GUIDE - # 218931200
SERVICE DATA SHEET - # 218905000
101 Masters Blvd.
Anderson, SC 29624
FACTORY PARTS CATALOG
SERIES
COLOR
R134a
almond
R134a
white
Publication No.
5995323689
990524
-EN/SERVICE /ECL
357

SIDE BY SIDE

REFRIGERATOR
VOLTS
115
115
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS24WSG
©1999 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS24WSG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS24WSG

Summary of Contents for Frigidaire FRS24WSG

  • Page 1: Side By Side

    FACTORY PARTS CATALOG SIDE BY SIDE REFRIGERATOR PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRS24WSGD3 FRS24WSG R134a almond FRS24WSGW3 FRS24WSG R134a white MARKET North America WIRING DIAGRAM - # 218682800 OWNER’S GUIDE - # 218931200 SERVICE DATA SHEET - # 218905000 SIDE BY SIDE REFRIGERATOR 101 Masters Blvd.

  • Page 2: Freezer Door

    Publication No. FRS24WSG 5995323689 FREEZER DOOR 05/99...
  • Page 3 FRS24WSG Publication No. 5995323689 FREEZER DOOR A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 215734313 Gasket-frzr door,white ,magnetic 215734303 Gasket-frzr door,almond ,magnetic 5303288950 Support-door rack,RH/LH 5303323484 Support-door rack,white ,LH 5303323485 Support-door rack,white ,RH 218807004 Rack-door,w/end caps 215474025 Rack-door 218510601...

  • Page 4: Refrigerator Door

    Publication No. FRS24WSG 5995323689 REFRIGERATOR DOOR 05/99...
  • Page 5 FRS24WSG Publication No. 5995323689 REFRIGERATOR DOOR A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 215734314 Gasket-refr door,white ,magnetic 215734304 Gasket-refr door,almond ,magnetic 215390401 Panel-inner door,refr 218807002 Rack-door,w/end caps 5303288950 Support-door rack,RH/LH 5303308608 Door-dairy 5303289522 Door Stop 5303917498 Panel-refr door,white ,w/foam insulatn 5303917499...
  • Page 6 Publication No. FRS24WSG 5995323689 CABINET 05/99...
  • Page 7 FRS24WSG Publication No. 5995323689 CABINET A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 215637602 Cover-air duct 5308009617 Washer,ext tooth lock ,#10 ,grounding 215637401 Cover-evap coil,lower 5303208309 Plug-hole,factory test 215230400 Plug-harness hole 5303289043 Support-air duct cvr,2.55" long 5303289044 Support-air duct cvr,1.83"...
  • Page 8 Publication No. FRS24WSG 5995323689 SHELVES 05/99...
  • Page 9 FRS24WSG Publication No. 5995323689 SHELVES A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 5303298147 Trim-basket 218298003 Shelf-freezer,sliding ,wire 5304405879 Shelf-freezer,fixed wire 11A* 218159700 Spacer-shelf 215919139 Frame-refr shelf,cantilever 218147701 Cover-storage pan 5303307878 Trim-storage pan cvr,upper ,w/humidity hole 5303308340 Control-humidity 218015302...
  • Page 10 Publication No. FRS24WSG 5995323689 CONTROLS 05/99...
  • Page 11 FRS24WSG Publication No. 5995323689 CONTROLS A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 215028605 Knob-damper control 5308000010 Fan Blade,red 5308000124 Ring-fan orifice 5300157666 Bushing-motor mtg,(2) 5303205118 Bracket-motor mtg,front 215809600 Diffuser-air 13 # 215426200 Motor-evap fan 215474201 Washer,"slinger"...
  • Page 12 Publication No. FRS24WSG 5995323689 SYSTEM 05/99...
  • Page 13 FRS24WSG Publication No. 5995323689 SYSTEM A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 218787900 Condenser 5303208866 Spacer-cond tube,black 5303289026 Spacer-tube 5303289029 Clip-cond mtg,(4) 218679603 Block-evap coil,styrofoam ,(2) 218541000 Drier-filter,R134a System 218646100 Harness-wiring,main 215005200 Harness-wiring,refr controls 218815101 Harness-wiring,frzr controls 218897101...
  • Page 14 Publication No. FRS24WSG 5995323689 DISPENSER 05/99...
  • Page 15 FRS24WSG Publication No. 5995323689 DISPENSER A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 5318582501 Tube-water inlet,93" ,plastic ,cut-to-size 215294101 Tube-water inlet,formed ,plastic ,dispenser 218832301 Tube-water inlet,inlet valve ,to filter 218505301 Deflector-ice disp,white 218505302 Deflector-ice disp,almond 215484300 Heater-door housing 218852401...

  • Page 16: Ice Container

    Publication No. FRS24WSG 5995323689 ICE CONTAINER 05/99...
  • Page 17 FRS24WSG Publication No. 5995323689 ICE CONTAINER A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 5304404344 Auger-ice 5304404343 Cam-drive 218815300 Container-ice 5304404346 Drum-ice disp 218815400 Front-ice container 5304404337 Bar-drive 5304404359 Gate 5303001179 Light Bulb/Lamp,40 W 5303289050 Socket-light/lamp 5304404345 Drive Blade...

  • Page 18: Ice Maker

    Publication No. FRS24WSG 5995323689 ICE MAKER 05/99...
  • Page 19 FRS24WSG Publication No. 5995323689 ICE MAKER A = FRS24WSG (FRS24WSGW3) B = FRS24WSG (FRS24WSGD3) POS. NO PART NO DESCRIPTION 5318582501 Tube-water inlet,93" ,plastic ,cut-to-size 215294101 Tube-water inlet,formed ,plastic ,dispenser 218832301 Tube-water inlet,inlet valve ,to filter 3206348 Spring,shut-off arm 3206299 Plate-I.D. 3206301 Gear 3206303...

  • Page 20: Wiring Schematic

    Publication No. FRS24WSG 5995323689 WIRING SCHEMATIC 05/99...

  • Page 21: Wiring Diagram

    FRS24WSG Publication No. 5995323689 WIRING DIAGRAM # = Fast-moving Parts 05/99 * = Non-Illustrated Parts...
