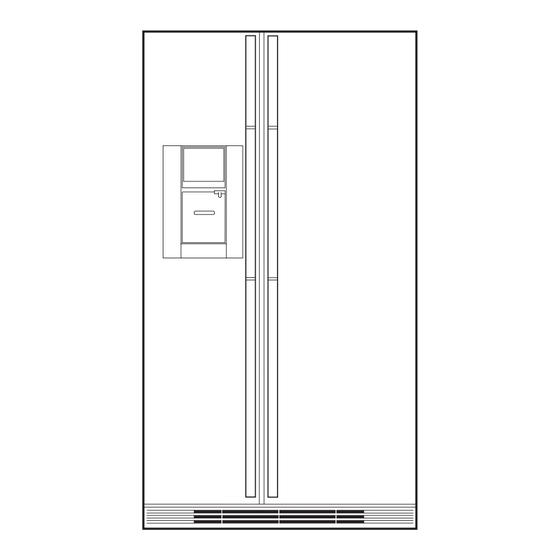

Frigidaire FRS22ZRG Factory Parts Catalog

Side by side
Hide thumbs Also See for FRS22ZRG:

Advertisement

Table of Contents

PRODUCT NO.
BASE MODEL NO.
FRS22ZRGB3
FRS22ZRG
FRS22ZRGD3
FRS22ZRG
FRS22ZRGW3
FRS22ZRG
MARKET
North America
WIRING DIAGRAM - # 218875901
OWNER'S GUIDE - # 218854700
SERVICE DATA SHEET- # 218905000
101 Masters Blvd.
Anderson, SC 29624
FACTORY PARTS CATALOG
SERIES
COLOR
R134a System
black
R134a System
almond
R134a System
white
Publication No.
5995319364
990310
-EN/SERVICE/KB
357

SIDE BY SIDE

REFRIGERATOR
VOLTS
115
115
115
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS22ZRG
©1999 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS22ZRG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS22ZRG

Summary of Contents for Frigidaire FRS22ZRG

  • Page 1: Side By Side

    FACTORY PARTS CATALOG SIDE BY SIDE REFRIGERATOR PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRS22ZRGB3 FRS22ZRG R134a System black FRS22ZRGD3 FRS22ZRG R134a System almond FRS22ZRGW3 FRS22ZRG R134a System white MARKET North America WIRING DIAGRAM - # 218875901 OWNER’S GUIDE - # 218854700 SERVICE DATA SHEET- # 218905000 SIDE BY SIDE REFRIGERATOR...

  • Page 2: Freezer Door

    Publication No. FRS22ZRG 5995319364 FREEZER DOOR 3/99...
  • Page 3 FRS22ZRG Publication No. 5995319364 FREEZER DOOR A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 215734323 A - - Gasket-frzr door,black ,magnetic 215734303 - B - Gasket-frzr door,almond ,magnetic 215734313 - - C Gasket-frzr door,white ,magnetic 5303288950 A B C...

  • Page 4: Refrigerator Door

    Publication No. FRS22ZRG 5995319364 REFRIGERATOR DOOR 3/99...
  • Page 5 FRS22ZRG Publication No. 5995319364 REFRIGERATOR DOOR A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 215734324 A - - Gasket-refr door,black ,magnetic 215734304 - B - Gasket-refr door,almond ,magnetic 215734314 - - C Gasket-refr door,white ,magnetic 215390401 A B C...
  • Page 6 Publication No. FRS22ZRG 5995319364 CABINET 3/99...
  • Page 7 FRS22ZRG Publication No. 5995319364 CABINET A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 215637602 A B C Cover-air duct 215637401 A B C Cover-evap coil,lower 10A* 5308009617 A B C Washer,ext tooth lock ,#10 ,grounding 5303208309 A B C Plug-hole,factory test...
  • Page 8 Publication No. FRS22ZRG 5995319364 SHELVES 3/99...
  • Page 9 FRS22ZRG Publication No. 5995319364 SHELVES A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 5303298147 A B C Trim-basket 218298001 A B C Shelf-freezer,sliding ,wire 218159700 A B C Spacer-shelf 5303289504 A B C Shelf-freezer,fixed wire 218815501 A B C...
  • Page 10 Publication No. FRS22ZRG 5995319364 CONTROLS 3/99...
  • Page 11 FRS22ZRG Publication No. 5995319364 CONTROLS A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 215028605 A B C Knob-damper control 5308000010 A B C Fan Blade,red 5308000124 A B C Ring-fan orifice 5300157666 A B C Bushing-motor mtg,(2)
  • Page 12 Publication No. FRS22ZRG 5995319364 SYSTEM 3/99...
  • Page 13 FRS22ZRG Publication No. 5995319364 SYSTEM A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 218787800 A B C Condenser 5303289026 A B C Spacer-tube 5303289029 A B C Clip-cond mtg,(4) 218679603 A B C Block-evap coil,styrofoam ,(2) 218541000 A B C...
  • Page 14 Publication No. FRS22ZRG 5995319364 DISPENSER 3/99...
  • Page 15 FRS22ZRG Publication No. 5995319364 DISPENSER A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 5318582501 A B C Tube-water inlet, 93", plastic, cut-to-size 215294101 A B C Tube-water inlet, formed, plastic, dispenser 218832301 A B C Tube-water inlet,inlet valve ,to filter...

  • Page 16: Ice Container

    Publication No. FRS22ZRG 5995319364 ICE CONTAINER 3/99...
  • Page 17 FRS22ZRG Publication No. 5995319364 ICE CONTAINER A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 5304404344 A B C Auger-ice 5304404343 A B C Cam-drive 218815300 A B C Container-ice 5304404346 A B C Drum-ice disp 218815400 A B C...

  • Page 18: Ice Maker

    Publication No. FRS22ZRG 5995319364 ICE MAKER 3/99...
  • Page 19 FRS22ZRG Publication No. 5995319364 ICE MAKER A = FRS22ZRG (FRS22ZRGB3) B = FRS22ZRG (FRS22ZRGD3) C = FRS22ZRG (FRS22ZRGW3) POS. NO PART NO DESCRIPTION 5318582501 A B C Tube-water inlet, 93", plastic, cut-to-size 218832301 A B C Tube-water inlet, inlet valve, to filter 3206348 A B C Spring,shut-off arm...

  • Page 20: Wiring Schematic

    Publication No. FRS22ZRG 5995319364 WIRING SCHEMATIC 3/99...

  • Page 21: Wiring Diagram

    FRS22ZRG Publication No. 5995319364 WIRING DIAGRAM # = Fast-moving Parts 3/99 * = Non-Illustrated Parts...
