Frigidaire FRS22ZRH Factory Parts Catalog

Frigidaire FRS22ZRH Factory Parts Catalog

Side by side
Hide thumbs Also See for FRS22ZRH:
Table of Contents

Advertisement

Quick Links

FRS22ZRHD2
FRS22ZRH
FRS22ZRHW2
FRS22ZRH
North America
101 Masters Blvd.
Anderson, SC 29624
R134a System
almond
R134a System
white
Publication No.
5995327763
990914
-EN/SERVICE /DJH
357
115
115
©1999 White Consolidated Industries, Inc.
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS22ZRH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS22ZRH

Summary of Contents for Frigidaire FRS22ZRH

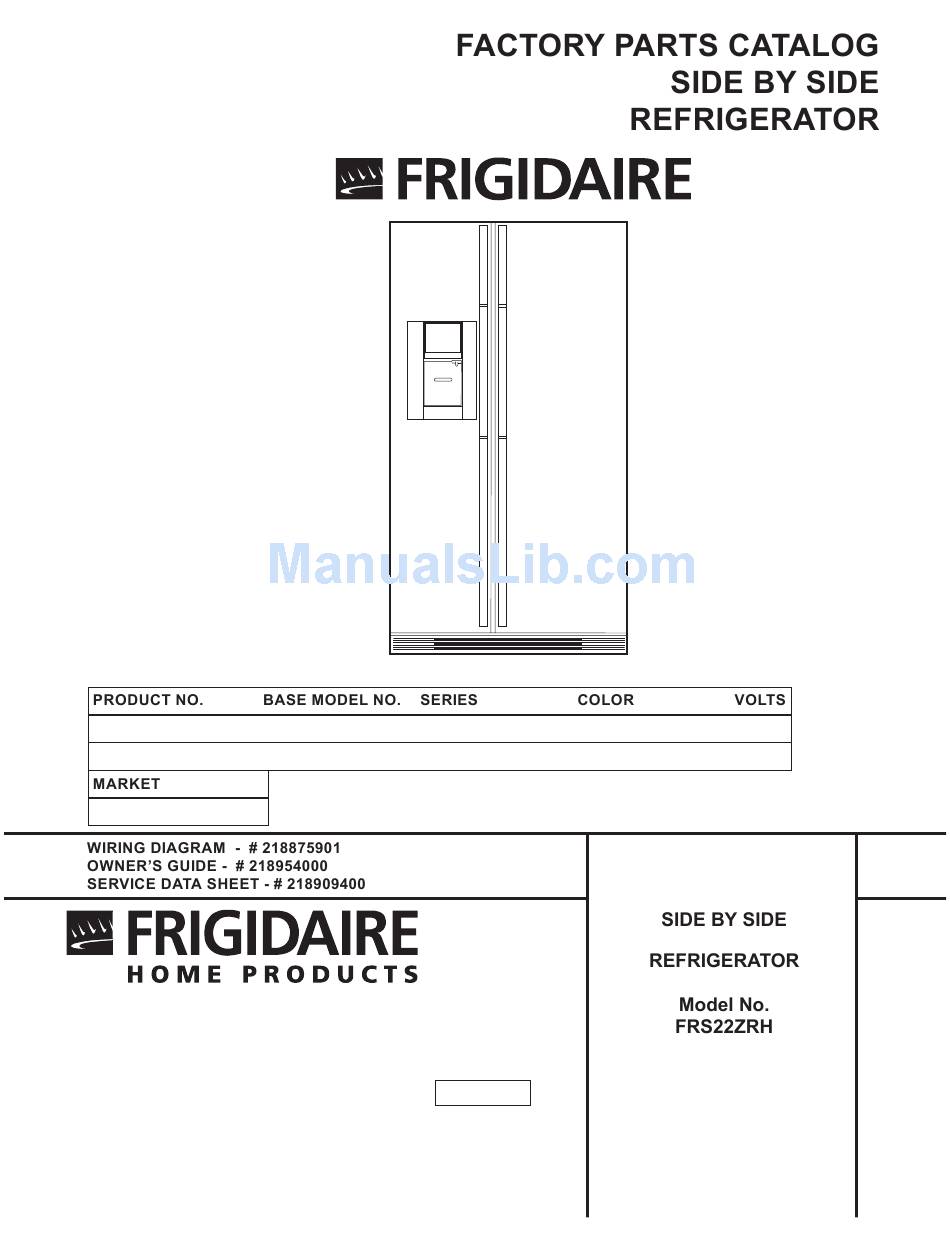

  • Page 1 FRS22ZRHD2 FRS22ZRH R134a System almond FRS22ZRHW2 FRS22ZRH R134a System white North America 101 Masters Blvd. Anderson, SC 29624 Publication No. 5995327763 990914 -EN/SERVICE /DJH ©1999 White Consolidated Industries, Inc. All rights reserved...

  • Page 2: Freezer Door

    Publication No. FRS22ZRH 5995327763 FREEZER DOOR 09/99...
  • Page 3 FRS22ZRH Publication No. 5995327763 FREEZER DOOR A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 215734303 Gasket-frzr door,almond ,magnetic 215734313 Gasket-frzr door,white ,magnetic 5303288950 Support-door rack,RH/LH 5303323484 Support-door rack,white ,LH 5303323485 Support-door rack,white ,RH 218807030 Rack-door,w/end caps 215474054 Rack-door 218510601 Panel-inner door,frzr 5303917663 Panel-frzr door,almond ,w/foam insulatn 5303917662...

  • Page 4: Refrigerator Door

    Publication No. FRS22ZRH 5995327763 REFRIGERATOR DOOR 09/99...
  • Page 5 FRS22ZRH Publication No. 5995327763 REFRIGERATOR DOOR A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 215734304 Gasket-refr door,almond ,magnetic 215734314 Gasket-refr door,white ,magnetic 215390401 Panel-inner door,refr 218807029 Rack-door,w/end caps 5303288950 Support-door rack,RH/LH 5303304563 Door-dairy 5303289522 Door Stop 5303917499 Panel-refr door,almond ,w/foam insulatn 5303917498 Panel-refr door,white ,w/foam insulatn 218762704...
  • Page 6 Publication No. FRS22ZRH 5995327763 CABINET 09/99...
  • Page 7 FRS22ZRH Publication No. 5995327763 CABINET A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 215637602 Cover-air duct 5303209814 Nut,"U" type ,8-15(A) ,fan mtr mtg 215637401 Cover-evap coil,lower 10A* 5308009617 Washer,ext tooth lock ,#10 ,grounding 5303208309 Plug-hole,factory test 215230400 Plug-harness hole 5303289043 Support-air duct cvr,2.55"...
  • Page 8 Publication No. FRS22ZRH 5995327763 SHELVES 09/99...
  • Page 9 FRS22ZRH Publication No. 5995327763 SHELVES A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 5303298147 Trim-basket 218298001 Shelf-freezer,sliding ,wire 218159700 Spacer-shelf 5303289504 Shelf-freezer,fixed wire 218815501 Shelf-pizza,24B 215406140 Shelf-"Spill-Safe",fixed ,(3) 215124343 Cover-storage pan 5303301393 • Control-humidity 5304412757 • Trim-storage pan cvr,upper ,w/humidity hole 218015302 Trim-storage pan cvr,snap-on ,front 218015402...
  • Page 10 Publication No. FRS22ZRH 5995327763 CONTROLS 09/99...
  • Page 11 FRS22ZRH Publication No. 5995327763 CONTROLS A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 215028605 Knob-damper control 5308000010 Fan Blade,red 5308000124 Ring-fan orifice 5300157666 Bushing-motor mtg,(2) 5303205118 Bracket-motor mtg,front 215809600 Diffuser-air 13 # 215426200 Motor-evap fan 215474201 Washer,"slinger" ,nylon ,evap fan shaft 5303205119 Bracket-motor mtg,rear 5303001179...
  • Page 12 Publication No. FRS22ZRH 5995327763 SYSTEM 09/99...
  • Page 13 FRS22ZRH Publication No. 5995327763 SYSTEM A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 218787800 Condenser 5303208866 Spacer-cond tube,black 5303289026 Spacer-tube 5303289029 Clip-cond mtg,(4) 218679603 Block-evap coil,styrofoam ,(2) 218944001 Drier-filter,R134a System 218646100 Wiring Harness,main 215005200 Wiring Harness,refr controls 218646000 Wiring Harness,filter heater 218815101 Wiring Harness,frzr controls 218896001...
  • Page 14 Publication No. FRS22ZRH 5995327763 DISPENSER 09/99...
  • Page 15 FRS22ZRH Publication No. 5995327763 DISPENSER A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 5318582501 Tube-water inlet,93" ,plastic ,cut-to-size 218832301 Tube-water inlet,inlet valve ,to filter 218859901 Tube-water inlet,inlet valve ,to filter 218949201 Tube-water inlet,formed ,plastic ,dispenser 218505302 Deflector-ice disp,almond 218505301 Deflector-ice disp,white 215484300 Heater-door housing 218852402...

  • Page 16: Ice Container

    Publication No. FRS22ZRH 5995327763 ICE CONTAINER 09/99...
  • Page 17 FRS22ZRH Publication No. 5995327763 ICE CONTAINER A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 5304404344 Auger-ice 5304404343 Cam-drive 218815300 Container-ice 5304404346 Drum-ice disp 218815400 Front-ice container 5304404337 Bar-drive 5304404359 Gate 5303001179 Light Bulb/Lamp,40 W 5303289050 Socket-light/lamp 5304404345 Drive Blade 18 # 218815801 Motor-auger 5304404335...

  • Page 18: Ice Maker

    Publication No. FRS22ZRH 5995327763 ICE MAKER 09/99...
  • Page 19 FRS22ZRH Publication No. 5995327763 ICE MAKER A = FRS22ZRH (FRS22ZRHD2) B = FRS22ZRH (FRS22ZRHW2) 5318582501 Tube-water inlet,93" ,plastic ,cut-to-size 218832301 Tube-water inlet,inlet valve ,to filter 218859901 Tube-water inlet,inlet valve ,to filter 218949201 Tube-water inlet,formed ,plastic ,dispenser 3206348 Spring,shut-off arm 3206299 Plate-I.D.

  • Page 20: Wiring Schematic

    Publication No. FRS22ZRH 5995327763 WIRING SCHEMATIC 09/99...

  • Page 21: Wiring Diagram

    FRS22ZRH Publication No. 5995327763 WIRING DIAGRAM # = Fast-moving Parts 09/99 * = Non-Illustrated Parts...
