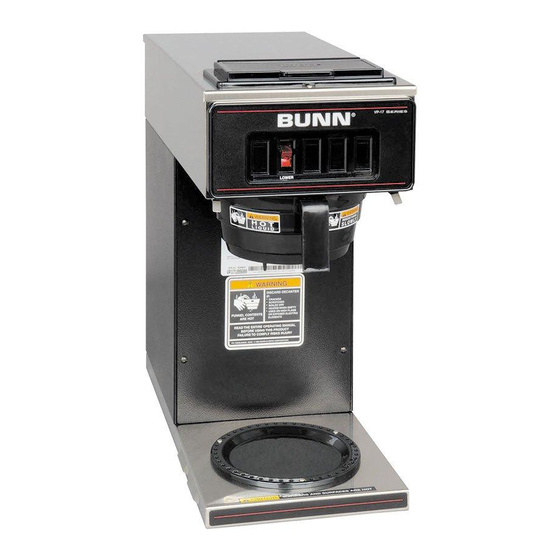

Bunn VP17 Series Illustrated Parts Catalog
Supercedes illustrated parts catalogs: 10861.0000 & 10861.0001
Hide thumbs
Also See for VP17 Series:
- Installation manual ,
- Illustrated parts catalog (26 pages) ,
- Operating & service manual (19 pages)
Advertisement
Table of Contents
VP17
Series
Supercedes Illustrated Parts Catalogs:
10861.0000 & 10861.0001

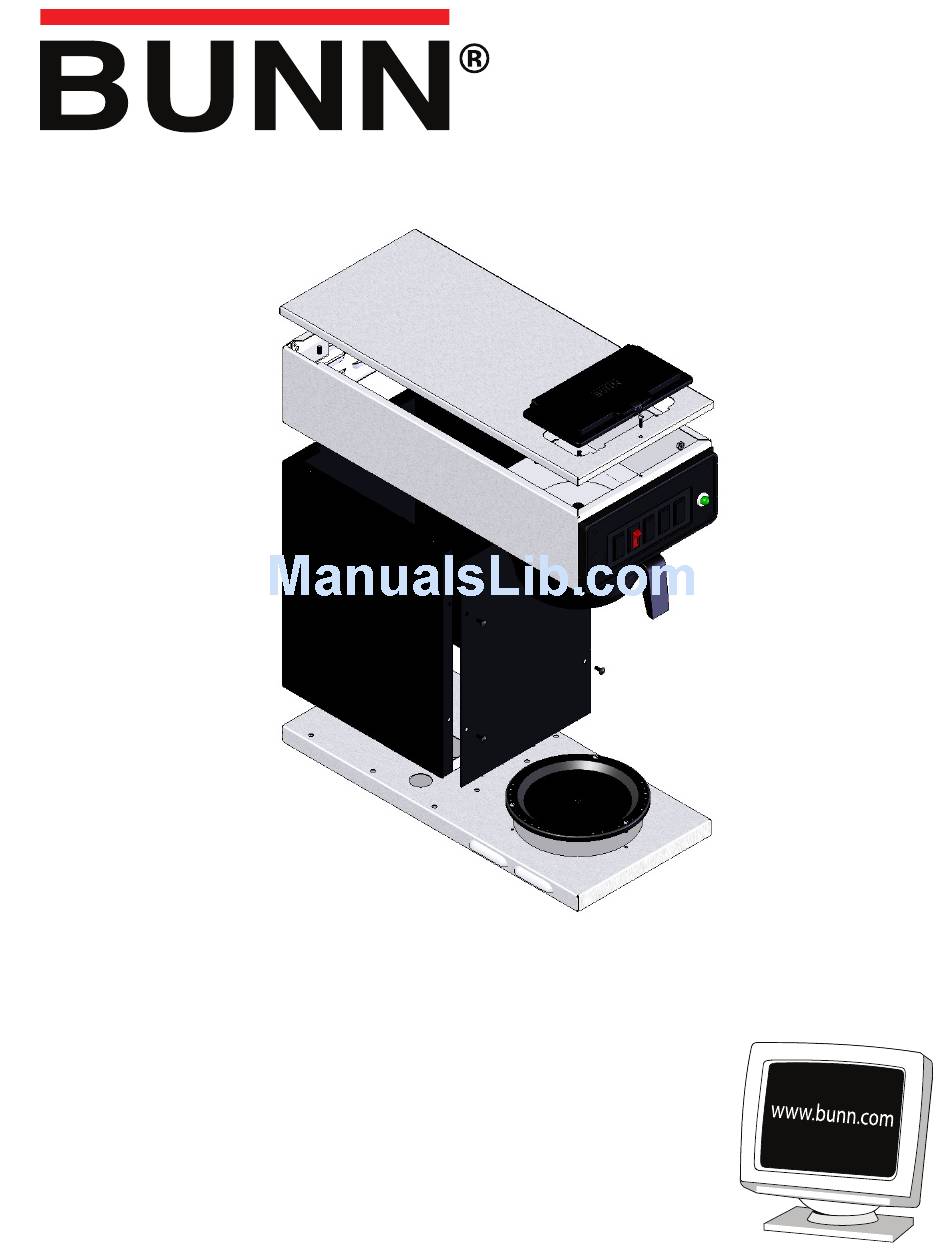

ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
10861.0002D 09/11 ©2008 Bunn-O-Matic Corporation
Advertisement
Table of Contents
Related Manuals for Bunn VP17 Series
Summary of Contents for Bunn VP17 Series
- Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 10861.0002D 09/11 ©2008 Bunn-O-Matic Corporation...
- Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Trunk and Panels............................4 Hood and Top Covers ..........................6 Fill Basin ..............................8 Tank and Components..........................10 Electrical and Operating Controls ....................... 12, 14 Warmer Assemblies ..........................16 Funnels, Pitcher and Filter Basket ......................18 Numerical Index ............................20 10861.2 013008... -
Page 4: Trunk And Panels
TRUNKS AND BASES ® BUNN VP17 OPTIONAL LEGS P3965.40 10861.2 010709... - Page 5 TRUNKS AND BASES ITEM PART NO. QTY. DESCRIPTION 34061.1005 Trunk W/Decals BLK (Includes item 3) 34061.1006 Trunk W/Decals SST (Includes item 3) 34061.1014 Trunk W/Decals SST (Includes item 3) (Models ON/OFF Rocker Switch) 41402.1000 Trunk W/Decals SST (Includes item 3) (Models w/2 Toggle Switches) 00669.0003 Plug, Hole - .437˝...
-
Page 6: Hood And Top Covers
® BUNN VP17 HOOD AND TOP COVERS P3966.45 10861.2 013008... -
Page 7: Hood And Top Covers
HOOD AND TOP COVERS ITEM PART NO. QTY. DESCRIPTION 38503.1000 Cover SST, Top (Includes items 2 & 12)(Brewers W/Out Top Warmer) 38504.1000 Cover BLK, Top (Includes items 2 & 12)(Brewers W/Out Top Warmer) 38496.1000 Cover, Top (Includes items 3,8 & 12)(Brewers with Top Warmer) 38496.1002 Cover, Top (Includes items 3,8 &... -
Page 8: Fill Basin
® BUNN FILL BASIN VP17 04270.0002 P677 10861.2 013008... - Page 9 FILL BASIN ITEM PART NO. QTY. DESCRIPTION 11424.0000 Plate, Splash Guard 01212.0001 Fitting, Tank Inlet 04270.0000 Fill Basin 01201.0000 Gasket, Tank Inlet 10861.2 031109...
-
Page 10: Tank And Components
® BUNN TANK AND COMPONENTS VP17 Thermo- stat Lead Ready Light Harness Main Harness "A" Models Thermostat Leads Models With Tank Drain P3967.90 10861.2 013008... - Page 11 TANK AND COMPONENTS ITEM PART NO. QTY. DESCRIPTION 25319.1000 Tank Assy, 1320W 120V (Includes items 1 thru 14) 25319.1001 Tank Assy, 1800W 120V (Includes items 1 thru 14) 25319.1007 Tank Assy, 1850W 220V (Includes items 1 thru 14 & 22) 25319.1008 Tank Assy, 3500W 240V (Includes items 1 thru 14 &...
-
Page 12: Electrical And Operating Controls
® BUNN ELECTRICAL AND OPERATING CONTROLS VP17 “B” MODELS w/FRONT HEATER SWITCH P3968.50 10861.2 010709... - Page 13 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. DESCRIPTION 12921.0000 Switch Blank, BLK 12920.0000 Switch ON/OFF 120V 12920.0002 Switch, ON/OFF 240V 13352.0008 Control Panel 02301.0000 Screw, Phillip Pan Head #6-32 x .625" 00973.0000 Nut , Keps #6-32 22295.0000 Label, Switch ON/OFF (One warmer brewer) 22295.0001 Label, Switch ON/OFF (Two warmer brewer) 22295.0002...
- Page 14 ® BUNN ELECTRICAL AND OPERATING CONTROLS VP17 (Continued) “B” MODELS w/FRONT HEATER SWITCH P3968.50 10861.2 010709...
- Page 15 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. DESCRIPTION 38894.0001 Switch, Master ON/OFF (Models w/ Master ON/OFF Switch) 01308.0003 Screw, truss Head, Locking BLK #6-32 x .25" 01308.0000 Screw, truss Head, Locking SST #6-32 x .25" 01327.0000 Screw, Pan Head #10-32 x .38" 01512.0000 Lockwasher #10 38920.0000...
-
Page 16: Warmer Assemblies
® BUNN VP17 WARMER ASSEMBLIES UPPER & SIDE HOUSING WARMERS ‘A” &”B” MODELS ONLY 120V & 120/240V MODELS ONLY BASE WARMERS ‘A” &”B” MODELS ONLY 120V & 120/240V MODELS ONLY P3701.70 10861.2 013008... - Page 17 WARMER ASSEMBLIES ITEM PART NO. QTY. DESCRIPTION 03652.0000 Warmer Assembly 120V, Top & Side Warmers (Includes items 1, & 3 - 6) 11440.0009 Warmer Assembly 220V, Top & Side Warmers (Includes items 1, 3, 5, & 6) 11440.0011 Warmer Assembly 200V, Top & Side Warmers (Includes items 1, 3, 5, & 6) 01303.0000 Screw, Pan Head - SST #4-40 x .5"...
-
Page 18: Funnels, Pitcher And Filter Basket
® BUNN FUNNELS, PITCHER AND FILTER BASKET VP17 P681.75 10861.2 013008... - Page 19 FUNNELS, PITCHER AND FILTER BASKET ITEM PART NO. QTY. DESCRIPTION 20583.0003 Funnel W/Decals, Plastic (Black 7.125" Dia) (Includes items 6, 7 & 10) 20583.0006 Funnel W/Decals, Plastic (Orange 7.125" Dia) (Includes items 6, 7 & 10) 20216.0000 Funnel, SST W/Black Handle (7.125" Dia)(Includes items 2 thru 4) 20216.0001 Funnel, SST W/Orange Handle (7.125"...
-
Page 20: Numerical Index
NUMERICAL INDEX PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. 02763.0000......7 13307.1001......13 25769.0001......15 00511.1000......5 00606.0000......15 02822.0000......5 13350.0006......7 25769.0002......15 00658.0000......5 02999.0000......7 13350.0015......7 25769.0003......
