Bunn VP17 Operating & Service Manual

Operating & service manual - vp17, vp17b
Hide thumbs Also See for VP17:

Advertisement

Table of Contents

See also: Service & Repair Manual

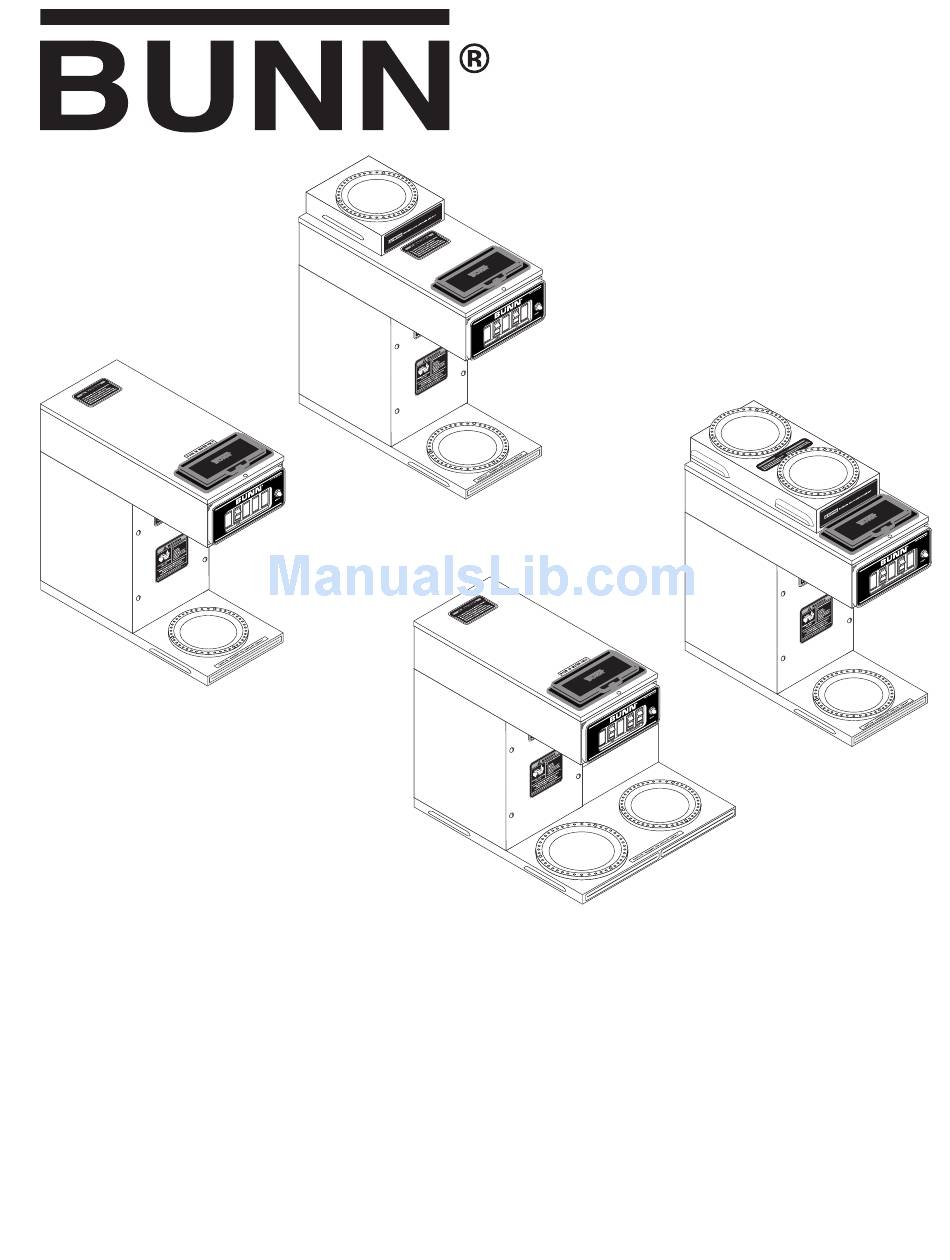

VP17
VP17B
OPERATING & SERVICE MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE,
and the quickest way to obtain the catalog. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper
copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
www.bunnomatic.com
10860.0000E 04/07 ©1996 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading

Related Manuals for Bunn VP17

Summary of Contents for Bunn VP17

  • Page 1 To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the catalog. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
  • Page 2 SPECIFIED HEREIN, TO REPAIR OR, AT BUNN’S SOLE OPTION, REPLACEMENT OR REFUND. In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
  • Page 3 READ THE ENTIRE OPERATING MANUAL BEFORE BUYING OR USING THIS PRODUCT THIS APPLIANCE IS HEATED WHENEVER CONNECTED TO A POWER SOURCE 00831.0000F 3/98 ©1998 BUNN-O-MATIC CORPORATION # 00831.0000 CAUTION To reduce the risk of electric shock, do not remove or open cover.

  • Page 4: Electrical Requirements

    CAUTION - The brewer must be disconnected from the power source until specified in Initial Set-Up. The brewer has an attached cordset and requires 2-wire grounded service rated 120 volts ac, 15 amp, single phase, 60 Hz. WHITE NEUTRAL 100V.A.C. L1 BLACK P2185 Electrical Hook-Up (Model "B"...
  • Page 5 1. Insert a BUNN filter into the funnel. ® 2. Pour the fresh coffee into the filter and level the bed of grounds by gently shaking. 3. Slide the funnel into the funnel rails. 4. Place an empty dispenser beneath the funnel.
  • Page 6 A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic Technical Service Department. • Inspection, testing, and repair of electrical equipment should be performed only by qualified service person- nel.
  • Page 7 TROUBLESHOOTING (cont.) PROBLEM Water is not hot (cont.) Inconsistent beverage level in dispenser Spitting or excessive steaming Dripping from sprayhead PROBABLE CAUSE 4. Tank Heater 1. Syphon System 2. Lime Build-up CAUTION - Tank and tank compo- nents should be delimed regularly depending on local water condi- tions.
  • Page 8 A fine or drip grind must be used for proper extraction. A six-hole stainless steel spray- head must be used for proper extraction. The BUNN paper filter must be ® centered in the funnel and the bed of ground leveled by gentle shaking.

  • Page 9: Table Of Contents

    SERVICE This section provides procedures for testing and replacing various major components used in this brewer should service become necessary. Refer to Troubleshooting for assistance in determining the cause of any problem. WARNING - Inspection, testing, and repair of electrical equipment should be performed only by qualified ser- vice personnel.

  • Page 10: Control Thermostat

    SERVICE (cont.) CONTROL THERMOSTAT FIG. 2 CONTROL THERMOSTAT Location: The control thermostat is located inside the trunk on the left side of the component bracket. Test Procedures: 1. Disconnect the brewer from the power source. 2. With a voltmeter, check the voltage across the blue wire on the control thermostat and the white wire on the tank heater.

  • Page 11: Limit Thermostat

    SERVICE (cont.) LIMIT THERMOSTAT FIG. 4 LIMIT THERMOSTAT Location: The limit thermostat is located inside the rear of the hood on the tank lid. Test Procedures: 1. Disconnect the brewer from the power source. 2. Disconnect the blue and black wires from the limit thermostat.

  • Page 12: On/Off Switch

    SERVICE (cont.) ON/OFF WARMER SWITCH FIG. 6 ON/OFF WARMER SWITCHES Location: The ON/OFF warmer switch(es) are located on the front of the hood. Test Procedure: 1. Disconnect the brewer from the power source. 2. Viewing the switch from the back, remove the white wire from the upper terminal and the black wire from the center terminal.

  • Page 13: Tank Heater

    SERVICE (cont.) TANK HEATER FIG. 8 TANK HEATER Location: The tank heater is located inside the tank and secured to the tank lid. Test Procedures: 1. Disconnect the brewer from the power supply. 2. With a voltmeter, check the voltage across the black and white wires on the tank heater.

  • Page 14: Tank Heater Switch

    VP17B MODELS FIG. 10 TANK HEATER SWITCH Location: On Early VP17 Models the tank heater switch is located on the rear of the brewer on the upper left side of the trunk. On VP17B Models the tank heater switch is located on left side of the control panel.
  • Page 15 SERVICE (cont.) TANK HEATER SWITCH (cont.) 13. Set tank assembly inside the hood on mounting brackets and secure with two #8-32 screws. 14. Reconnect the wires to the limit thermostat, tank heater and the control thermostat. Refer to Limit Thermostat, Tank Heater and Control Thermo- stat sections in this manual when reconnecting wires.

  • Page 16: Warmer Elements

    SERVICE (cont.) WARMER ELEMENT(S) Location: The warmer element(s) is located under the warmer plate. Test Procedures: 1. Disconnect the brewer from the power source. 2. With a voltmeter, check voltage across the white wire to the power cord and the white/red, brown/ black or violet wire to the "ON/OFF"...

  • Page 17: Wiring Diagrams

    SCHEMATIC WIRING DIAGRAM VP17-1/-2/-3 SW. & THERMOSTAT LIMIT THERMOSTAT ON/OFF SWITCH "KEEP WARM" HEATER WHI/RED VP17-2 TOP WARMER ASSY ON/OFF SWITCH VP17-3 2 SIDE WARMERS NOT USED ON LATE MODELS BRN/BLK BRN/BLK ON/OFF SWITCH ON/OFF SWITCH 120 VOLTS AC 2 WIRE + GND SINGLE PHASE 10862.0003H 09/06 ©1997 BUNN-O-MATIC CORPORATION...
  • Page 18 10862.0000B 9/00 ©1995 BUNN-O-MATIC CORPORATION VP17-1/-2/-3 READY INDICATOR SW. & THERMOSTAT TANK HEATER "KEEP WARM" HEATER WHI/RED LOWER WARMER REAR WARMER BRN/BLK BRN/BLK FRONT WARMER REAR WARMER AUXILIARY OUTLET (NOT AVAILABLE ON VP17-3) 200 WATT MAXIMUM Page 18 10860 061501...
  • Page 19 TANK HEATER "KEEP WARM" HEATER WHI/RED LOWER WARMER REAR WARMER NOT USED ON LATE MODELS WITH SIDE WARMERS BRN/BLK BRN/BLK FRONT WARMER REAR WARMER AUXILIARY OUTLET (NOT AVAILABLE ON VP17-3) 200 WATT MAXIMUM (EARLY MODELS ONLY) Page 19 10860 061501...
