INSTALLATION INSTRUCTIONS
Tools Required for this installation:
-
Quality wire cut/strip/crimp tool
-
4mm hex wrench (provided)
-
10mm socket or open-end wrench
-
Voltmeter or test light
-
/
" socket or straight screwdriver
3
8
-
Appropriate tools to remove old fan &
shroud (hoses & accessories also on
some applications)
-
Hand-held drill (some applications)
-
Hack saw (some applications)
-
Hand held thermometer (optional)
Model #180 Should include:

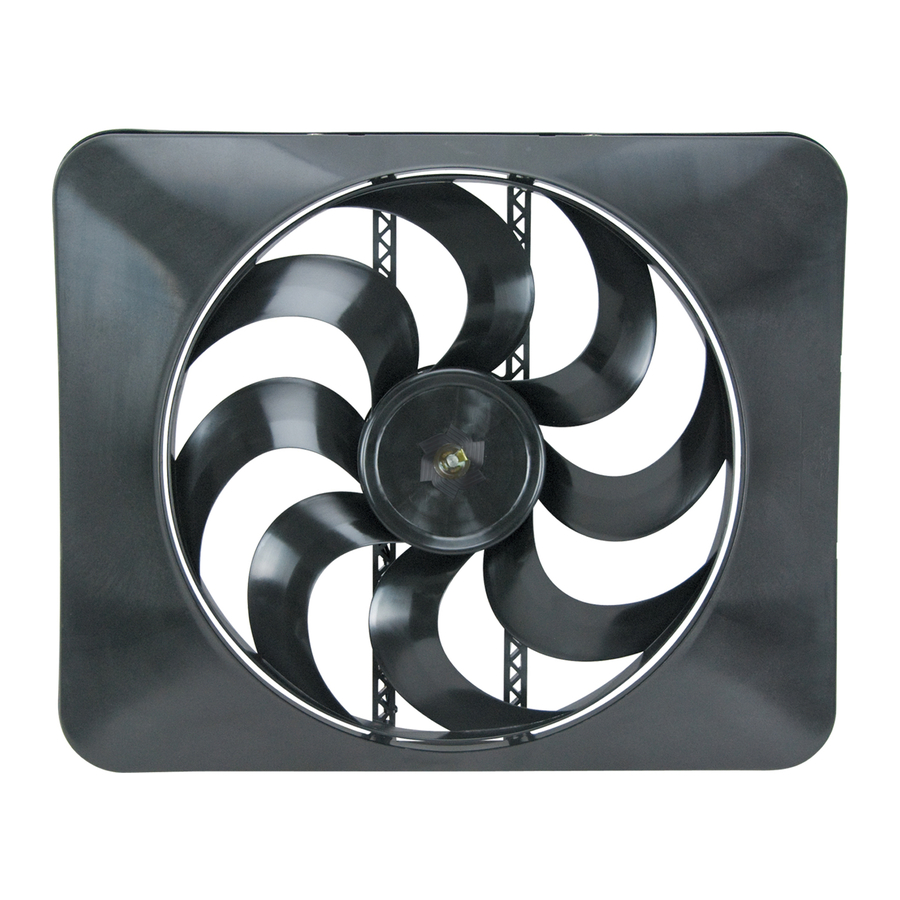

1 - Electric fan/shroud assembly
2 - #29001 aluminum brackets
4 - #29003 black brackets
1 - Control module with temp. sensor
1 - Complete wiring kit bag with mounting hardware
Step 1: Remove Existing Fan & Shroud
Tip: If your vehicle is equipped with a 2-piece shroud, it is usually easiest to remove the
shroud first, then remove the fan blade/clutch. If a one-piece shroud, it is sometimes
necessary to lift out the shroud and blade together.
Remove the original fan...
The Flex-a-lite Limited Warranty
Flex-a-lite Consolidated, 7213-45th St. Ct. E. Fife, WA 98424, Telephone No. 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite products to be free of defects in material and
workmanship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within 365 days (1 year) from date of purchase may be returned to the factory through the point of
purchase, transportation charges prepaid. If, on inspection, cause of failure is determined to be defective material or workmanship and not by misuse, accidental or improper installation, Flex-a-lite will
replace the fan free of charge, transportation prepaid. Flex-a-lite will not be liable for incidental, progressive or consequential damages. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may have other rights, which vary from state to state.
The Flex-a-lite warranty is in compliance with the Magnuson-Moss Warranty Act of 1975.
C
ONTINUE TO NEXT PAGE TO COMPLETE THE INSTALLATION
17
/
"
1
2
Optional
and shroud.
rev. 10-07-08
21
/
"
3
8
4
/
" DEPTH
1
8
.
part no. 99180
Page 1 of 4
