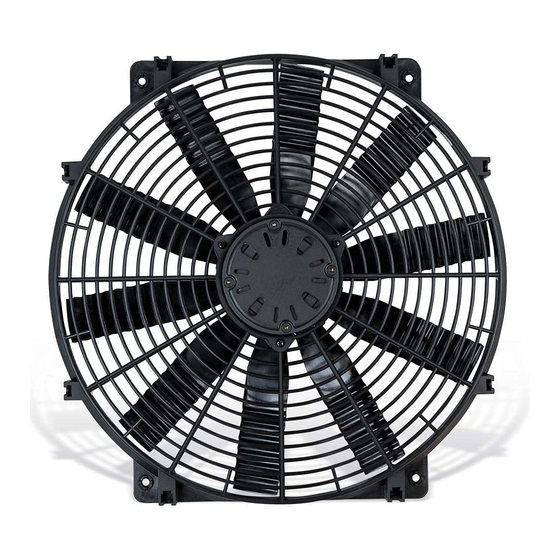

Flex-a-Lite FLX-30118K Replacement Instructions

1. Loosen the fan hub set screw with the
hex wrench provided.
2. Remove the fan by gently pulling it
straight off of the motor shaft. Do not
strike the motor shaft to loosen the
fan blade.
1. Insert the hex wrench into the set screw
before sliding the fan onto the motor shaft.
Fan hub and set screw should be facing
outside (away from the motor).
2. Position the set screw on the flat of the
motor shaft.
3. Position the fan so the motor shaft is even
with the fan hub surface, tighten set screw.
The Flex-a-lite Limited Warranty
Flex-a-lite Consolidated, 7213-45th St. Ct. E. Fife, WA 98424, Telephone No. 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite products to be free of
defects in material and workmanship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within 365 days (1 year) from date of purchase may
be returned to the factory through the point of purchase, transportation charges prepaid. If, on inspection, cause of failure is determined to be defective material or workmanship
and not by misuse, accidental or improper installation, Flex-a-lite will replace the fan free of charge, transportation prepaid. Flex-a-lite will not be liable for incidental,
progressive or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you. This warranty gives you specific legal rights and you may have other rights, which vary from state to state.
The Flex-a-lite warranty is in compliance with the Magnuson-Moss Warranty Act of 1975.
R
EPLACEMENT
INSTRUCTIONS
To remove the existing fan blade
To install the new fan blade
B
LADE
INSTALL FAN BLADE ASSEMBLY
rev. 01-02-06 Part No. 99985 Page 1 of 2
SHROUD
SET SCREW
REMOVE FAN BLADE
ASSEMBLY
SHROUD
FAN HUB &
MOTOR SHAFT
FLUSH
SET SCREW
