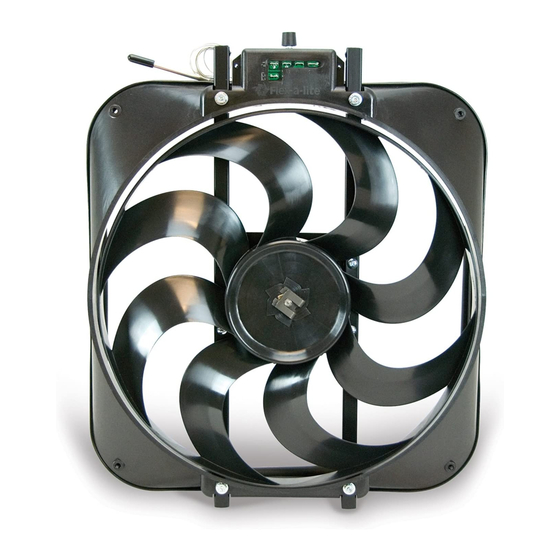

Flex-a-Lite Black Magic 160 Installation Instructions

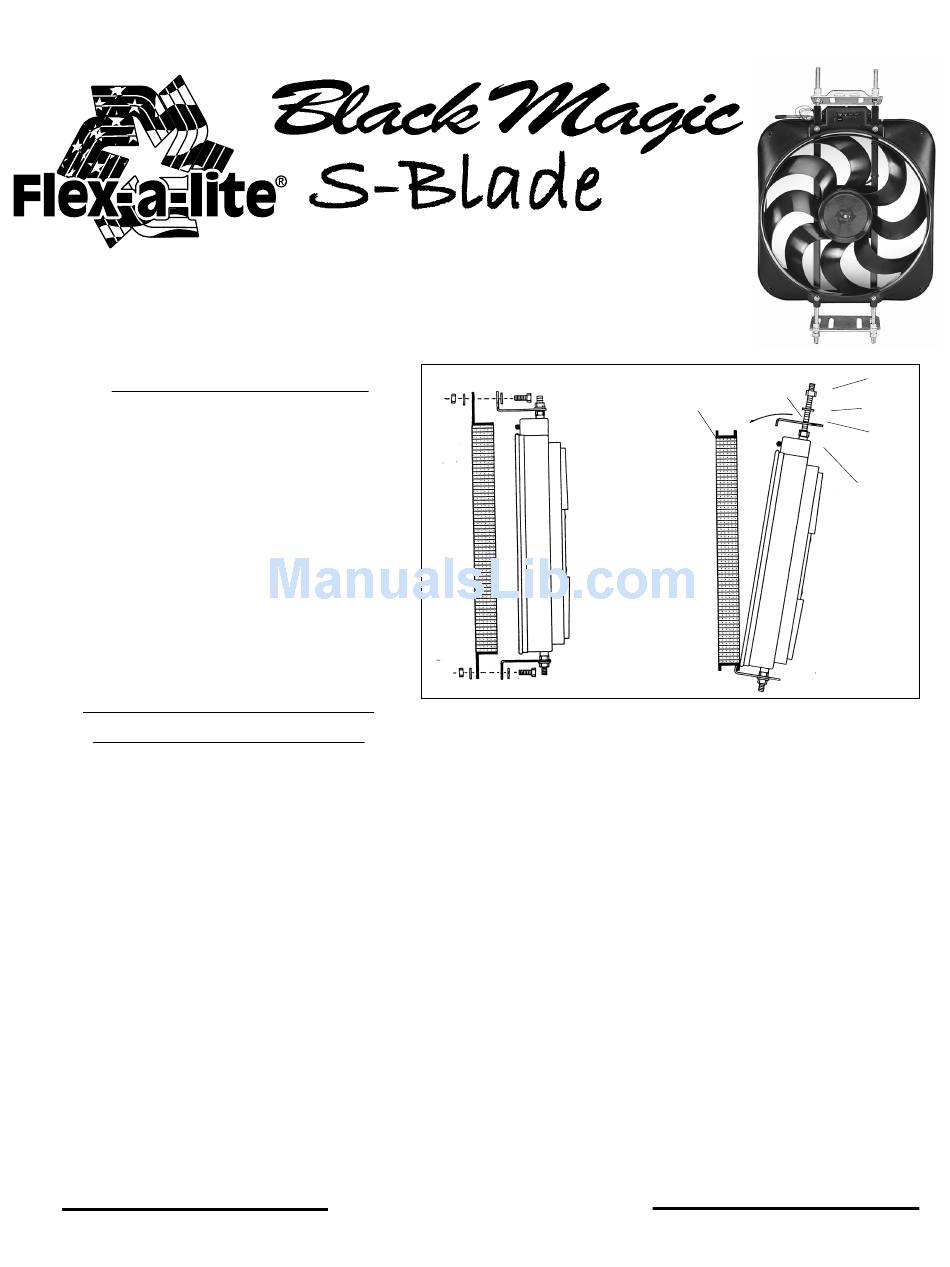

Mounting Instructions:

Models #160 & #168 may be installed
horizontally or vertically to the radiator.
Assemble the brackets and threaded
rods to the fan according to the specific
applicaiton. Mount the fan with brackets
using either the bolt-on or clamp-on
method. NOTE: Be sure to use star-
nuts to stabilize the threaded rods.
Do not over-tighten to the radiator -
damage may occur.
WIRING INSTRUCTIONS;
#160 with controls only
1. Disconnect the battery Negative (-) terminal
2. Connect the "B" terminal on the control to the 12 volt positive (+) battery terminal using the thick
red wire and fuse holder provided in the kit.
3. Connect the "G" terminal on the control to battery negative (ground - ) terminal using the thick
black wire provided in the kit. (Do not install fuse at this time)
4. Connect the "+" terminal of the control box to a keyed 12 volt positive (+) power source (i.e. fuse
box), using the thin red wire and fuse taps (if necessary) provided in the kit. NOTE : Attach this
wire to an ignition controlled source to stop the fan when the vehicle is shut off. Attach
this wire to a constant source to keep the fan running after the vehicle is shut off.
.
5 If you have air conditioning: With the 3-way connector provided, pass the A/C clutch posi-
tive(+) wire (connected to the A/C compressor) through the connector. Place the green wire
provided into the closed end of the connector. Crimp metal plate. Snap plastic cover into place.
Attach green wire to the "C" terminal of the control box. Air Conditioning Relay activates fan
when A/C is turned on
6. Insert temp. probe through radiator core near the upper (inlet) hose. Install rubber cap over end
of probe.
#160 & #168
Bolt-on Method
CONTINUE TO NEXT PAGE
Clamp-on Method
Bracket
Radiator
Channel
Radiator
(Front)
Rev. 01-27-10 99975 page 1 of 2
Nut
Nut
Washer
Threaded
Rod
Star Nut
