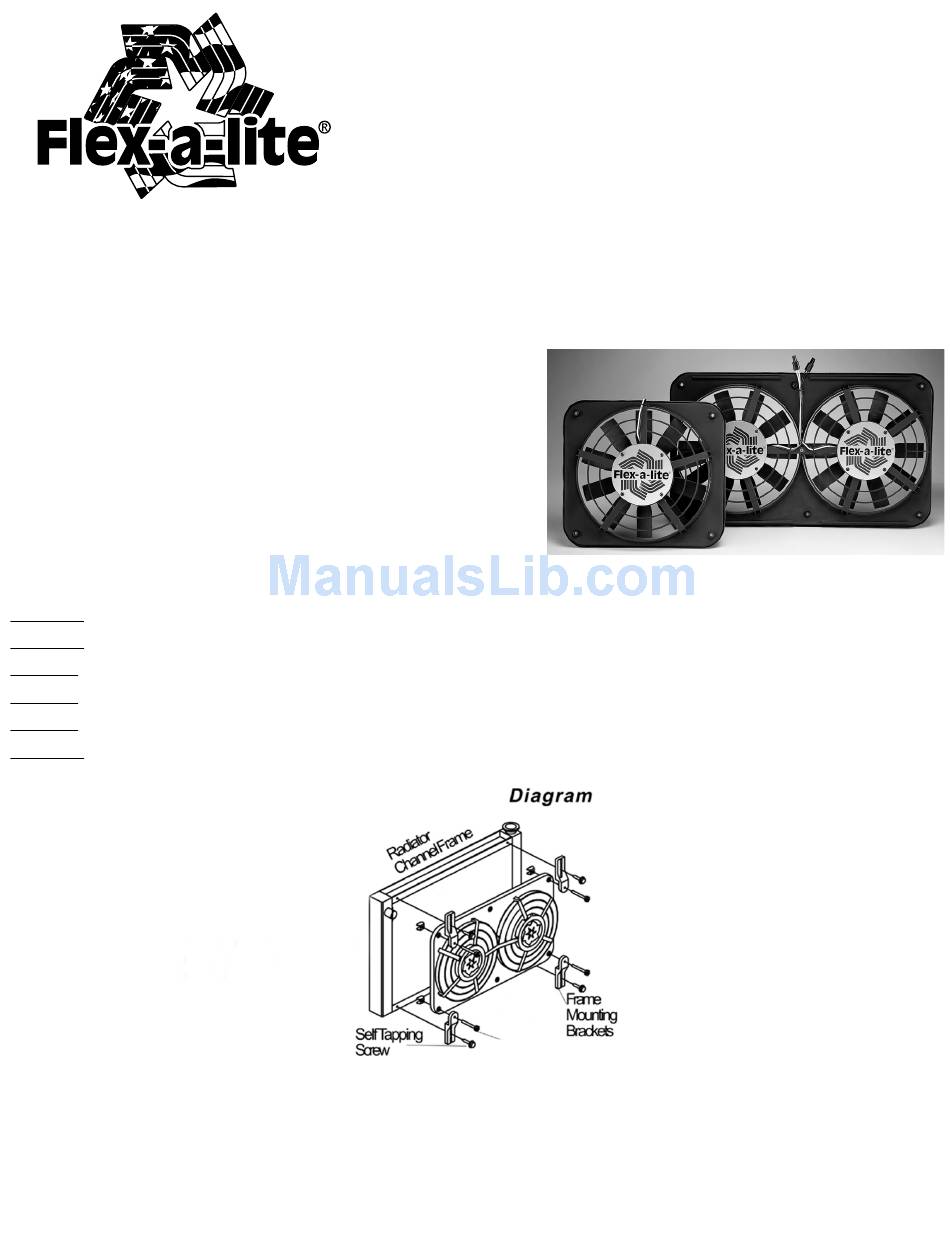

Installation Instructions
Model 130 - Single fan w/ thermostatic
control & A/C relay
Model 140 - Single fan w/o thermostatic
control & A/C relay
Model 230- Dual fan w/ thermostatic
control & A/C relay
Model 240 - Dual fan w/o thermostatic
control & A/C relay
(SEE DIAGRAM Below )
Step 1. Attach frame mounting brackets to fan using the 4 3/4 ''self tapping screw.
Step 2. Position fan to desired location, mark holes on radiator channels or frame.
Step 3. Rotate fan blades to insure that they are free of obstruction.
Step 4. On the marked hole locations drill 13/64" holes.
Step 5. Secure the fan to radiator using the provided 1/4" x 1" self tapping screws.
Step 6. Check fan rotation.
130 & 230 140 & 240
Pusher Fans
rev. 05-01-08
99875
Page 1 of 3
Advertisement
Table of Contents
Related Manuals for Flex-a-Lite 130
Summary of Contents for Flex-a-Lite 130
-
Page 1: Installation Instructions
130 & 230 140 & 240 Pusher Fans Installation Instructions Model 130 - Single fan w/ thermostatic control & A/C relay Model 140 - Single fan w/o thermostatic control & A/C relay Model 230- Dual fan w/ thermostatic control & A/C relay Model 240 - Dual fan w/o thermostatic control &... - Page 2 Fan Wiring Instructions Step 1: Locate mounting point for control Locate a mounting point for control near inlet side of radiator. Control needs to be placed within 18" of radiator inlet hose. You may want to mount next to radiator on fender well. Mount control using screws provided.
- Page 3 Flex-a-lite Consolidated, 7213-45th St. Ct. E. Fife, WA 98424, Telephone No. 253-922-2700, warrants to the original purchasing user, that all Flex-a-lite products to be free of defects in material and workmanship for a period of 365 days (1 year) from date of purchase. Flex-a-lite products failing within 365 days (1 year) from date of purchase may be returned to the factory through the point of purchase, transportation charges prepaid.
