Installation

MAKING THE ELECTRICAL CONNECTION

WARNING WARNING WARNING
WARNING WARNING
!
• Ensure that the power supply is disconnected before proceeding.
• Verify that the power supply matches the ratings found on the appliance data
plate before proceeding.
• The complete appliance must be properly grounded at all times when electrical
power is applied.
• Do not ground the appliance with the neutral (white) house supply wire. A
separate ground wire must be utilized.
• If aluminum house supply wiring is used, splice the appliance copper wires to the
aluminum house wiring with special connectors designed and agency-certified
for this purpose. Follow the connector manufacturer's recommended procedure
carefully. Improper connection can result in a fire hazard.
• Failure to complete electrical connections properly may result in a damaged or
nonfunctional system. Follow the wiring diagrams carefully to ensure a proper
installation.

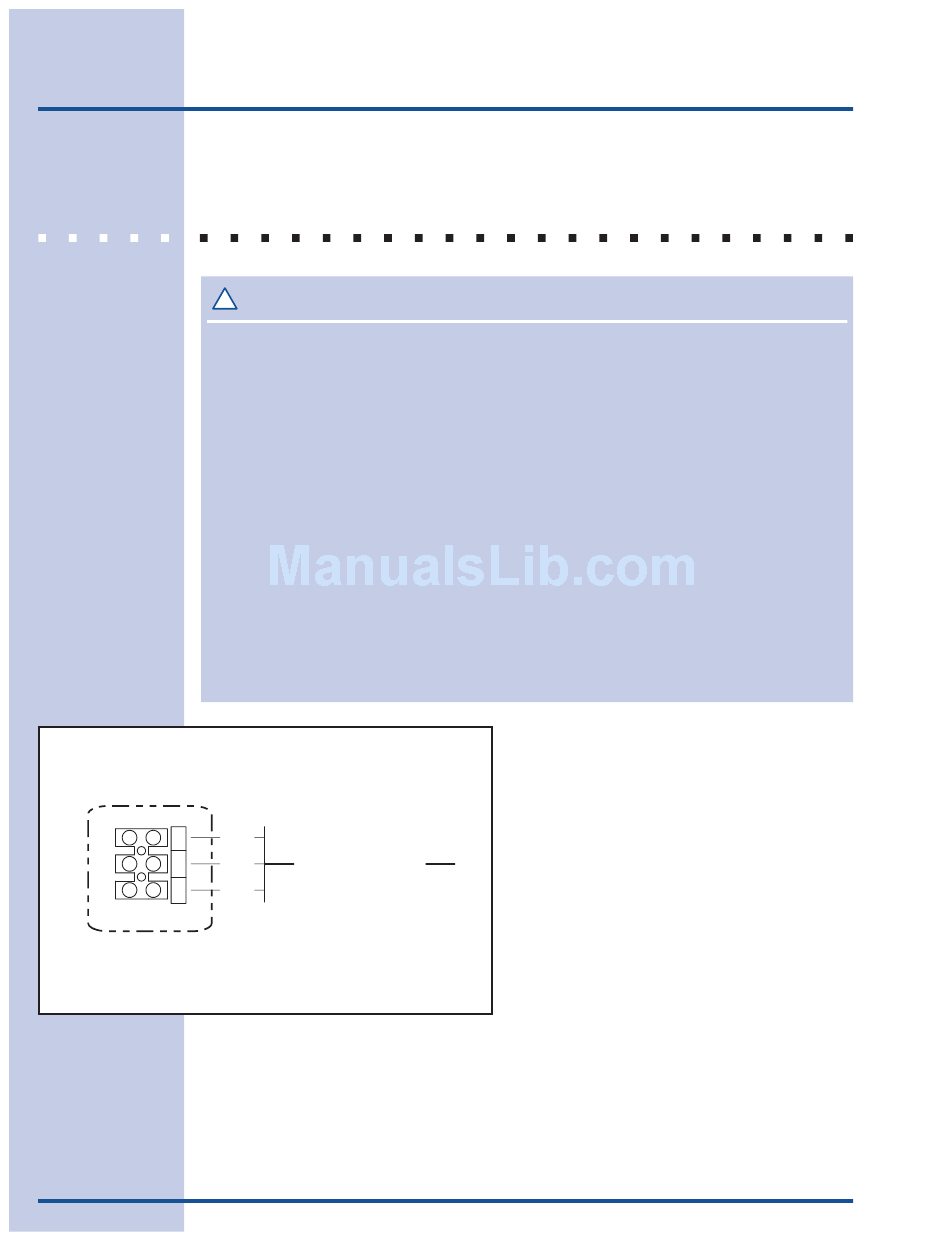

Figure 13
L1
BLK
120VAC, 60Hz, 15A
WHT
N1
Supply power from
Gnd d GRN
dedicated circuit breaker
Hood Wiring Diagram
Electrical power source wiring can be
connected through the top or back of the
hood. Access the wiring inside the hood
canopy in the area to the right side of the
power ventilator.
Connect the pre-wired 12" long black, white
and green wires to the corresponding
black, white and ground (green) wire from
the power source wiring. Use wire nut
connectors to secure the connections.
