3.1 OUTLINE OF CONTROL ELECTRONICS

Figure 3.1-1 shows a block diagram of the control electronics of this machine. The
control electronics consists of a main PCB, LCD, motor, thermal print head assembly,
and sub PCB*.
* Provided on the European version.
n Main PCB
This manages all the components including an LCD, motor, key pad, and thermal print
head.
n Motor
The DC motor is a power source to advance tape. It operates on 9V (unstabilized).
n Thermal Print Head
This is a thick-film thermal print head which integrates a heat generator (consisting of 64
heating elements vertically aligned) and driver circuitry. When selectively energized by
9V (unstabilized), those heating elements produce characters.
n LCD
The LCD is 8 characters wide by one row and it has also 11 guidance indicators.
n Sub PCB
This allows you to use an AC adapter.

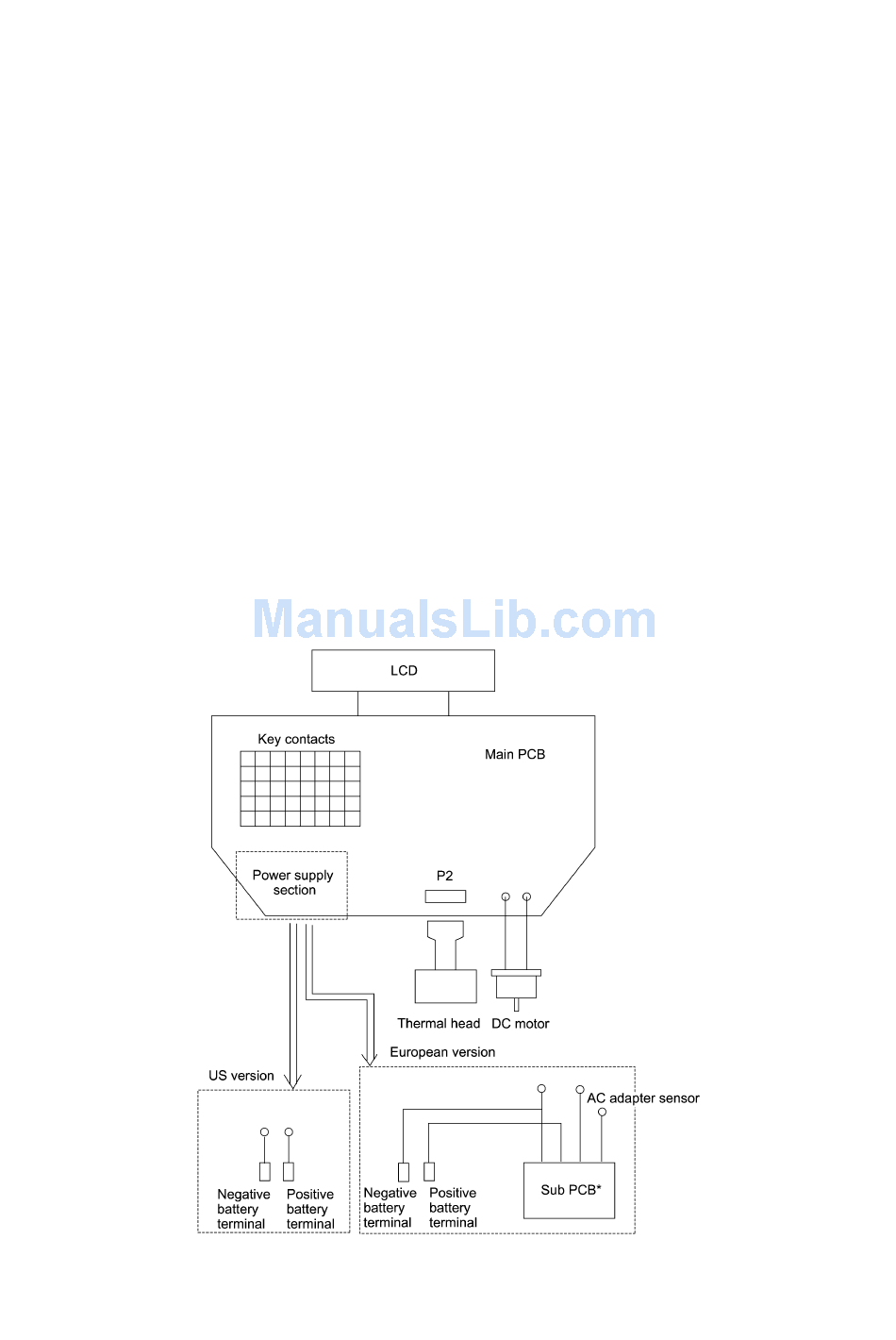

Figure 3.1-1 Configuration of the Electronic Part
III - 1
