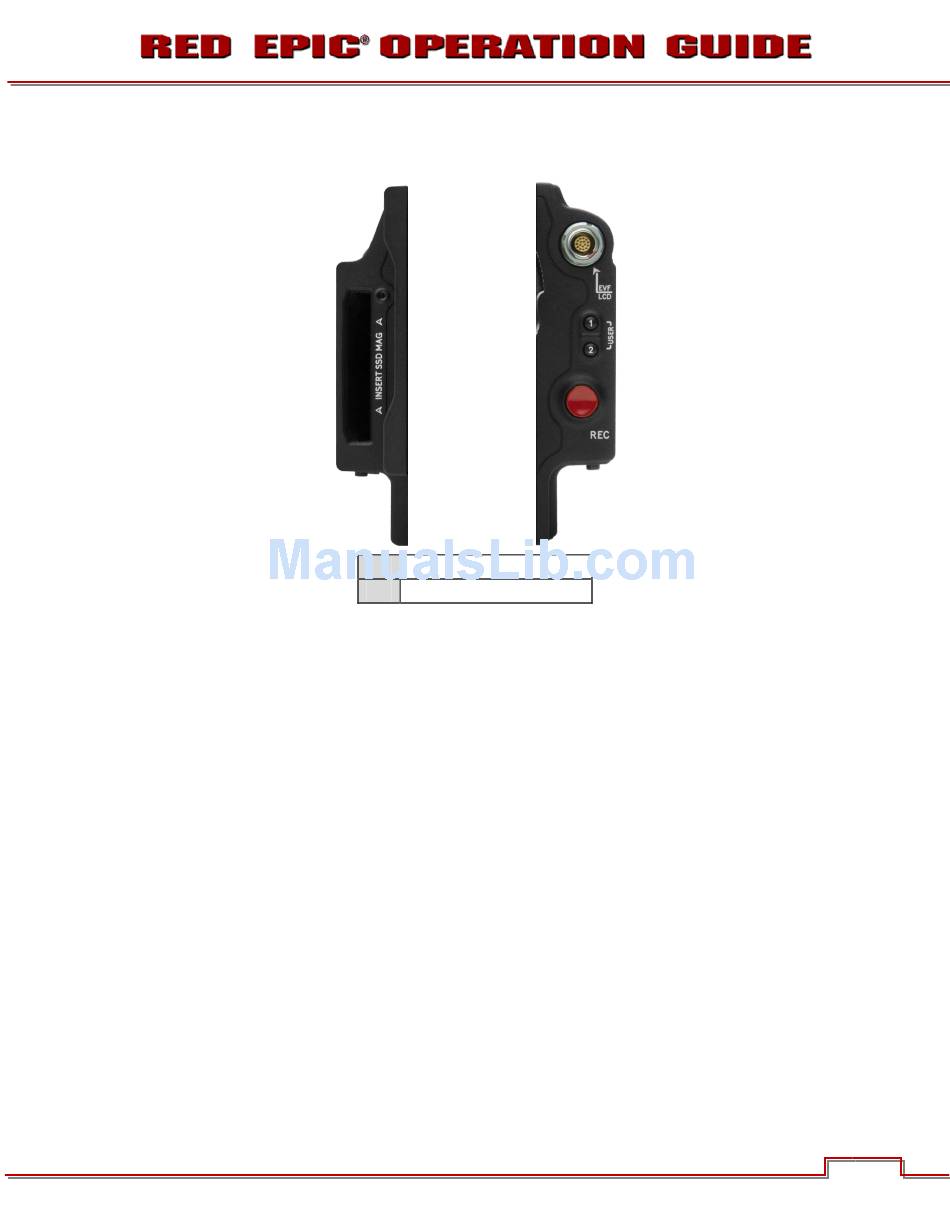

SIDE SSD MODULE

REAR
The Side SSD Module mounts to the left side of the camera Brain. On the rear face of this module is a
slot for inserting a REDMAG 1.8"SSD digital Magazine. Do not attempt to insert any other media type, or
any foreign objects into this slot, as damage to the Side SSD Module and / or the camera Brain may
occur.
The VIEWFINDER output Module on the front face of the Side SSD Module provides digital video,
communications and power interconnection between the camera and a RED EVF or RED LCD digital
display. Due to the requirement for absolute data integrity this requires a custom cable manufactured by
RED, the pin-out of this interface is not published.
NOTE: Pre-fabricated EVF / LCD cables are available from RED Digital Cinema.
• P/N 790-0157 – EVF / LCD Cable – Right Angle to Right Angle – 6 in. (0.15m)
• P/N 790-0153 – EVF / LCD Cable – Right Angle to Straight – 18 in. (0.5m)
955-0002_v3.2, Rev-A1
A
A SSD Slot
B VIEWFINDER (LCD/EVF)
Side SSD Module
COPYRIGHT © 2012 RED Digital Cinema
B
FRONT
