Setting Up and Configuring the Router
L2 Switch
Cisco RVS4000 Security Router with VPN Administrator Guide

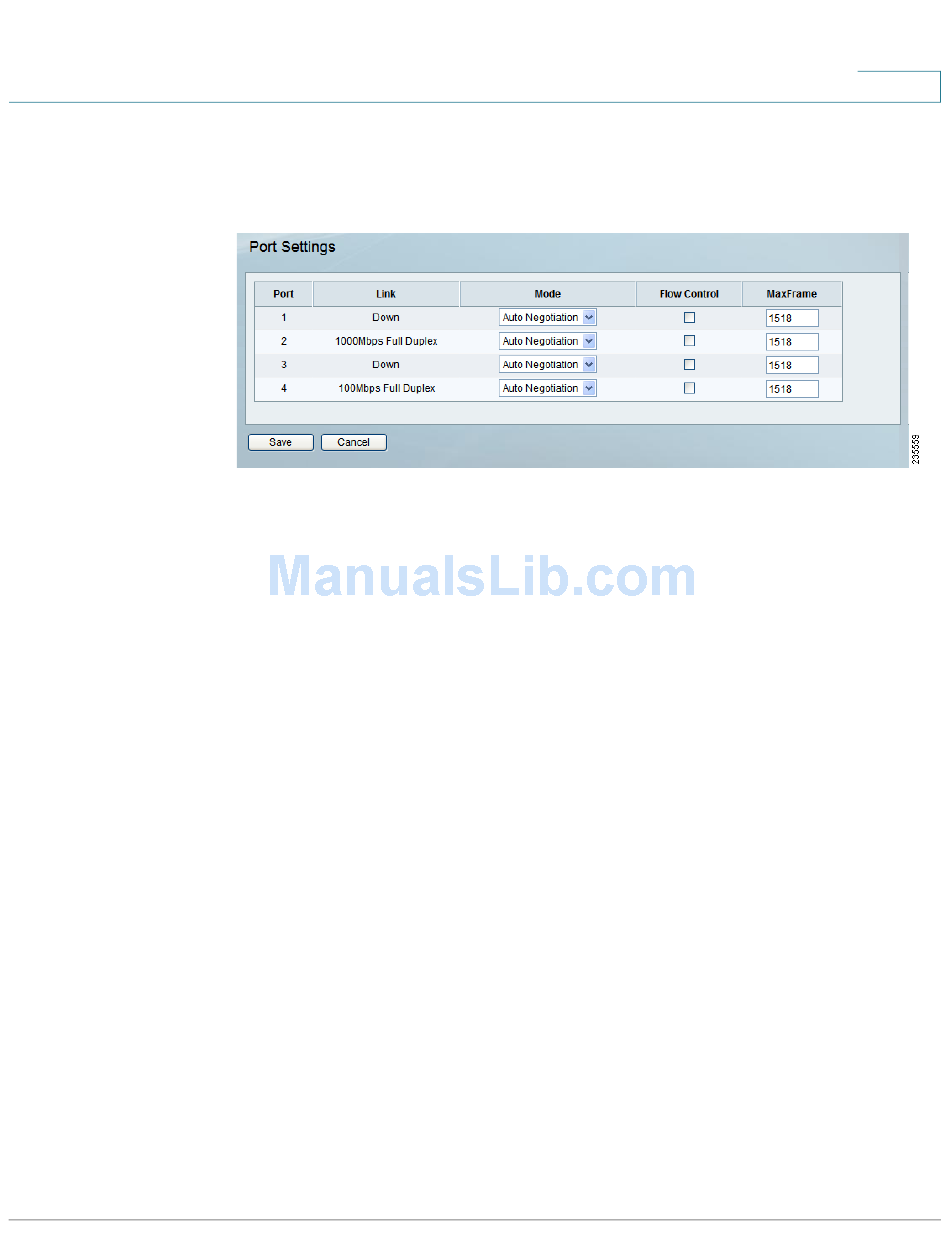

L2 Switch > Port Setting
L2 Switch > Port Setting
Port Displays the physical port number.
Link Displays the port duplex mode and speed. Full Duplex indicates that the
interface supports transmission between the device and its link partner in both
directions simultaneously. Half Duplex indicates that the interface supports
transmission between the device and the client in only one direction at a time.
Mode Select the port duplex mode and speed from the drop-down menu. You can
also select Auto Negotiation, which is a protocol between two link partners that
enables a port to advertise its transmission rate, duplex mode and flow control
abilities to its partner.
Flow Control Displays the flow control status on the port. Operates when a port is
in Full duplex mode.
MaxFrame Displays the maximum frame size the port can receive and send.
