Foreground Speaker Swivel Mount
Models FGSM, FGSMW
Installation

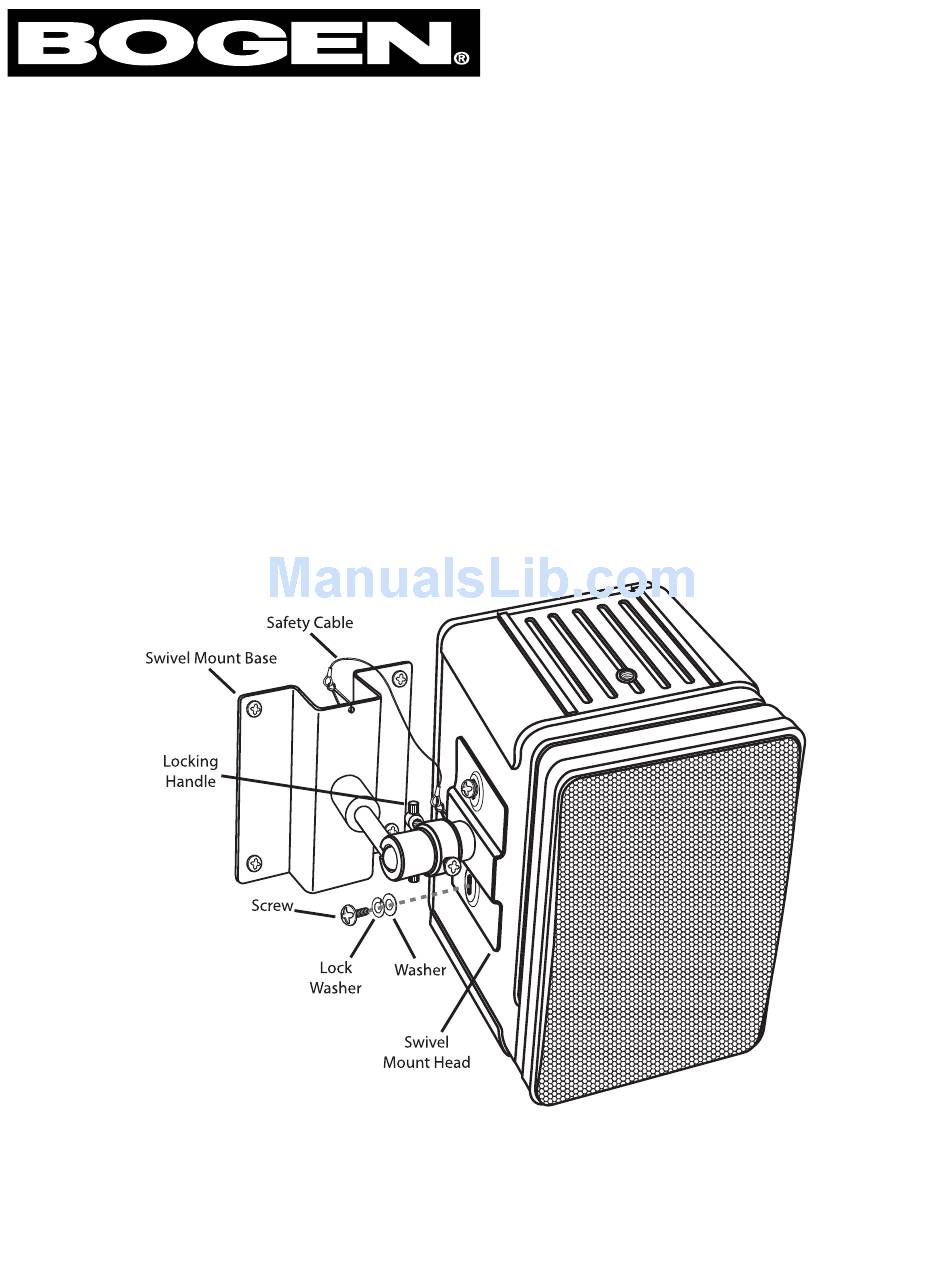

1. Attach the swivel mount base to the mounting surface using the
appropriate hardware (user-supplied).
2. Attach the swivel mount head to the speaker as shown using the screws
and washers provided with the speaker.
3. Connect the safety cable to the mounting base and speaker base as
shown.
4. Loosen the locking handle, position the speaker, and then tighten the
locking handle.
Note: Speaker style may differ from drawing.
Specifications subject to change without notice.
© 2004 Bogen Communications, Inc.
Part No. 54-2112-01B
0609
