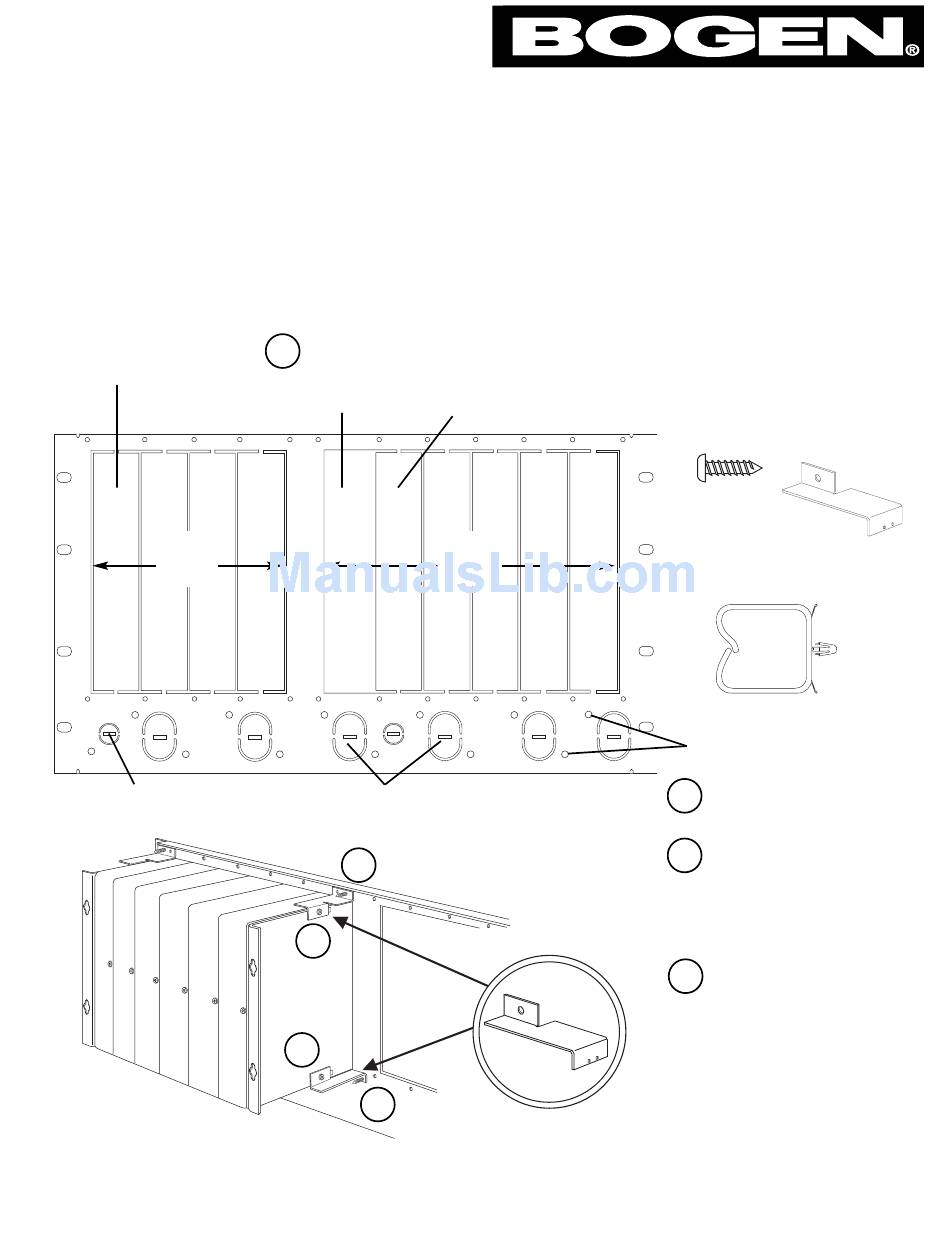

RPK88 Rack Mount Kit

Installation and Use Manual
The RPK88 Rack Mount Kit is designed to flush mount the modules of a PCM system. The RPK88 will hold up to
ten modules in two assemblies. The RPK88 allows easy mounting of these modules in a standard 19-inch audio
rack (the RPK88 is six rack spaces high). The kit includes twelve wiring saddles, eight mounting brackets, and eight
.
#6 x 1/4" screws

RPK88 Mounting Plate

Knock-out panels (nine total)
Four
Modules
Max.
Knock-out panel for power supply
power cord (as needed, two total)
1
START HERE
Remove additional panels to fit
(Panel left open)
assembled module(s) (beginning
Modules
Max.
Knock-out panels for wiring
access (as needed, six total)
3
2
2
3
here, then work left to right)
Six
#6 x 1/4"
Mounting
Screws (8)
Brackets (8)
Wiring
Saddles (12)
Plug wiring saddles into any of
12 staggered holes as needed
1
Remove appropriate knock-
out panels.
2
Attach mounting brackets to
top and bottom corners of
module assembly.
Use screws included with
modules.
Attach module assembly
3
to RPK88 using #6 x 1/4"
screws.
See PCM system instructions
for module assembly.
© 2005 Bogen Communications, Inc.
All rights reserved.
Specifications subject to change without notice.
54-2146-01E 1108
