Bogen MSM Installation Manual

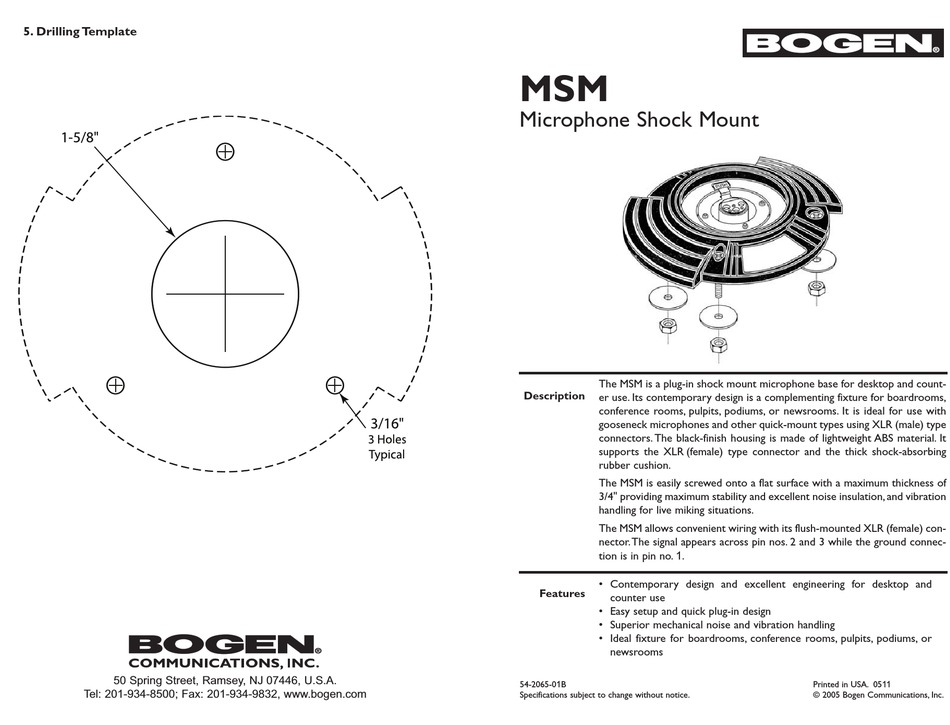

5. Drilling Template
50 Spring Street, Ramsey, NJ 07446, U.S.A.
Tel: 201-934-8500; Fax: 201-934-9832, www.bogen.com
MSM
Microphone Shock Mount
The MSM is a plug-in shock mount microphone base for desktop and count-

Description

er use. Its contemporary design is a complementing fixture for boardrooms,
conference rooms, pulpits, podiums, or newsrooms. It is ideal for use with
gooseneck microphones and other quick-mount types using XLR (male) type
connectors. The black-finish housing is made of lightweight ABS material. It
supports the XLR (female) type connector and the thick shock-absorbing
rubber cushion.
The MSM is easily screwed onto a flat surface with a maximum thickness of
3/4" providing maximum stability and excellent noise insulation, and vibration
handling for live miking situations.
The MSM allows convenient wiring with its flush-mounted XLR (female) con-
nector.The signal appears across pin nos. 2 and 3 while the ground connec-
tion is in pin no. 1.
• Contemporary design and excellent engineering for desktop and

Features

counter use
• Easy setup and quick plug-in design
• Superior mechanical noise and vibration handling
• Ideal fixture for boardrooms, conference rooms, pulpits, podiums, or
newsrooms
54-2065-01B
Specifications subject to change without notice.
Printed in USA. 0511
