Bogen RPK900 Instruction Manual

Model
RPK900
SINGLE/DUAL UNIT
RACK MOUNT KIT
INSTRUCTION MANUAL

Installation/Use Instructions:

1. Before mounting the UDR8011 Receiver into the
Dual Rack Mount Adapter, release any cables
from the rear of the receiver.
2. The UDR8011 Receiver can be placed in either the
Left or Right position. Rotate the Dual Rack Mount
Adapter and the UDR8011 Receiver upside-down
and insert the UDR8011 through one of the front
openings (Fig. 1).
3. Line up the UDR8011's mounting holes with the Dual
Rack Mount Adapter's mounting holes. Insert and tighten
the four (4) screws provided (Fig. 2).
4. Repeat Steps 1-3 when installing a second UDR8011
Receiver unit.
5. If only one UDR8011 unit is being installed, attach the
Single Unit Blank Panel with the remaining four (4)
screws provided to cover the open space (Fig. 3).
6. Install the two (2) Plastic Hole Plugs into the Single Unit
Blank Panel, or install the provided two (2) BNCF/F
adapters and cables, if necessary to relocate the
antennas to the front of Single Unit Blank Panel (Fig. 4).

Included Accessories:

Dual Unit Rack Mount Adapter (1),
Single Unit Blank Panel (1), M3 Screws (8),
BNCF/F Panel Adapters (2),
BNC Cables (2), Plastic Hole Plugs (2)

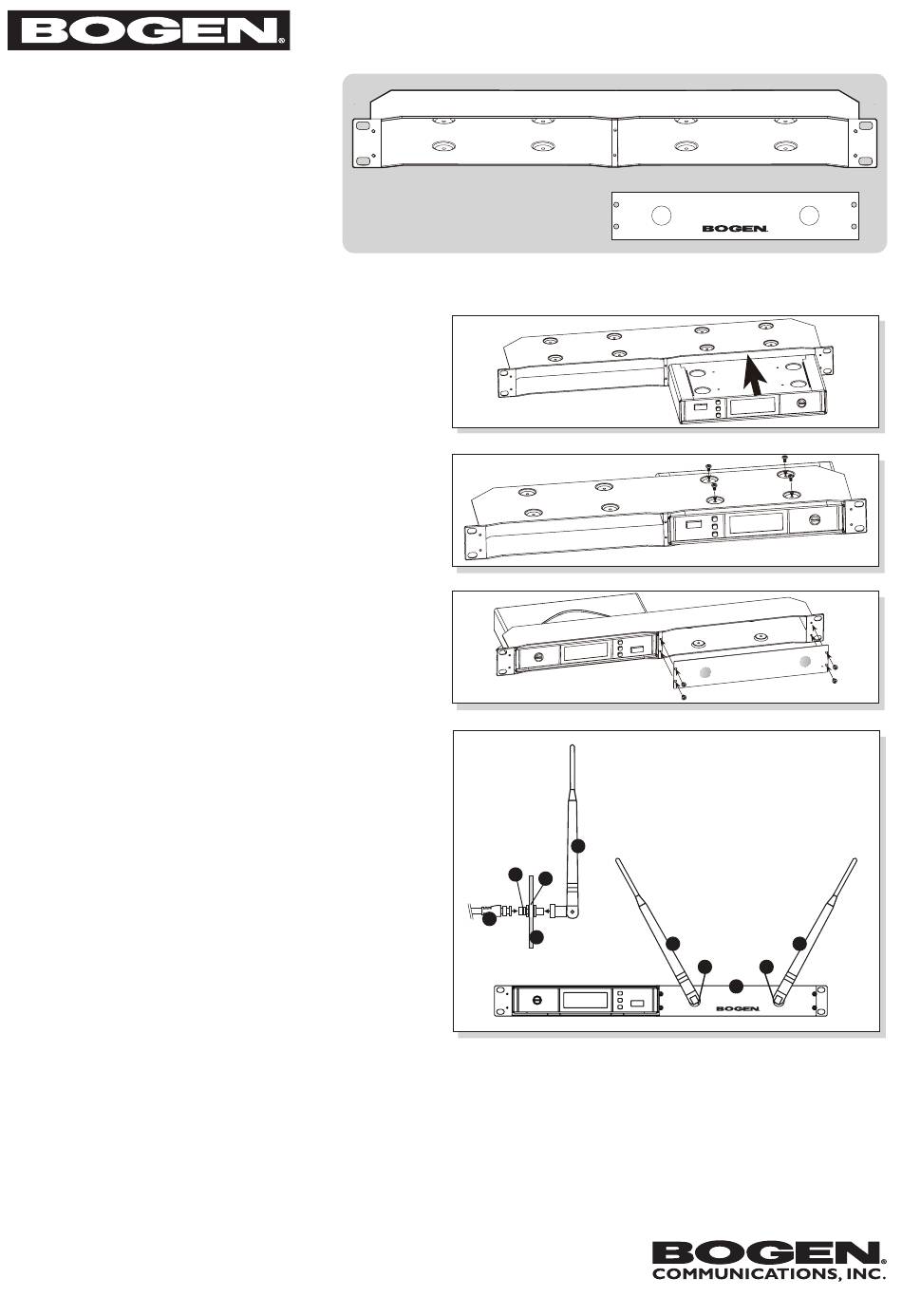

Dual Rack Mount Adapter
(Fig. 1)
8.4"
(Fig. 2)
(Fig. 3)
(Fig. 4)
SIDE
VIEW
4
5
Single Unit
Blank Panel
19"
1. SINGLE UNIT BLANK PANEL
2. SINGLE UNIT BLANK PANEL
ANTENNA HOLE(S)
3. ANTENNA(S)
4. BNCF/F PANEL ADAPTER
3
5. BNC CABLE
2
1
3
2
FRONT VIEW
3
2
1
