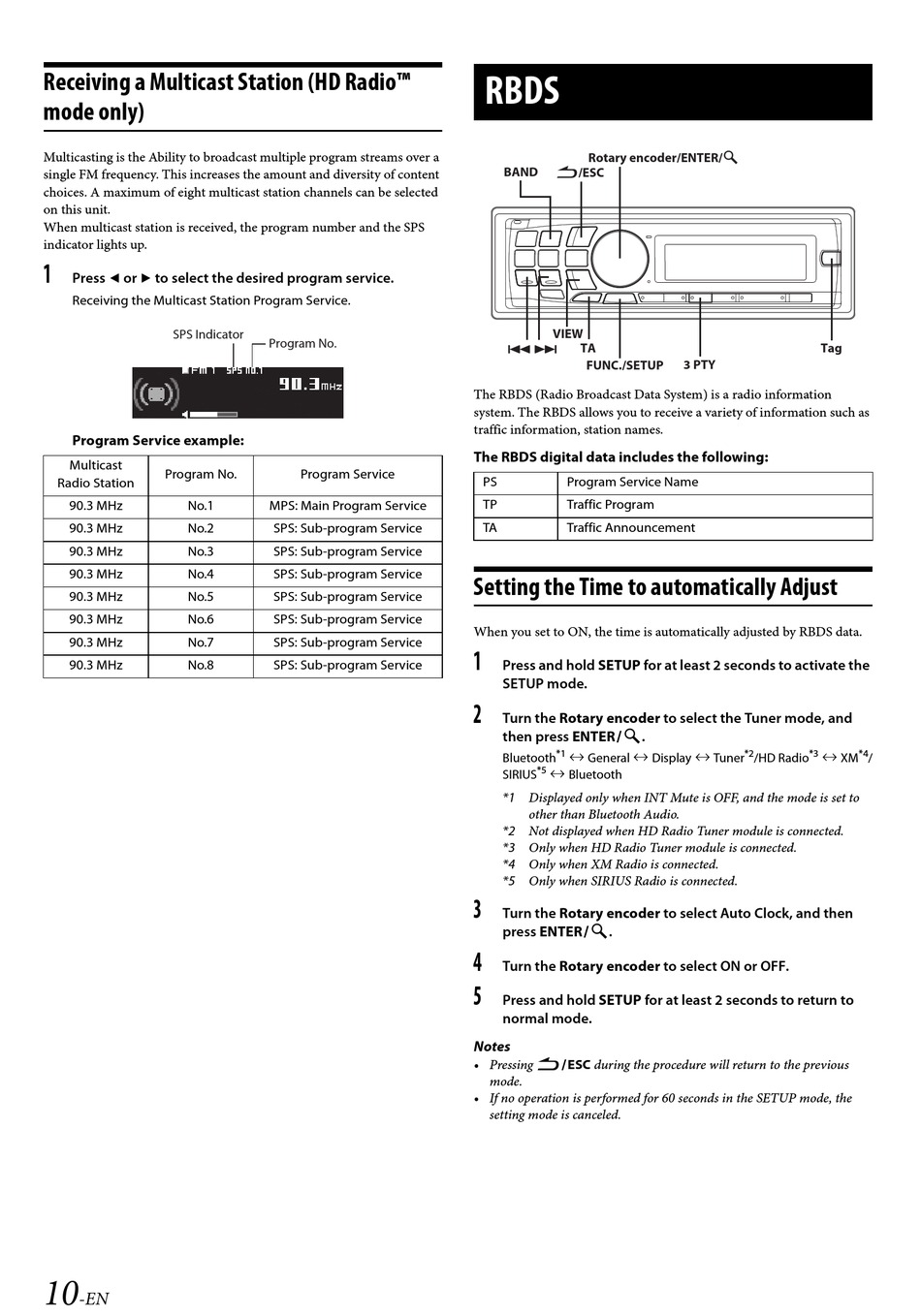

Receiving a Multicast Station (HD Radio™
mode only)
Multicasting is the Ability to broadcast multiple program streams over a
single FM frequency. This increases the amount and diversity of content
choices. A maximum of eight multicast station channels can be selected
on this unit.
When multicast station is received, the program number and the SPS
indicator lights up.
1
Press  or  to select the desired program service.
Receiving the Multicast Station Program Service.
SPS Indicator
Program Service example:
Multicast
Program No.
Radio Station
90.3 MHz No.1
90.3 MHz No.2
90.3 MHz No.3
90.3 MHz No.4
90.3 MHz No.5
90.3 MHz No.6
90.3 MHz No.7
90.3 MHz No.8
10
-EN
Program No.
Program Service
MPS: Main Program Service
SPS: Sub-program Service
SPS: Sub-program Service
SPS: Sub-program Service
SPS: Sub-program Service
SPS: Sub-program Service
SPS: Sub-program Service
SPS: Sub-program Service

RBDS

Rotary encoder/ENTER/
/ESC
BAND
VIEW
 
TA
FUNC./SETUP
The RBDS (Radio Broadcast Data System) is a radio information
system. The RBDS allows you to receive a variety of information such as
traffic information, station names.
The RBDS digital data includes the following:
PS Program Service Name
TP Traffic Program
TA Traffic Announcement

Setting the Time to automatically Adjust

When you set to ON, the time is automatically adjusted by RBDS data.
1
Press and hold SETUP for at least 2 seconds to activate the
SETUP mode.
2
Turn the Rotary encoder to select the Tuner mode, and
then press ENTER.
*1
 General  Display  Tuner
Bluetooth
*5
 Bluetooth
SIRIUS
Displayed only when INT Mute is OFF, and the mode is set to
other than Bluetooth Audio.
Not displayed when HD Radio Tuner module is connected.
Only when HD Radio Tuner module is connected.
Only when XM Radio is connected.
Only when SIRIUS Radio is connected.
3
Turn the Rotary encoder to select Auto Clock, and then
press ENTER.
4
Turn the Rotary encoder to select ON or OFF.
5
Press and hold SETUP for at least 2 seconds to return to
normal mode.
Notes
• Pressing ESC during the procedure will return to the previous
mode.
• If no operation is performed for 60 seconds in the SETUP mode, the
setting mode is canceled.
Tag
3 PTY
*2 *3
 XM
/HD Radio
*4
/
