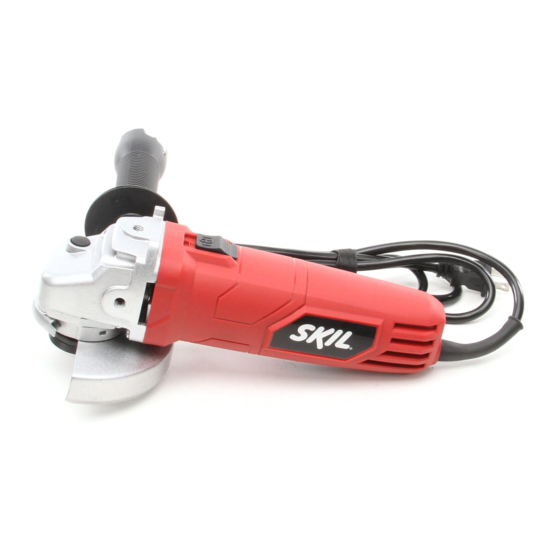

Skil 9295 Operating/Safety Instructions Manual

General power tool
Hide thumbs Also See for 9295:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

See also: Instruction Manual
SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 1

Advertisement

Table of Contents
loading

Related Manuals for Skil 9295

Summary of Contents for Skil 9295

  • Page 1 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 1...

  • Page 2: General Power Tool Safety Warnings

    SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 2 General Power Tool Safety Warnings Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE The term “power tool”...
  • Page 3 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 3 Disconnect the plug from the power source Keep cutting tools sharp and clean. Properly and/or the battery pack from the power tool maintained cutting tools with sharp cutting before making any adjustments, changing edges are less likely to bind and are easier to accessories, or storing power tools.

  • Page 4: Kickback And Related Warnings

    SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 4 particles generated by your operation. depending on direction of the wheel’s Prolonged exposure to high intensity noise may movement at the point of pinching. Abrasive cause hearing loss. wheels may also break under these conditions. Keep bystanders a safe distance away from Kickback is the result of power tool misuse work area.

  • Page 5: Safety Warnings Specific For Sanding Operations

    Risk of injury to user. The power cord must only Do not use AC only rated tools with a DC be serviced by a Skil Factory Service Center or power supply. While the tool may appear to Authorized Skil Service Station.
  • Page 6 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 6 Symbols IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
  • Page 7 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 7 Symbols (continued) IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

  • Page 8: Functional Description And Specifications

    SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 8 Functional Description and Specifications Disconnect the plug from the power source before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally. Angle Grinders Model number 9295...

  • Page 9: Wheel Guard Installation

    SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 9 Assembly WHEEL GUARD INSTALLATION REMOVE GUARD: Open guard Use wheel guard with disc release/lock latch, rotate guard until the bump grinding wheels. Always on guard lines up with the notches on the close the latch to secure the guard.

  • Page 10: Operating Instructions

    SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 10 Sanding Accessories Assembly Always use type 27 guard system with wire wheels and BACKING PAD assure that wires fit within guard. Before attaching a backing pad be sure its maximum WIRE WHEEL ASSEMBLy safe operating speed is not exceeded by the Before assembling wire wheel to this tool,...

  • Page 11: Sanding Operations

    SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 11 Hold the tool with both the workpiece. Lift the tool from the work hands while starting the tool, before releasing the switch. DO NOT turn the since torque from the motor can cause the switch “ON”...

  • Page 12: Sanding Wood

    SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 12 If the disc (accessory) is SANDING WOOD held flat or the back edge of When sanding wood the direction of the disc the disc comes in contact with the work, a motion at the contact point should parallel the violent thrust to the side may result.

  • Page 13: Tool Lubrication

    Always wear safety goggles when by a Skil Factory Service Center or Autho- cleaning tools with compressed air. rized Skil Service Station. Ventilation openings and switch levers must be kept clean and free of foreign matter.

  • Page 14: Troubleshooting

    Authorized Skil Service Center or Service Station.) 3. Inspect cord for damage. If damaged, have cord replaced by an Authorized Skil Service Center or Service Station.
  • Page 15 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 15...
  • Page 16 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 16...
  • Page 17 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 17...
  • Page 18 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 18...
  • Page 19 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 19...
  • Page 20 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 20...
  • Page 21 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 21...
  • Page 22 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 22...
  • Page 23 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 23...
  • Page 24 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 24...
  • Page 25 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 25...
  • Page 26 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 26...
  • Page 27 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 27...
  • Page 28 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 28...
  • Page 29 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 29...
  • Page 30 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 30...
  • Page 31 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 31...
  • Page 32 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 32...
  • Page 33 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 33...
  • Page 34 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 34...
  • Page 35 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 35...
  • Page 36 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 36...
  • Page 37 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 37...
  • Page 38 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 38...
  • Page 39 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 39...
  • Page 40 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 40...
  • Page 41 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 41...
  • Page 42 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 42...
  • Page 43 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 43...
  • Page 44 SM 2610008537 11-09:SM 2610008537 11-09 11/12/09 8:33 AM Page 44 2610008537 11/09 Printed in China...
