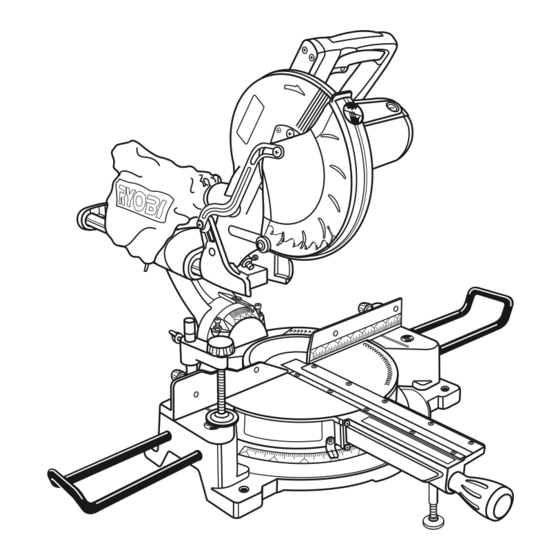

Ryobi TSS101L Repair Sheet
10 in. sliding miter saw
Hide thumbs
Also See for TSS101L:
- Operator's manual (36 pages) ,
- User manual (36 pages) ,
- Operator's manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for Ryobi TSS101L
Summary of Contents for Ryobi TSS101L
- Page 1 RYOBI 10 in. SLIDING MITER SAW w/LASER MODEL NO. TSS100L REPAIR SHEET...
- Page 2 RYOBI 10 in. SLIDING MITER SAW w/LASER – MODEL NUMBER TSS100L 44 18 35 19 91 90 115 117 89 110 137 35 14 15 19 18 153 154 62 178 145 146...
-
Page 3: Parts List
RYOBI 10 in. SLIDING MITER SAW w/LASER – MODEL NUMBER TSS100L The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your MITER SAW or when ordering repair parts. PARTS LIST PART PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 4 08910011814 Extension Bar, Right .........1 1 0891001181 Extension Bar, Left ...........1 5 0891001105 Spring Washer ..........6 0891001100 Screw (45°) ............1 6 08910011806 * Washer (M14) ...........1 089100118001 Clamp .................. - Page 4 RYOBI 10 in. SLIDING MITER SAW w/LASER – MODEL NUMBER TSS100L The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your MITER SAW or when ordering repair parts. PARTS LIST PART PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 67 08910011067 Spring Washer .......... 100 089100118701 Laser Assembly ..........1 68 08910011068 * Screw (M6 x 0 mm Hex Soc. Hd.) ....5 101 08910011101 Lock Down Pin Button ........1 69 08910011807 Tube ..............1 10 0891001110 Elastic Pin .
- Page 5 RYOBI 10 in. SLIDING MITER SAW w/LASER – MODEL NUMBER TSS100L The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your MITER SAW or when ordering repair parts. PARTS LIST PART PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 165 08910011165 * Square Nut (M5) ..........4 1 089100111 Retaining Ring ..........1 166 08910011801 * Screw (M.9 × 16 mm) ........1 14 0891001114 Gear ..............1 167 08910011167 Terminal Block ..........1...
- Page 6 RYOBI 10 in. SLIDING MITER SAW w/LASER – MODEL NUMBER TSS100L The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your MITER SAW or when ordering repair parts. PARTS LIST PART PART NUMBER DESCRIPTION QTY. NUMBER DESCRIPTION QTY. 196 089100118700 Motor Assembly (Inc. Key Nos. 14, 18-19, 5, 40-48, 5-57, (Inc. Key Nos. 14, 18, 19, 5, 7, 8, 5, 6, 60-6, 64-65, 67-68, 70, 8, 95, 99, 119, 17, 18, 19, 140, 141, 14, 145, 146, 147, 155 166-169, 17 and 190-194) .......1 148, 149, 150, 151, 15, 15, 154 and 197) ..1 0 08910011750 Slide Bar Guard Support Bracket Assembly...
-
Page 7: Wiring Diagram
RYOBI 10 in. SLIDING MITER SAW w/LASER – MODEL NUMBER TSS100L YELLOW LEAD SWITCH BRUSHES BROWN LEAD YELLOW LEAD YELLOW LEAD BLACK LEAD MOTOR POWER CORD WHITE LEAD WHITE LEAD WIRING DIAGRAM...
