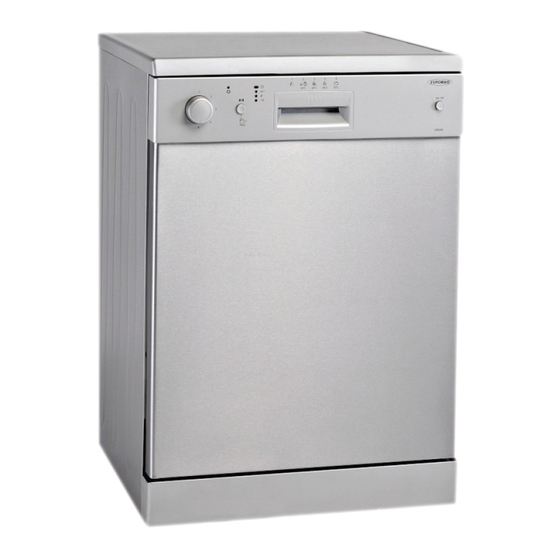

- Page 1 Dishwasher Instruction Manual...
- Page 2 Dear customer, Please read carefully right through this instruction booklet before installing or operating your dishwasher. The following instructions should prevent the risk of personal injury and/or damage to the appliance. Please keep these documents in a safe place for later reference. This operating manual has been written for several different machines, and some of the features mentioned here may not apply to your particular model.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Getting To Know The cleaning results are unsatisfactory Your Machine Service View of the Machine 2 Safety Instructions Before Installation Before First Use Child Safety Technical Specifications For daily operation Problems What should not be washed in your dishwasher 3 Directions for Assembly Safety notes for installation... -
Page 4: Getting To Know Your Machine
Getting To Know Your Machine View of the Machine �� � � �� � � � � � � � Upper dish basket with shelf �� Guide rail for the upper dish basket Cutlery basket Detergent dispenser Door Control panel Filters Lower sprayer arm Lower basket... -
Page 5: Safety Instructions
Technical Specifications our specifications and designs without prior notice. Permitted water pressure: 0,3 –10 bar (= 3 – 100 N/cm² = 0,01-1,0Mpa) Note for Testing Institutes Electrical connection: 220-240 Volts, The necessary information for 10 Amps (see type plate) performance testing will be provided Output: 1900-2200 W upon request. -
Page 6: For Daily Operation
• manufacturers of the detergents. Do not pull on the cable – pull on • Never leave children unsupervised the plug. Turn off the water supply while the appliance is open, as tap. the appliance may still contain detergent leftovers. What should not be washed in •... -
Page 7: Directions For Assembly
Directions for Assembly Safety notes for installation Installing Your Dishwasher • Prior to installing and using your Choose a suitable location for your appliance, please check it for possible dishwasher. Take care to ensure transit damage. that the appliance is stable on a level surface. -
Page 8: Water Connection
Water connection AQUASAFE+ (some models) • The Aquasafe+ System protects Your dishwasher has cold water against water damage hich may be inlet hose (up to 25°C) • caused at the water inlet hose. The dishwasher may not be connected to open warm water Do not immerse the system’s valve devices or flow-through water box into water;... -
Page 9: Water Drainage
Water drainage Extension hoses If a hose extension is required, a Connecting the drainage hose. drainage hose of equal quality must be used. Take care to ensure that the drainage hose is not bent or squeezed. The maximum length must not exceed 4m. -
Page 10: Using Your Dishwasher
Warning the product, it’s packaging or in the Packaging materials may be manual. dangerous to children.Reusable substances may be dropped off at your Materials used are recyclable local disposal facilities. You may obtain according to their labelling. Reuse, further information from your local recycling of materials and further authorities and disposal facilities. -
Page 11: Filling The Rinse Aid Dispenser
Filling the Rinse Aid Dispenser Rinse aids allow washing water to rinse off more cleanly and prevent watermarks or streaks on the dishes. Only use rinse aid designed for use in dishwashers. Note 1013 � If you use “2 in 1” or “3 in 1“ detergents / tablets, you do not need an additional rinse aid. -
Page 12: Detergent
Detergent When the dishwasher is fully loaded and the dishes are very dirty, we Please use detergents produced recommend filling the detergent specially for the dishwashers in your container up to the 25 cm³ mark. When machine. the dishes are less dirty, it is generally sufficient to fill the detergent up to the Keep the opened detergent packages 15 cm³... -
Page 13: Multipurpose Detergents
Multipurpose Detergents Make sure that salt and rinse aid compartments are full. The best washing results in dishwashers is obtained by using Set the water hardness to its highest detergent, rinse aid and water degree and perform an empty run. softening salt individually. -
Page 14: Suggestions For Loading The Dishwasher
Attention 4 folding plate support rods Knives and other utensils with sharp (depending on the model) tips and edges must be placed There are four separate “folding plate horizontally into the upper basket due support rods” in the lower basket of to risk of injury. - Page 15 2 folding plate support rods � � (depending on the model) There are four separate “folding plate support rods” in the lower basket of your dishwasher designed to allow 1054 you more space to accommodate saucepans and large bowls in the lower basket.
- Page 16 Variable cutlery basket (depending on the model) The variable cutlery basket can be separated into 3 parts depending on the amount of cutlery and the degree of dirtiness. Small cutlery basket sections also fit into the upper basket. � To do this, turn the lock on the handle to the right (A).
- Page 17 Basket insert with variable height settings (depending on some models) You can also use this insert in the lower basket for glasses and long- handled cutlery / utensils. If you do not need the insert, fold the rack upwards at the angle shown (A). Push the entire insert upwards (B).
-
Page 18: Loading Suggestions
Loading suggestions Load the upper basket with dessert 1027 plates, cups, glasses etc. Upper basket with variable height setting (depends on some models) The upper basket is equipped with a lifting mechanism which enables you to change the height of the basket without having to remove it from the 1021 dishwasher, even if it is fully loaded. - Page 19 Height setting with empty basket (depends on the model) In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights. Release the latches on both the right � and left tracks of the upper basket by 1022 pushing them outwards (C).
- Page 20 Glass Support (depends on the model) When placing the glasses or goblets with a long grip, lean them against the glass support, the edge of the basket or the shelf but not against the other pieces. Do not lean the long glasses against each other, otherwise they do not remain stable during washing cycle 1025...
-
Page 21: How To Clean Your Dishwasher
How to clean your dishwasher Cleaning your machine at regular Warning intervals ensures longer product life Do not operate your dishwasher and reduces the risk of reccurring without a filter. Ensure that your filters problems. are correctly installed. Clean the filters regularly. -
Page 22: Cleaning The Spray Arms
Cleaning the spray arms Cleaning the filter inset in the water inlet hose (depending on the model) Dirt or calcium residue may block the Dirt from deposits in the water pipes is nozzles on the spray arms. For this prevented by a filter in the water inlet reason, regularly check the spray hose. -
Page 23: Troubleshooting
Troubleshooting: What to do if the dishwasher will not run • Check that the mains plug is properly connected. • Are all fuses working? • Is the water supply fully turned on? • Is the dishwasher door closed firmly? • Have you pressed the On/Off button? •... - Page 24 Inadequate rinse aid Increase rinse aid setting or add rinse aid into rinse aid compartment. Unsealed detergent dispenser lid Always ensure that the detergent compartment lid is closed tightly after every detergent filling process. Drying Disorderly placement Load your dishes as described in the manual. Inadequate rinse aid Increase rinse aid setting or add rinse aid into rinse aid compartment.
- Page 25 1035 Lime Stains, Hazy Look Inadequate rinse aid Increase rinse aid setting or add rinse aid into rinse aid compartment. Insufficient water softening In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.
- Page 26 1041 Scratch / Break In Glassware Kitchenware containing Aluminum Kitchenware that contains aluminum should not be washed in dishwashers. Salt leakage* Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine.
- Page 27 1038 Detergent Remains In The Detergent Dispenser Damp detergent compartment Make sure that the detergent dispenser is well dried prior to filling it with detergent. Putting detergent in the detergent dispenser long before washing Take care that detergent is put shortly before startup of washing. Preventing opening of detergent dispenser lid during washing Ensure that the lid of detergent dispenser is not opened during loading the dishes so that entering of water from the impellers into it is prevented.
- Page 28 your machine after scraping the excessive soil on them and do not tightly close the door of the machine. Every other day, perform washing without detergent in the shortest program for products with program selecting feature. 1042 Foam Loading the dishes into the dishwasher without completely drying after washing them with hand-wash detergent.
- Page 29 17 1827 0100-00...
-
