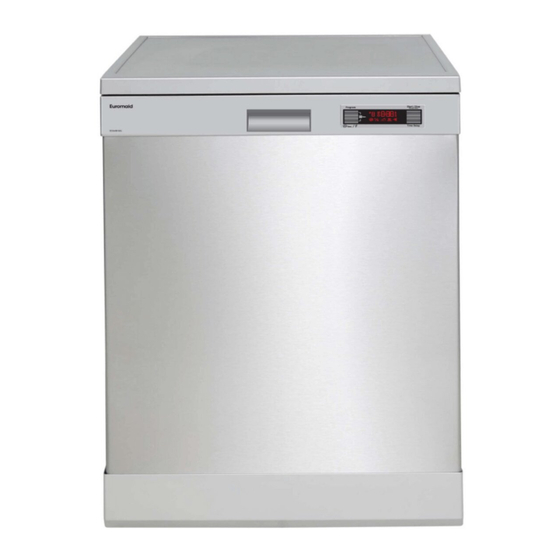

Summary of Contents for Euromaid EDWB16S
- Page 1 User Manual...
- Page 2 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
CONTENTS Upper basket multipurpose service General safety ........4 rack ............21 Intended use ..........4 Adjusting the height of the upper Children’s safety ........5 basket ..........22 Disposing of packaging material ..5 Collapsible upper basket wires ..23 Transportation of the product ....5 Height setting with empty basket .. -
Page 4: General Safety
• • • • • • • • • • • • • • • • 4 /48 EN Dishwasher / User’s Manual... -
Page 5: Children's Safety
• • • • • • • 5 / 48 EN Dishwasher / User’s Manual... -
Page 6: Compliance With Weee Directive And Disposing Of The Waste Product
6 /48 EN Dishwasher / User’s Manual... -
Page 7: Overview
Dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid (depends on model) 12. Upper basket rail 13. -
Page 8: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 9: Appropriate Installation Location
Installation Refer to the nearest Authorised Service Appropriate installation Agent for installation of your product. To location make the product ready for use, make sure • Place the product on a solid and flat that the electricity, tap water supply and floor that has sufficient load carrying water drainage systems are appropriate capacity! The product must be installed... -
Page 10: Connection To The Drain
Installation floor. A discharge hose longer than 4 meters Permitted water temperature: up to 25°C ( 60°C for products causes dirty washing. equipped with Aquasafe+; please Attach the water discharge hose to the refer toAquasafe+ section ) drainpipe without bending it. Tightly fix the water discharge hose to the drainpipe in The dishwasher should be connected to cold order to prevent any dislocation of the water... -
Page 11: Aquasafe
Installation • Aquasafe+ The voltage and allowed fuse or breaker protection are specified in the (depends on model) “Technical specifications” section. If the The Aquasafe+ system protects against current value of the fuse or breaker in water leaks that may occur at the hose inlet. the house is less than 16 Amps, have Water contact with the valve box of the a qualified electrician install a 16 Amp... -
Page 12: Tips For Energy Saving
Preparation 2. Put suggested amount of powder, Tips for energy saving liquid/gel or tablet detergent in the Following information will help you use the reservoir. product in an ecological and energy-efficient manner. Inside the detergent dispenser Wipe away any coarse food remnants on the there are level markings that dishes before putting them in the product. -
Page 13: Tablet Detergents
Preparation Observe the instructions of the detergent manufacturer on the package when using tablet detergents. Contact the detergent manufacturer if your dishes are wet and/or if you notice limescale spots particularly on your glasses after the washing programme is over when using a tablet detergent. -
Page 14: Rinse Aid
Preparation 4. If there are stains on tableware items Rinse aid after washing, level must be increased The rinse aid used in and if there is a blue trace after wiping dishwashers is a special them by hand, it must be decreased. combination that aims to This is set to position 3 as factory increase drying efficiency and... -
Page 15: Placing The Dishes Into The Dishwasher
Preparation Placing the dishes into the dishwasher You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way. • Wipe away any coarse food remnants (bones, seeds, etc.) on the dishes before placing them in the dishwasher. - Page 16 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware 16 /48 EN Dishwasher / User’s Manual...
-
Page 17: Cutlery Basket
Preparation Cutlery basket (depends on model) Cutlery basket is designed to wash your dishes such as knife, fork, spoon, etc. in an efficient manner. Since the cutlery basket can be moved (A, B), you can create more space while placing your dishes in the lower basket and free up space for your dishes of different sizes. -
Page 18: Collapsible Lower Basket Tines
Preparation Collapsible lower basket Bringing the tines to the horizontal position by holding tines them from the tips may cause (depends on model) them to bend. Therefore, it will There are foldable tines (A) located at the be appropriate to bring the tines in the middle to horizontal or lower basket of the machine are designed vertical position by holding them... -
Page 19: Tray Wash Supports
Preparation SoftTouch Accessory (depends on model) The SoftTouch Accessory found in the lower basket of your machine enables a safe washing for your fragile glasses. Bringing the tines to the horizontal position by holding them from the tips may cause them to bend. -
Page 20: Lower Basket Multipurpose / Height Adjustable Service Rack
Preparation Lower basket multipurpose Make sure that the impeller does / height adjustable service not touch the dishes you placed rack on the racks. (depends on model) To close the racks: This accessory located at the lower basket Fold the rack (A). of your machine allows you to easily wash 2. -
Page 21: Lower Basket Bottle Wire
Preparation Lower basket bottle wire Upper basket multipurpose service rack (depends on model) The bottle wire is designed for easier (depends on model) washing of long pieces with wide mouths. This accessory located at the upper basket You may take out the bottle wire from the of your machine allows you to easily wash basket when not in use by pulling it out from pieces such as extra long ladles and bread... -
Page 22: Adjusting The Height Of The Upper Basket
Preparation To lower the basket, while it is in the Adjusting the height of the uppermost position; upper basket Hold the upper basket wires with both (depends on model) hands, slightly lift up the basket and The upper basket height adjustment simultaneously push and release the mechanism has been designed for you to latches shown in the figure (B). -
Page 23: Collapsible Upper Basket Wires
Preparation Collapsible upper basket wires (depends on model) You can use collapsible wires when you need a larger space for your dishes in the upper basket of your machine. To bring the collapsible wires into horizontal position, grab the wire from the middle position and push them in the direction of arrow in the figure. -
Page 24: Ceiling Cutlery Basket
Preparation Ceiling cutlery basket (depends on model) Ceiling cutlery basket is designed to wash your cutlery items such as forks, spoons and etc. by placing them between the bars on the basket. When the central tray is in the lower position, you can load long/high items such as coffee cups, ladles, etc. -
Page 25: Silverware Basket Piece
Preparation Silverware basket piece (depends on model) You can place your forks, spoons and etc. to upper basket with the additional piece in the figure.. It is recommended that you should place the silverware basket piece on front left corner of the upper basket by detaching the Upper basket height adjustable rack. - Page 26 On/Off key Programme Selection key Tablet detergent function(3sn) / Half Load function / Fast+ Function Display Time Delay key Start/Pause/Cancel key Handle 14. Auxiliary Function indicators Programme indicator Salt indicator Tablet detergent function 10. Rinse aid indicator Half Load function 11.
-
Page 27: Keys
Operat ng the product Keys Preparing the machine On/Off Key Open the door of the dishwasher. It is used to switch on or off the machine. 2. Place the dishes in accordance with the When switching on, the machine turns on in instructions in the user manual. - Page 28 Operat ng the product 28 /48 EN Dishwasher / User’s Manual...
-
Page 29: Auxiliary Functions
Auxiliary functions Tablet detergent function Allows to obtain a better drying performance Washing programmes of your dishwasher from the multi-purpose detergents called as are designed to obtain the best cleaning all in one detergents such as 2in1, 3in1, 4in1, effect, considering the type of the soiling, 5in1 and etc., depending on the hardness soiling degree and properties of the dishes level of the tap water. -
Page 30: Scheduling The Washing Time
Programming the washing You can select and start a new time programme or function after the time delay function is cancelled. Time Delay If an economical electricity tariff is applied Time delay function cannot be in your region, you can use the time delay set after the programme has function to wash your dishes during started. -
Page 31: Cancelling The Programme
Operat ng the product Overflowing Warning Pay attention not to open the If the machine intakes door of the machine when it too much water or there is leakage at any is running. Stop the machine of the components, then the machine by pressing the Start/Pause/ will detect this and E:01 icon will flash on Cancel key if you have to open... -
Page 32: Adjusting The Amount Of Rinse Aid
Adjusting the amount of rinse aid 1. After turning on the machine, press and hold Program and Function keys simultaneously for 3 seconds to enter the settings menu. 2. Press Program key to move to position (P) on the display. 3. -
Page 33: Cleaning The Outer Surface Of The Product
Maintenance and cleaning Service life of the product extends and Cleaning the filters frequently faced problems decrease if it is Clean the filters at least once a week in order cleaned at regular intervals. for the machine operates efficiently. Check if Unplug the product and turn off food residues are left on the filters. -
Page 34: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 35: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller. - Page 36 Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •...
- Page 37 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 38 Troubleshooting There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 39 Troubleshooting • Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing. • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers.
- Page 40 Troubleshooting Foam forms in the machine. • Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine. >>> Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes before placing them into the machine. Removing the coarse soil on the dishes under tap water, with a tissue paper or fork will be sufficient.
- Page 41 4 /48 EN Dishwasher / User’s Manual...
- Page 42 4 /48 EN Dishwasher / User’s Manual...
- Page 43 The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement; You are unable to provide us with reasonable proof of purchase for the product; the breakdown occurs after the expiry of the express warranty period set out in section 1 or 3.
- Page 44 5. Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 45 ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ 4 /48 EN Dishwasher / User’s Manual...
- Page 46 ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ 4 /48 EN Dishwasher / User’s Manual...
- Page 47 ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ 4 /48 EN Dishwasher / User’s Manual...
- Page 48 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
