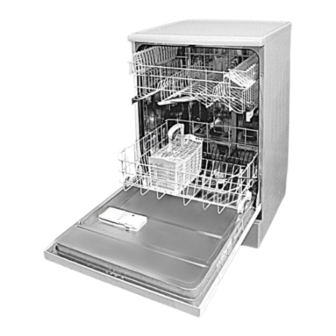

- Page 1 Dishwasher Instruction Manual...
- Page 2 Dear customer, Please read carefully right through this instruction booklet before installing or operating your dishwasher. The following instructions should prevent the risk of personal injury and/or damage to the appliance. Please keep these documents in a safe place for later reference.
-
Page 3: Table Of Contents
Filling the Detergent Dispenser Detergent Multipurpose Detergents Loading the dishwasher Suggestions for loading the dishwasher Loading suggestions 5 How to clean your dishwasher Cleaning the filters Cleaning the spray arms 6 Troubleshooting: What to do if the dishwasher will not run... -
Page 4: Getting To Know Your Machine
Getting To Know Your Machine View of the Machine �� � � �� � � � � � � � Upper dish basket with shelf �� Guide rail for the upper dish basket Cutlery basket Detergent dispenser Door Control panel Filters Lower sprayer arm Lower basket... -
Page 5: Safety Instructions
2006/95/EC: Low Voltage Directive the appliance besides your contact 2004/108/EC: EMV Directive information in the e-mail. The model DIN EN 50242: Electrical dishwasher code and stock code information can for home use Testing procedures for be found on the rating label, which is practical service conditions placed on the side of the door. -
Page 6: For Daily Operation
What should not be washed in • The water in the dishwasher is not your dishwasher drinking water. Danger of caustic • Rust sensitive steel parts injuries. -
Page 7: Directions For Assembly
Installing Your Dishwasher • Prior to installing and using your Choose a suitable location for your appliance, please check it for possible dishwasher. Take care to ensure transit damage. that the appliance is stable on a level surface. • If the appliance is damaged, please Unevenness in the floor can be contact your supplier. -
Page 8: Water Connection
Water connection AQUASAFE+ (some models) • The Aquasafe+ System protects Your dishwasher has cold water against water damage hich may be inlet hose (up to 25°C) • caused at the water inlet hose. The dishwasher may not be connected to open warm water Do not immerse the system’s valve... -
Page 9: Water Drainage
Water drainage Extension hoses If a hose extension is required, a Connecting the drainage hose. drainage hose of equal quality must be used. Take care to ensure that the drainage hose is not bent or squeezed. The maximum length must not exceed 4m. -
Page 10: Using Your Dishwasher
Disable any door and electronic equipment. This is locks. indicated by a symbol to be found on Using Your Dishwasher Important The electricity and water connections of the dishwater must be in compliance with the instructions in this booklet. -
Page 11: Filling The Rinse Aid Dispenser
Filling the Rinse Aid Dispenser Rinse aids allow washing water to rinse off more cleanly and prevent watermarks or streaks on the dishes. Only use rinse aid designed for use in dishwashers. Note 1013 � If you use “2 in 1” or “3 in 1“ detergents / tablets, you do not need an additional rinse aid. -
Page 12: Detergent
Detergent When the dishwasher is fully loaded and the dishes are very dirty, we Please use detergents produced recommend filling the detergent specially for the dishwashers in your container up to the 25 cm³ mark. When machine. the dishes are less dirty, it is generally... -
Page 13: Multipurpose Detergents
Loading the dishwasher 2in1: Those contain detergent, rinse aid or water softening salt. General: 3in1: Those contain detergent, rinse Before you load the dishwasher with aid and water softening salt. dishes • 4in1: Those containing glass protectors Remove coarse food leftovers •... -
Page 14: Suggestions For Loading The Dishwasher
Please do not overload your saucepans and large bowls in the dishwasher and pay attention to the lower basket. You can either fold each notes regarding dishes which are section (1, 2, 3, 4) individually or, all at suited to the dishwasher. - Page 15 � (depending on the model) There are four separate “folding plate support rods” in the lower basket of your dishwasher designed to allow 1054 you more space to accommodate saucepans and large bowls in the lower basket. You can either fold each section (1, 2) individually or, all at once, to create a large empty space.
- Page 16 Variable cutlery basket (depending on the model) The variable cutlery basket can be separated into 3 parts depending on the amount of cutlery and the degree of dirtiness. Small cutlery basket sections also fit into the upper basket. � To do this, turn the lock on the handle to the right (A).
- Page 17 Basket insert with variable height settings (depending on some models) You can also use this insert in the lower basket for glasses and long- handled cutlery / utensils. If you do not need the insert, fold the rack upwards at the angle shown (A). Push the entire insert upwards (B).
-
Page 18: Loading Suggestions
1021 dishwasher, even if it is fully loaded. The height of the upper basket was set to its lowest position at the factory. �... - Page 19 Height setting with empty basket (depends on the model) In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights. Release the latches on both the right � and left tracks of the upper basket by 1022 pushing them outwards (C).
- Page 20 Glass Support (depends on the model) When placing the glasses or goblets with a long grip, lean them against the glass support, the edge of the basket or the shelf but not against the other pieces. Do not lean the long glasses against each other, otherwise they do not remain stable during washing cycle 1025...
-
Page 21: How To Clean Your Dishwasher
How to clean your dishwasher Cleaning your machine at regular Warning intervals ensures longer product life Do not operate your dishwasher and reduces the risk of reccurring without a filter. Ensure that your filters problems. are correctly installed. Clean the filters regularly. -
Page 22: Cleaning The Spray Arms
Cleaning the spray arms Cleaning the filter inset in the water inlet hose (depending on the model) Dirt or calcium residue may block the Dirt from deposits in the water pipes is nozzles on the spray arms. For this prevented by a filter in the water inlet reason, regularly check the spray hose. -
Page 23: Troubleshooting
• Is the dishwasher door closed firmly? • Have you pressed the On/Off button? • Is the filter on the water intake and dishwasher clogged? The cleaning results are unsatisfactory 1033 Uncleaned Dishes Disorderly placement Load your dishes as described in the manual. - Page 24 Increase rinse aid setting or add rinse aid into rinse aid compartment. Unloading the machine right after dishwashing Do not unload your dishwasher right after washing process is completed. Slightly open the door and wait for evacuation of the inside steam for a while.
- Page 25 1035 Lime Stains, Hazy Look Inadequate rinse aid Increase rinse aid setting or add rinse aid into rinse aid compartment. Insufficient water softening In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.
- Page 26 Recheck the salt box cover after the program is completed. Grounding line Check if your dishwasher is connected to the actual grounding line. Otherwise, the static electric created in the dishwasher may remove the protective coating on metal surfaces and cause blackening and corruption.
- Page 27 Connect the drainage hose as described in the manual. Odour Odor of new dishwasher A new dishwasher has a peculiar odor. It will fade out after a couple of washing. Clogged filters From time to time, remove the complete filter system as shown in the manual and wash it under flowing water.
- Page 28 1042 Foam Loading the dishes into the dishwasher without completely drying after washing them with hand-wash detergent. Hand-wash detergents do not contain antifoam. There is no need to hand- wash the dishes with detergent before loading the dishes into the machine.
- Page 29 17 1827 0100-00...
