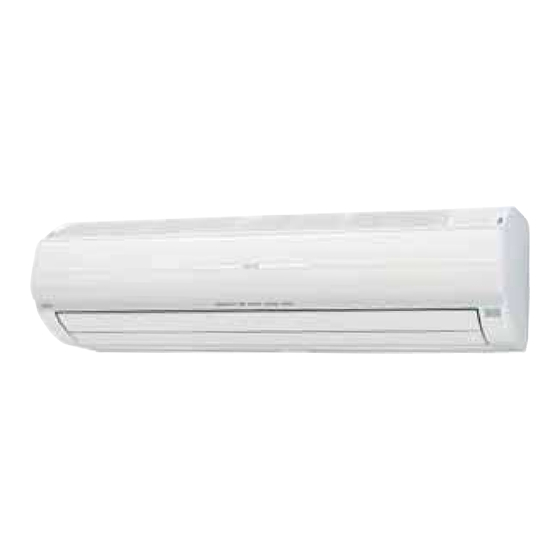

Fujitsu AW?Z14LBC User Manual

Ceiling wall type; single type
Hide thumbs
Table of Contents

Advertisement

Quick Links

1. CEILING WALL TYPE :
AWZ14LBC
AWZ18LBC
AWZ24LBC

INDOOR UNIT

R410A
D2D_AW001E/02
2009.10.01

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu AW?Z14LBC

Summary of Contents for Fujitsu AW?Z14LBC

  • Page 1: Indoor Unit

    R410A INDOOR UNIT 1. CEILING WALL TYPE : AWZ14LBC AWZ18LBC AWZ24LBC D2D_AW001E/02 2009.10.01...
  • Page 2 FEATURE MODEL : ■ AWZ14LBC AWZ18LBC AWZ24LBC AOZ14LBC AOZ18LBC AOZ24LBT FEATURES ■ Energy saving CLASS A cleared ● with a margin to spare Automatic filter cleaner ● Entire filter is cleaned automatically in approx. 2 minutes Since the filter is cleaned automatically, energy saving capability is displayed without regard to the load on the air conditioner. Bacteria eliminating countermeasure ●...

  • Page 3: Super Quiet

    ALL DC ● DC fan motor V-PAM control V-PAM technology makes a compressor more powerful. DC compressor Front view "Vertical airflow" provides "Horizontal airflow" does not blow ● ● powerful floor level heating cool air directly at the occupants in the room Increased heat exchange efficiency Increased heat exchange efficiency Comfortable heating area...

  • Page 4: Remote Controller

    REMOTE CONTROLLER 2-11 WIRELESS REMOTE CONTROLLER FEATURES ■ â Four kinds of timer setup (ON / OFF / PROGRAM / SLEEP) are possible. â Four kinds of timers. Easy operation. Built-in timers ● Select from four different timer programs (On/Off/Program/Sleep). Program timer ●...

  • Page 5: Display Panel

    FUNCTIONS ■ Signal Transmitter START/STOP button SET TEMP. button ( COOL button DRY button HEAT button SLEEP button AUTO button FAN button COIL DRY button FILTER button HI-POWER button SUPER QUIET button FAN CONTROL button ECONOMY button SWING button AIR DIRECTION (Left-Right) button AIR DIRECTION (Up-Down) button ON TIMER button OFF TIMER button...

  • Page 6: Specifications

    SPECIFICATIONS CEILING WALL Type INVERTER HEAT PUMP Model name AWZ14LBC AWZ18LBC AWZ24LBC Power source 230V~ 50Hz Available voltage range 198-264V~ 50Hz Cooling European energy label Heating 4.20 5.20 7.10 Rated BTU/h 14,300 17,700 24,200 Cooling 0.9-5.3 0.9-5.9 0.9-8.0 Min.-Max. BTU/h 3,100-18,100 3,100-20,100 3,100-27,300...

  • Page 7: Installation Place

    DIMENSIONS MODEL : AW Z14LB , AWZ18LB , AWZ24LB ■ (Unit : mm) INSTALLATION PLACE ■ Wall hook bracket 6.7 cm or more 6.5 cm or more 5 cm or more Open panel 150 cm or more Front panel (Wall cap) 40 cm or more 230 cm or more * The filters come out...

  • Page 8: Wiring Diagrams

    WIRING DIAGRAMS MODEL : AW Z14LB , AWZ18LB ■ AIR FILTER (LEFT) SWITCH (LEFT) THERMAL FUSE 102 AIR FILTER (RIGHT) SWITCH INDICATOR PCB (RIGHT) CN208 THERMAL FUSE 102 CONNECTOR (RED) BROWN WHITE WHITE ORANGE CN201 CN200 CN203 CN202 CN204 WHITE WHITE WHITE LOUVER U...
  • Page 9 MODEL : AW Z24LB ■ AIR FILTER (LEFT) SW (LEFT) THERMAL FUSE 102 AIR FILTER (RIGHT) INDICATOR PCB SW (RIGHT) CN208 1 2 3 4 5 1 2 3 4 5 6 7 8 1 2 3 4 5 THERMAL FUSE 102 CONNECTOR (RED) BROWN...

  • Page 10: Capacity Table

    CAPACITY TABLE 6-11 COOLING CAPACITY MODEL : AW Z14LB ■ 14.2 Indoor temperature °CDB °CWB °CDB TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC 3.90 2.78 0.71 4.35 2.80 0.72 4.49 3.04 0.72 4.79 3.05 0.73 4.94 3.29 0.74 5.23 3.28 0.74 5.53 3.49 0.75 3.72 2.65 0.80 4.15 2.67 0.81 4.29 2.90 0.82 4.57 2.91 0.83 4.71 3.14 0.83 4.99 3.13 0.84 5.28 3.33 0.85 3.53 2.51 0.89 3.93 2.53 0.90 4.06 2.75 0.91 4.33 2.76 0.92 4.46 2.98 0.92 4.73 2.96 0.93 5.00 3.16 0.94 3.32 2.36 0.98 3.70 2.38 1.00 3.82 2.58 1.00 4.07 2.59 1.01 4.20 2.80 1.02 4.45 2.79 1.03 4.70 2.97 1.04...

  • Page 11: Heating Capacity

    6-21 HEATING CAPACITY MODEL : AW Z14LB ■ 15.7 Indoor temperature °CDB °CDB °CWB 6.03 2.14 5.89 2.16 5.74 2.18 5.60 2.21 5.46 2.23 7.04 2.48 6.87 2.50 6.70 2.53 6.54 2.56 6.37 2.58 7.89 2.63 7.70 2.65 7.51 2.68 7.33 2.71 7.14...

  • Page 12: Fan Performance

    FAN PERFORMANCE 7-11 AIR VELOCITY DISTRIBUTION MODEL : AW Z14LB , AWZ18LB ■ Unit : m/s TOP VIEW Note : FLOW CONTROL PANEL : Horiz. Fan speed : High LOUVER : Center Operation mode :FAN Voltage : 230V Unit : m/s TOP VIEW FLOW CONTROL PANEL : Horiz.
  • Page 13 MODEL : AW Z24LB ■ Unit : m/s TOP VIEW Note : FLOW CONTROL PANEL : Horiz. Fan speed : High LOUVER : Center Operation mode :FAN Voltage : 230V Unit : m/s TOP VIEW FLOW CONTROL PANEL : Horiz. LOUVER : Right &...

  • Page 14: Air Flow

    7-21 AIR FLOW MODEL : AW Z14LB , AWZ18LB ■ COOLING ● Number of Fan speed Airflow rotations (r.p.m) HIGH 1450 1320 1050 QUIET SUPERQUIET HEATING ● Number of Fan speed Airflow rotations (r.p.m) HIGH 1650 1350 1150 QUIET 1000 SUPERQUIET - (01 - 13) -...
  • Page 15 MODEL : AW Z24LB ■ COOLING ● Number of Fan speed Airflow rotations (r.p.m) HIGH 1500 1370 1250 QUIET 1130 SUPERQUIET 1030 HEATING ● Number of Fan speed Airflow rotations (r.p.m) HIGH 1700 1540 1390 QUIET 1260 SUPERQUIET 1120 - (01 - 14) -...

  • Page 16: Operation Noise

    OPERATION NOISE 8-11 NOISE LEVEL CURVE MODEL : AW Z14LB ■ COOLING HEATING ● ● NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 High High NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 Super Quiet NC-25 NC-25 Super Quiet NC-20 NC-20 NC-15 NC-15...
  • Page 17 MODEL : AW Z24LB ■ COOLING HEATING ● ● NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 High High NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 Super Quiet NC-30 Super Quiet NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1000 2000 4000 8000 1000 2000...
  • Page 18 8-21 SOUND LEVEL CHECK POINT - (01 - 17) -...

  • Page 19: Electric Characteristics

    ELECTRIC CHARACTERISTICS Model Name AWZ14LB AWZ18LB AWZ24LB Voltage 230~ Power Supply Frequency *1) Max Operating Current 14.0 14.0 0.3 (Indoor unit) Main Fuse (circuit ― breaker) Current *2) Wiring Spec. Connection Cable 2.0-3.5 2.0-3.5 1.5-2.5 Limited wiring length *1) The maximum current is the total current of indoor unit and outdoor unit. (14, 18 model only) *2) Wiring Spec.

  • Page 20: Safety Devices

    SAFETY DEVICES Model Protection form AWZ14LB AWZ18LB AWZ24LB Circuit protection Current fuse (PCB) 3.15A 250V Terminal protection Current (thermal) fuse 3A 250V 102°C °C OFF Fan motor protection Thermal protection program °C ON - (01 - 19) -...

  • Page 21: Outdoor Unit

    R410A OUTDOOR UNIT 2. SINGLE TYPE : AOZ14LBC AOZ18LBC AOZ24LBT D2D_AO024E/01 2008.07.24...
  • Page 22 SPECIFICATIONS Type INVERTER HEAT PUMP Model name AOZ14LBC AOZ18LBC AOZ24LBT Power source 230V~ 50Hz Available voltage range 198-264V~ 50Hz Starting current 10.3 Cooling 1,910 1,910 3,600 Airflow rate Heating 1,910 1,910 3,320 Type × Q'ty Propeller fan × 1 Motor output Cooling Sound pressure level dB (A)

  • Page 23: Front View

    DIMENSIONS MODEL : AO Z14LB , AOZ18LB ■ (Unit : mm) Top view Front view Side view Air flow Drain pipe 4- 10mm hole mounting place ( 20) Bottom view INSTALLATION PLACE ■ 100 mm or more 100 mm or more 300 mm or more If the space is larger that is stated, the condition will be the same as that are no obstacles.
  • Page 24 MODEL : AO Z24LB ■ (Unit : mm) Top view Front view Side view Air flow 4- 12mm hole Drain cap Drain pipe Bottom view mounting places mounting place INSTALLATION PLACE ■ When there are obstacles When there are obstacles When there are obstacles at the at the back or front sides.

  • Page 25: Refrigerant Circuit

    REFRIGERANT CIRCUIT MODEL : AO Z14LB , AOZ18LB ■ Heat exchanger Muffler ( INDOOR ) Heat exchanger B 3-Way Valve 2-Way Valve ( INDOOR ) Muffler Receiver Compressor 4-Way Valve Strainer Accumulator Heat exchanger ( OUTDOOR ) Strainer Pulse motor valve Cooling Heating Refrigerant pipe diameter...
  • Page 26 MODEL : AO Z24LB ■ Heat exchanger ( INDOOR ) 3-Way valve (Large) 3-Way valve Muffler (Small) Pressure Strainer switch Expansion valve 4-Way valve Heat exchanger Strainer ( OUTDOOR ) Cooling Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 5/8"...
  • Page 27 WIRING DIAGRAMS MODEL : AO Z14LB , AOZ18LB ■ CHOKE COIL L1 L2 BROWM TM303 BLACK ORANGE WHITE TM03 TM304 WHITE YELLOW GREEN PURPLE CN40 TM04 BLUE TM305 ACTIVE FILTER CN301 PURPLE MODURE BROWN GRAY WHITE ORANGE CN400 CN11 YELLOW BLACK CN41 TRANSISTOR...
  • Page 28 MODEL : AO Z24LB ■ HIGH PRESSURE SWITCH CN90 COMPRESSOR TEMP. THERMISTOR BROWN CN64 BROWN CN400 CN42 CN40 CN200 OUTDOOR TEMP. THERMISTOR BLUE CN62 BLUE PIPE TEMP. THERMISTOR BLACK CN61 BLACK CONTROLLER PCB DISCHARGE TEMP. THERMISTOR ( MAIN PCB ) BROWN CN60 BROWN...

  • Page 29: Capacity Compensation Rate For Pipe Length And Height Difference

    CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND HEIGHT DIFFERENCE MODEL : AO Z14LB , AOZ18LB ■ Pipe length (m) COOLING ― ― ― 0.953 0.951 1 ― ― 0.981 0.969 0.967 Indoor unit is upper ― 0.988 0.985 0.973 0.971 than outdoor unit.
  • Page 30 MODEL : AO Z24LB ■ Pipe length (m) COOLING ― ― ― 0.964 0.964 0.964 0.965 1 ― ― 0.984 0.980 0.979 0.980 0.981 Indoor unit is upper ― 0.988 0.988 0.984 0.983 0.984 0.985 than outdoor unit. 0.992 0.992 0.992 0.988 0.987...

  • Page 31: Additional Charge Calculation

    ADDITIONAL CHARGE CALCULATION MODEL : AO Z14LB , AOZ18LB ■ Refrigerant type R410A Refrigerant amount 1,350 REFRIGERANT CHARGE ● Pipe length 20g/m Additional charge 0 (Charge less) +100 MODEL : AO Z24LB ■ Refrigerant type R410A Refrigerant amount 1,900 REFRIGERANT CHARGE ●...
  • Page 32 AIR FLOW MODEL : AO Z14LB , AOZ18LB ■ COOLING ● Number of rotations Airflow (r.p.m) 1,910 1,142 HEATING ● Number of rotations Airflow (r.p.m) 1,910 1,124 MODEL : AO Z24LB ■ COOLING ● Number of rotations Airflow (r.p.m) 3,600 1,000 2,119 HEATING...
  • Page 33 OPERATION NOISE 8-11 NOISE LEVEL CURVE MODEL : AO Z14LB ■ COOLING HEATING ● ● NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1000 2000 4000 8000 1000 2000...
  • Page 34 MODEL : AO Z24LB ■ COOLING HEATING ● ● NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1000 2000 4000 8000 1000 2000 4000 8000 Octave band center frequency ,Hz Octave band center frequency ,Hz - (02 - 13) -...

  • Page 35: Sound Level Check Point

    8-21 SOUND LEVEL CHECK POINT Air Flow Microphone Microphone - (02 - 14) -...
  • Page 36 ELECTRIC CHARACTERISTICS Model Name AOZ14LB AOZ18LB AOZ24LB Voltage 230~ Power Supply Frequency Starting Current 10.3 Main Fuse (Circuit ― ― breaker) Current *1) Wiring Spec. Power Cable ― ― 3.5-4.0 *2) Limited wiring length ― ― *1) Wiring Spec. Selected Sample (Selected based on Japan Electrotechnical Standard and Codes Committee E0005) *2) Limited Wiring length : This is the wiring length in case voltage descent is less than 2%.
  • Page 37 SAFETY DEVICES Model Protection form AOZ14LB AOZ18LB AOZ24LB 20A 250V 20A 250V Current fuse (NEAR THE TERMINAL) 5A 250V 5A 250V Circuit protection 15A 250V 15A 250V Current fuse (MAIN PRINTED CIRCUIT BOARD) 3.15A 250V 3.15A 250V OFF : 110 °C OFF : 130±20°C Fan motor protection...
