- Page 1 CABINET PARTS REFRIGERATOR For Model: ABB1921DEW14 (White) Part No. W10202518 Rev.A 4−08 Litho In U.S.A. (CJJ)
-
Page 2: Cabinet Parts

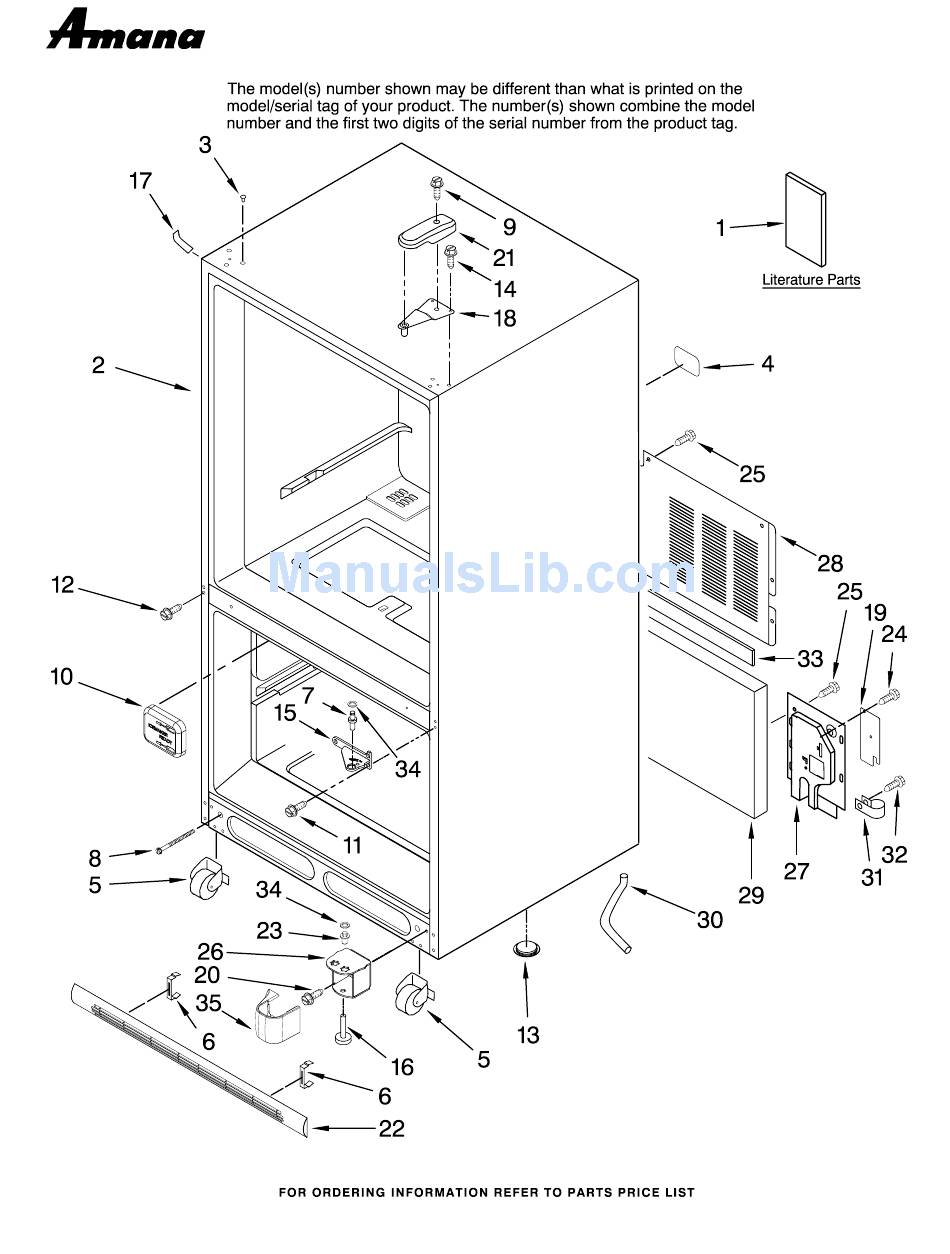

CABINET PARTS For Model: ABB1921DEW14 (White) Illus. Part DESCRIPTION Literature Parts W10175445 Owners Manual W10183276 Energy Tag W10169671 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001130 White 67005064 Label, Fill Tube 67006118 Roller Assembly 12627302 Clip, Grille 67006744 Pin, Center Hinge 67006611 Bolt, Adjusting (Rear) -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: ABB1921DEW14 (White) W10202518... - Page 4 REFRIGERATOR LINER PARTS For Model: ABB1921DEW14 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67002083 Bracket, Control and Lights 67001040 Belt, Damper 67001034 Tensioner, Belt 67001036 Timer, Defrost C3680310 Switch, Light 67002512 Knob, Front 67001035 Housing, Light 67003568 Bulb, Light (2) Y12570701 Socket, Light (2) 67002301 Cover, Light 12990514 Screw (2)
-
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: ABB1921DEW14 (White) W10202518... - Page 6 FREEZER LINER PARTS For Model: ABB1921DEW14 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam (2) 67001045 Panel, Fz Control 67001285 Cover, Light 67003568 Bulb, Light 67001035 Housing 67005868 Cover, Evaporator 67005822 Screw (8) 67001046 Control, Fz Temp 10 W10167028 Clip, Motor 67005653 Switch, Light Y12570701 Socket...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: ABB1921DEW14 (White) W10202518... - Page 8 REFRIGERATOR DOOR PARTS For Model: ABB1921DEW14 (White) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 67001138 White Plug, Vent 10712401 White 67003819 Door, Compartment 67001279 Tray, Dairy 67001021 Bucket (2) (Medium) 12528501 Nameplate Plug, Button (2) 12246601 White Gasket, Door Magnetic W10130148 White Handle, Door 67003129 White...
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Model: ABB1921DEW14 (White) W10202518... - Page 10 FREEZER DOOR PARTS For Model: ABB1921DEW14 (White) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) W10176974 White Handle, Door 67005140 White Gasket, Door W10130150 White 67006831 Screw 12246601 Plug, Hole White Plug, Vent (2) 10712401 White 67004977 Bushing (4) Stop, Door 67003779 White 67006287 Screw (2) 67003397 Retainer, Basket...
-
Page 11: Shelf Parts
SHELF PARTS For Model: ABB1921DEW14 (White) W10202518... - Page 12 SHELF PARTS For Model: ABB1921DEW14 (White) Illus. Part DESCRIPTION 67001302 Ladder, Side 67006400 Screw (6) 67001073 Ladder, Center 67006360 Screw (2) 67003400 Frame, Deli 67006877 Glass, Crisper 67001153 Frame, Crisper 67001308 Pan, Deli 67005864 Slide, Humidity D7725402 Tray, Ice Cube 67001155 Brace, Crisper Frame 67003884 Trim, Crisper...
-
Page 13: Unit Parts
UNIT PARTS For Model: ABB1921DEW14 (White) W10202518... - Page 14 UNIT PARTS For Model: ABB1921DEW14 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw (3) 19 W10174591 Tube, Discharge Following Parts Not Illustrated 2 W10162928 Blade, Fan 67001133 Tray, Drip 67006914 Basepan 10623002 Clip, Evaporator and Optional Parts Not Included 67006425 Screw (2) 12002051 Evaporator 67004954 Screw (3)
-
Page 15: Icemaker Parts
ICEMAKER PARTS For Model: ABB1921DEW14 (White) W10202518... - Page 16 ICEMAKER PARTS For Model: ABB1921DEW14 (White) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer, Thermostat Thermostat (Not Available Order D7824706Q) 681249 Screw (2) 67001255 Pan, Ice 67004101 Bracket, Tube...
- Page 17 OPTIONAL PARTS (NOT INCLUDED) For Model: ABB1921DEW14 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) Miscellaneous ACCESSORIES 72017 White 4396920 Cleaner, 212643 Sealer, Gum 72032 Black Stainless Steel (4 Feet) 479502 Tape, Vinyl (3/4 x 108") PAINT, PRESSURIZED SPRAY 505587 Sealer, Mastic (12 oz.)
