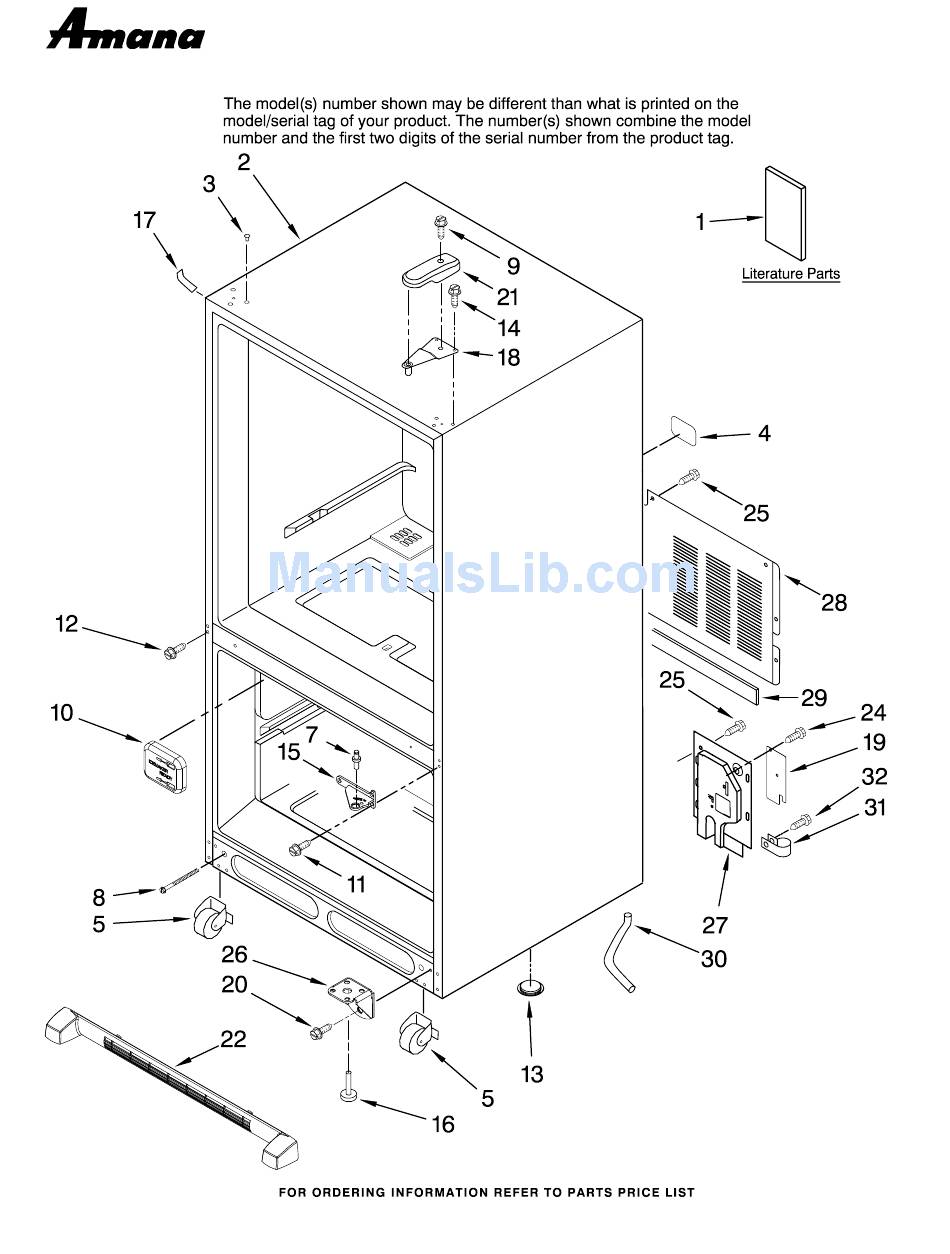

CABINET PARTS
REFRIGERATOR
For Model: ABB1922FED10
(Universal Silver)
Part No. W10231701 Rev.A
9−08 Litho In U.S.A. (mat)(bay)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABB1922FED10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amana ABB1922FED10

  • Page 1 CABINET PARTS REFRIGERATOR For Model: ABB1922FED10 (Universal Silver) Part No. W10231701 Rev.A 9−08 Litho In U.S.A. (mat)(bay)
  • Page 2: Cabinet Parts

    CABINET PARTS For Model: ABB1922FED10 (Universal Silver) Illus. Part DESCRIPTION Literature Parts W10175445 Owners Manual W10183296 Energy Tag W10165418 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) 67001131 Black 67005064 Label, Fill Tube 12580304 Roller Assembly 67006642 Pin, Center Hinge 67006611 Bolt, Adjusting (Rear) 67006521 Screw...
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: ABB1922FED10 (Universal Silver) W10231701...
  • Page 4 REFRIGERATOR LINER PARTS For Model: ABB1922FED10 (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) Y67003896 Bracket, Control and Lights 67004279 Overlay 4 W10185244 Housing, Electronic Control 5 W10165748 Board, Control C3680310 Switch, Light 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) Y12570701 Socket, Light (2) 67003900 Insert,...
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Model: ABB1922FED10 (Universal Silver) W10231701...
  • Page 6 FREEZER LINER PARTS For Model: ABB1922FED10 (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam (2) 12002497 Gear (2) (Includes RH & LH) 67003905 Cover, Light 67004067 Shaft Y12570701 Socket, Light 67006473 Screw (8) A0282812 Bulb, Light 67001035 Housing, Frz.
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: ABB1922FED10 (Universal Silver) W10231701...
  • Page 8 REFRIGERATOR DOOR PARTS For Model: ABB1922FED10 (Universal Silver) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 12658580DQ Universal Silver Plug, Vent 67004838 Black 67003819 Door, Dairy 67001279 Tray, Dairy 67001021 Bucket (2) (Medium) 12528501 Nameplate Screw,Handle Hole 67007166 Black Gasket, Door Magnetic W10164031 Black Handle, Door...
  • Page 9: Freezer Door Parts

    FREEZER DOOR PARTS For Model: ABB1922FED10 (Universal Silver) W10231701...
  • Page 10 FREEZER DOOR PARTS For Model: ABB1922FED10 (Universal Silver) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) 13092242DQ Universal Silver Handle, Door W10179169 Black Plug, Vent(2) 67004838 Black Gasket, Door W10164033 Black 67006197 Screw W10231701...
  • Page 11: Shelf Parts

    SHELF PARTS For Model: ABB1922FED10 (Universal Silver) W10231701...
  • Page 12 SHELF PARTS For Model: ABB1922FED10 (Universal Silver) Illus. Part DESCRIPTION 67001302 Ladder, Side 67006400 Screw (6) 67001073 Ladder, Center 67006360 Screw (2) 12204808 Glass Shelf−(4) 67006626 Screw−(4) 67006877 Glass, Crisper 67001153 Frame, Crisper 10946012 Trim−Rear−(4) 67005864 Slide−Humidity−(2) 67001057 Rail, Center Crisper 67001155 Brace Crisper Frame...
  • Page 13: Unit Parts

    UNIT PARTS For Model: ABB1922FED10 (Universal Silver) W10231701...
  • Page 14 UNIT PARTS For Model: ABB1922FED10 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw (3) 19 W10183705 Tube, Discharge Following Parts Not Illustrated 2 W10156818 Blade, Fan 67001133 Tray, Drip and Optional Parts Not Included 12601104 Basepan 10623002 Clip, Evaporator 67006425 Screw (2) 67003718 Evaporator...
  • Page 15: Icemaker Parts

    ICEMAKER PARTS For Model: ABB1922FED10 (Universal Silver) W10231701...
  • Page 16 ICEMAKER PARTS For Model: ABB1922FED10 (Universal Silver) Illus. Part DESCRIPTION Mold & Heater Assembly (Not Available Order D7824706Q) 67004028 Arm, Shutoff 628356 Cup, Fill 627843 Ejector 2182124 Ice Stripper 2195914 Support & Motor Assembly 2315522 Retainer, Thermostat Thermostat (Not Available Order D7824706Q) 681249 Screw (2) 67001255 Pan, Ice...
  • Page 17 OPTIONAL PARTS (NOT INCLUDED) For Model: ABB1922FED10 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous PAINT, TOUCH−UP (1/2oz.) TORX SCREW WRENCH 1117510 Torx Key 72017 White 212643 Sealer, Gum 72032 Black (4 Feet) 479502 Tape, Vinyl (3/4 x 108") ACCESSORIES PAINT, PRESSURIZED SPRAY...
