- Page 1 CABINET PARTS REFRIGERATOR For Model: ABB1921DEW15 (White) 3−09 Litho In U.S.A. (mat)(bay) Part No. W10260129 Rev.A...
-

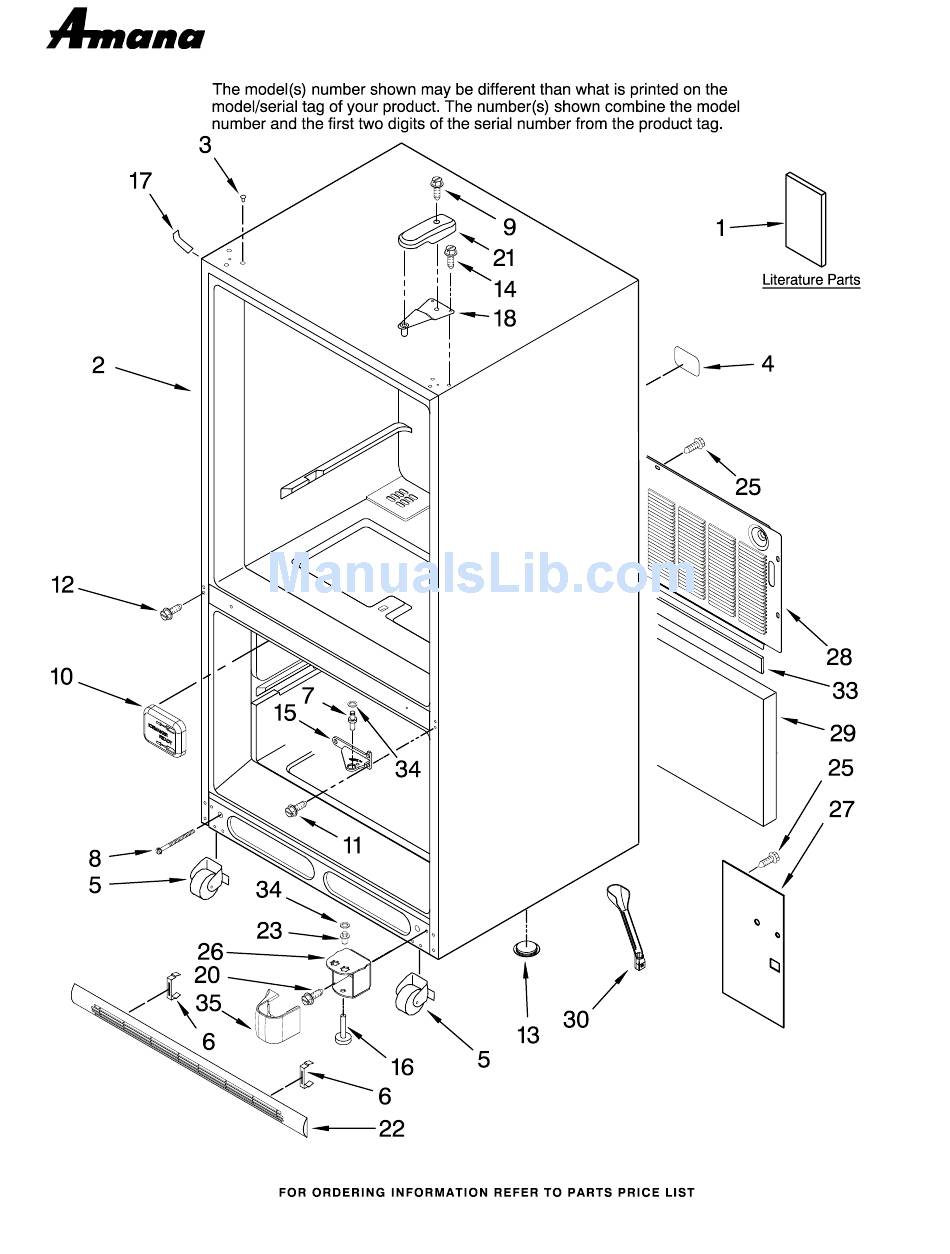

Page 2: Cabinet Parts
CABINET PARTS For Model: ABB1921DEW15 (White) Illus. Part DESCRIPTION Literature Parts W10175445 Owners Manual W10183276 Energy Tag W10238839 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310729 White 12249902 Label, Fill Tube 12580304 Roller Assembly 6 12627302SP Clip, Grille 10351005 Pin, Center Hinge 12606103 Bolt, Adjusting (Rear) -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: ABB1921DEW15 (White) W10260129... - Page 4 REFRIGERATOR LINER PARTS For Model: ABB1921DEW15 (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12724303 Bracket, Control and Lights 12650101 Belt, Damper 12649601 Tensioner, Belt 12566303 Timer, Defrost 6 C3680310V Switch, Light 12706201 Knob, Front 12476401V Housing, Light 9 A0282810V Bulb, Light (2) 12570701V Socket, Light (2) 12724201 Cover, Light 12990514V Screw (2)
-
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Model: ABB1921DEW15 (White) W10260129... - Page 6 FREEZER LINER PARTS For Model: ABB1921DEW15 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam (2) 12476101 Panel, Fz Control 12476302 Cover, Light 5 A0282810V Bulb, Light 12476401V Housing 12226107 Cover, Evaporator 12990101 Screw (8) 12351008 Control, Fz Temp 13058002 Clip, Motor 12466105 Switch, Light 12570701V Socket...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: ABB1921DEW15 (White) W10260129... - Page 8 REFRIGERATOR DOOR PARTS For Model: ABB1921DEW15 (White) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 12658501WQ White 12744905V Door, Compartment 4 12369502SP Tray, Dairy 12557204V Bucket (2) (Medium) 12528501 Nameplate Plug, Button (2) 12246601 White Gasket, Door Magnetic W10164030 White Handle, Door 12753101W White 12990508 Screw 12557202 Bucket (2)
-
Page 9: Freezer Door Parts
FREEZER DOOR PARTS For Model: ABB1921DEW15 (White) W10260129... - Page 10 FREEZER DOOR PARTS For Model: ABB1921DEW15 (White) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) 13024224WQ White Handle, Door 12610803W White Gasket, Door W10164032 White 12990301 Screw 12246601 Plug, Hole White 6 10961006W Bushing (4) Stop, Door 10447111 White 12990504 Screw (2) 12737501 Retainer, Basket W10260129...
-
Page 11: Shelf Parts
SHELF PARTS For Model: ABB1921DEW15 (White) W10260129... - Page 12 SHELF PARTS For Model: ABB1921DEW15 (White) Illus. Part DESCRIPTION 12710606 Ladder, Side 12990513 Screw (6) 12435807 Ladder, Center 12990515 Screw (2) 10460116V Frame, Deli 12204823 Glass, Crisper 8 12530901SP Frame, Crisper 9 12656504SP Pan, Deli 10 12530805SP Slide, Humidity 11 12227302WD Brace, Crisper Frame 12 W10231337 Trim, Crisper 12531305 Pan, Crisper (2)
-
Page 13: Unit Parts
UNIT PARTS For Model: ABB1921DEW15 (White) W10260129... - Page 14 UNIT PARTS For Model: ABB1921DEW15 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 19 W10206339 Fastener, Basepan 12992301 Screw Following Parts Not Illustrated Extension 12825803 Blade, Fan and Optional Parts Not Included 20 12225401WD Tray, Drip 3 W10210982 Basepan 12990701 Screw 12990511 Screw 12726401 Evaporator...
- Page 15 OPTIONAL PARTS (NOT INCLUDED) For Model: ABB1921DEW15 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) ICE MAKER TORX SCREW WRENCH FIELD INSTALLABLE 1117510 Torx Key IC13B Icemaker Kit 799344 White (Uncut) 799340 Black (Uncut) Following Parts Not Illustrated ACCESSORIES Miscellaneous...
