CABINET PARTS
REFRIGERATOR
For Model: ABB1922FED1
(Universal Silver)
Part No. W10260131 Rev.A
3−09 Litho In U.S.A. (mat)(bay)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABB1922FED1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Amana ABB1922FED1

  • Page 1 CABINET PARTS REFRIGERATOR For Model: ABB1922FED1 (Universal Silver) Part No. W10260131 Rev.A 3−09 Litho In U.S.A. (mat)(bay)

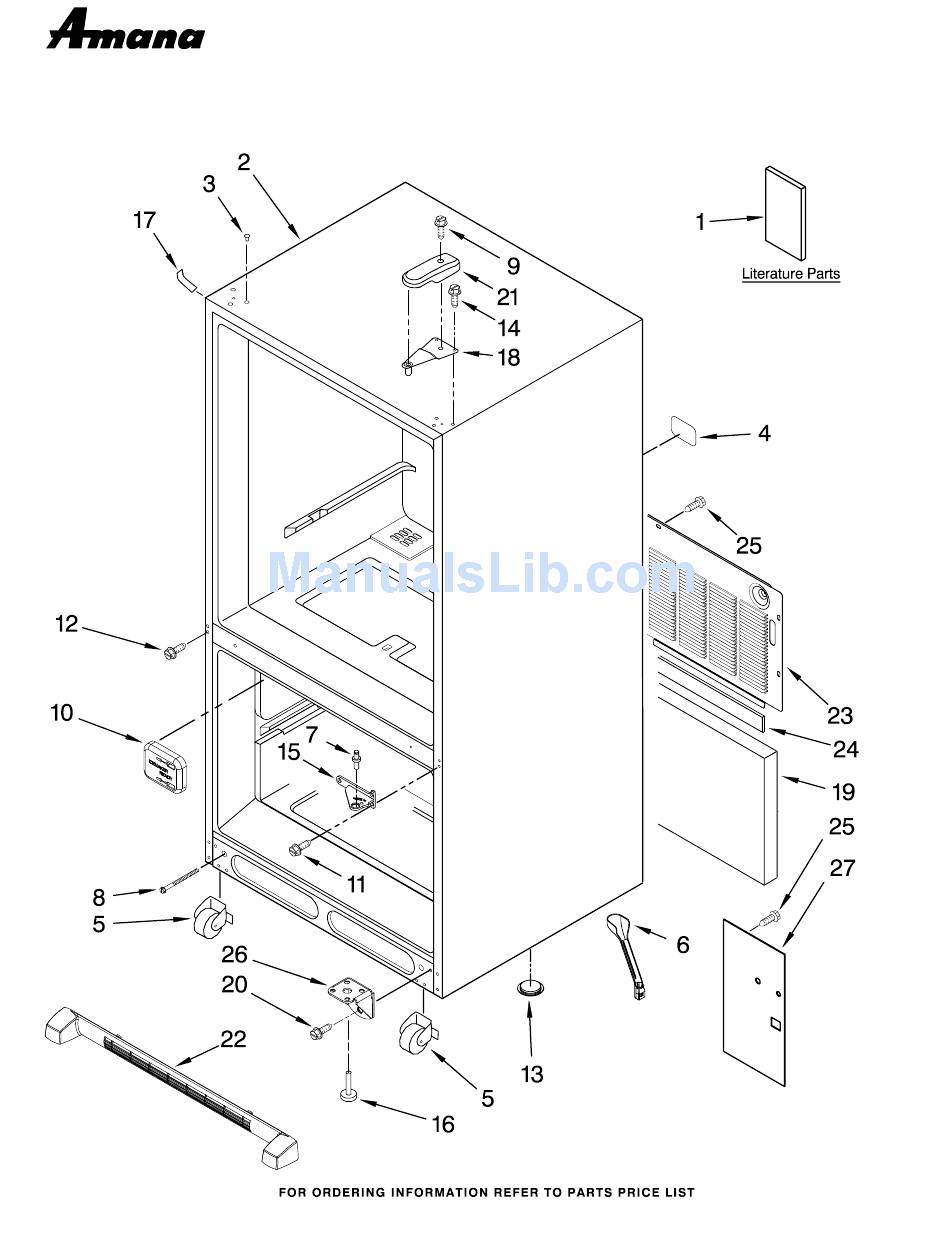

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: ABB1922FED1 (Universal Silver) Illus. Part DESCRIPTION Literature Parts W10175445 Owners Manual W10183296 Energy Tag W10238840 Tech Sheet Cabinet (Not a Servicable Part) Plug, Button (3) M0310731 Black 12249902 Label, Fill Tube 12580304 Roller Assembly 6 W10210987 Tube, Drain 10351006 Pin, Center Hinge 12606103 Bolt, Adjusting (Rear)
  • Page 3: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: ABB1922FED1 (Universal Silver) W10260131...
  • Page 4 REFRIGERATOR LINER PARTS For Model: ABB1922FED1 (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 12806301 Bracket, Control and Lights 12816501 Overlay 12806406 Housing, Electronic Control 12868513 Board, Control 6 C3680310V Switch, Light 12806501 Cover, Light 12806601V Housing, Light 9 W10194422V Bulb, Light (2) 12570701V Socket, Light (2) 12806801 Insert,...
  • Page 5: Freezer Liner Parts

    FREEZER LINER PARTS For Model: ABB1922FED1 (Universal Silver) W10260131...
  • Page 6 FREEZER LINER PARTS For Model: ABB1922FED1 (Universal Silver) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam (2) 12002497 Gear (2) (Includes RH & LH) 12804901 Cover, Light 5 12812901WD Shaft 12570701V Socket, Light 12990521 Screw (8) 9 W10194422V Bulb, Light 12476401V Housing, Frz.
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: ABB1922FED1 (Universal Silver) W10260131...
  • Page 8 REFRIGERATOR DOOR PARTS For Model: ABB1922FED1 (Universal Silver) Illus. Part DESCRIPTION Refrigerator Door (w/ Insulation) 12658580DQ Universal Silver 12744905V Door, Dairy 4 12369502SP Tray, Dairy 12557204V Bucket (2) (Medium) 12528501 Nameplate Screw,Handle Hole 12991105 Black Gasket, Door Magnetic W10164031 Black Handle, Door 12845806B Black 12992803 Screw...
  • Page 9: Freezer Door Parts

    FREEZER DOOR PARTS For Model: ABB1922FED1 (Universal Silver) W10260131...
  • Page 10 FREEZER DOOR PARTS For Model: ABB1922FED1 (Universal Silver) Illus. Part DESCRIPTION Freezer Door (w/ Insulation) 13092242DQ Universal Silver Handle, Door W10179169 Black Gasket, Door W10164033 Black 12992902 Screw W10260131...
  • Page 11: Shelf Parts

    SHELF PARTS For Model: ABB1922FED1 (Universal Silver) W10260131...
  • Page 12 SHELF PARTS For Model: ABB1922FED1 (Universal Silver) Illus. Part DESCRIPTION 12710606 Ladder, Side 12990513 Screw (6) 12435807 Ladder, Center 12990515 Screw (2) 12204808 Shelf, Glass (4) 6 12990302SP Screw (4) 12204823 Glass, Crisper 8 12530901SP Frame, Crisper 10946012 Trim, Rear (4) 12530805 Slide, Humidity(2) 12530701 Rail, Center Crisper...
  • Page 13: Unit Parts

    UNIT PARTS For Model: ABB1922FED1 (Universal Silver) W10260131...
  • Page 14 UNIT PARTS For Model: ABB1922FED1 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12992301 Screw 15 W10206336 Extension, Basepan Following Parts Not Illustrated 12825803 Blade, Fan 12788119 Screw 3 W10210982 Basepan and Optional Parts Not Included 17 10835903SP Grommet (4) 12990511 Screw 18 W10135028 Condenser 5 W10137529 Grommet (4)
  • Page 15 OPTIONAL PARTS (NOT INCLUDED) For Model: ABB1922FED1 (Universal Silver) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous PAINT, TOUCH−UP (1/2oz.) TORX SCREW WRENCH 72017 White 1117510 Torx Key 212643 Sealer, Gum 72032 Black (4 Feet) 479502 Tape, Vinyl (3/4 x 108") PAINT, PRESSURIZED SPRAY ACCESSORIES...
