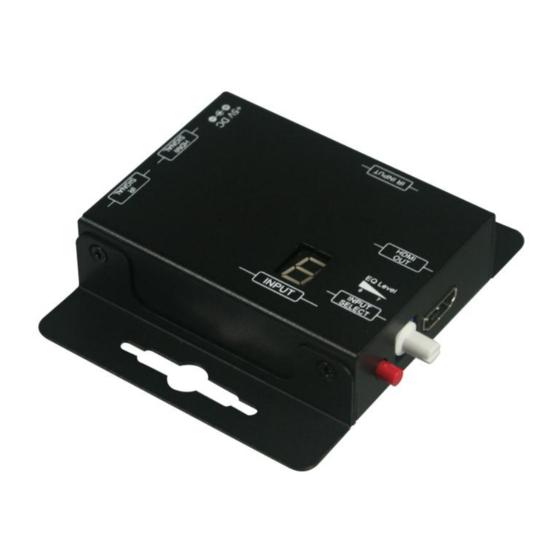

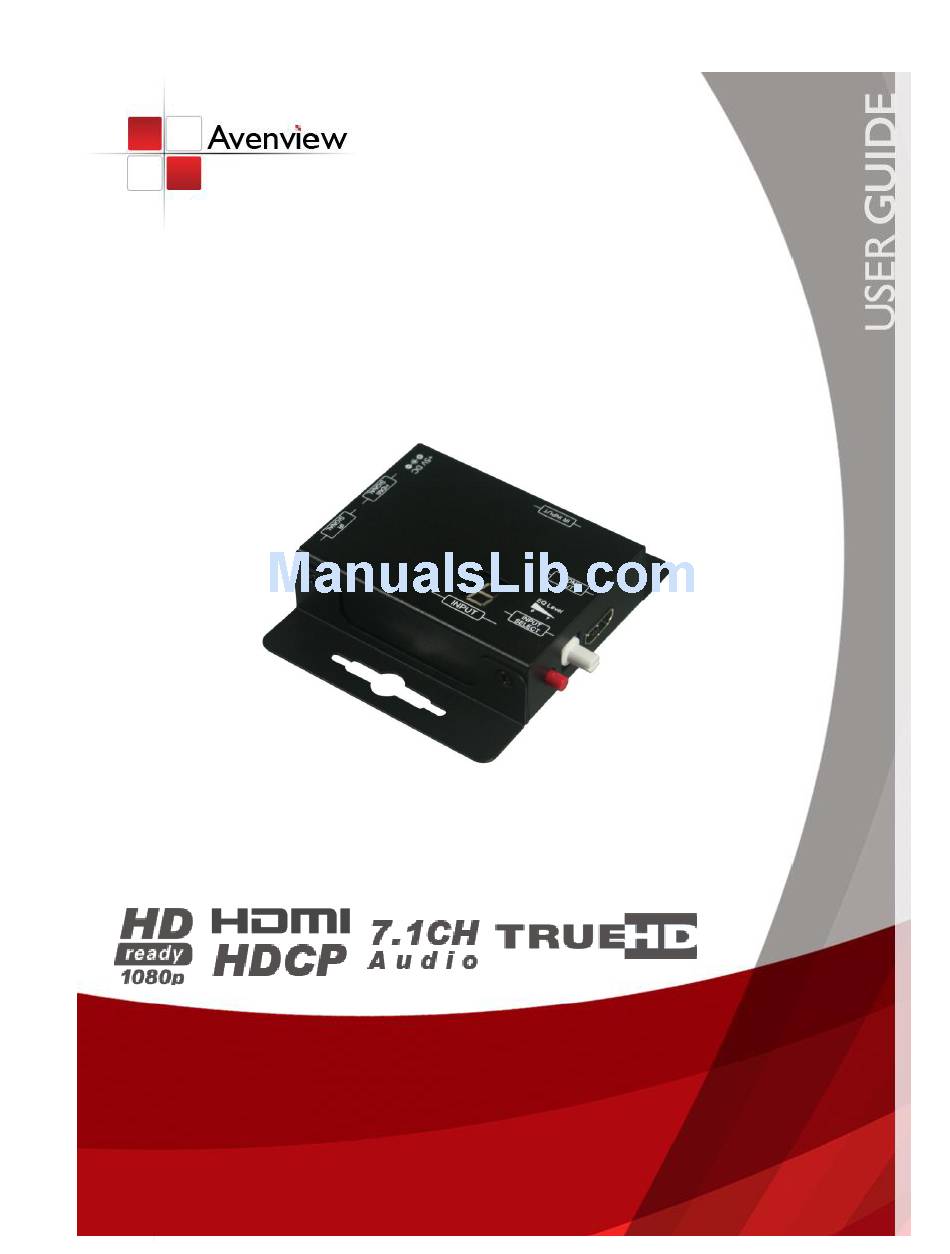

HDMI 1.3 Matrix Switch Receiver over
CAT5 with IR Pass-Through
© 20010 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any
time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in
Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products
including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.
Model #: HDMI-C5SW-R
www.avenview.com
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview HDMI-C5SW-R
Summary of Contents for Avenview HDMI-C5SW-R
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
-
Page 2: Table Of Contents
Safety Instructions ......................... 3 Regulatory Notices Federal Communications Commission (FCC) ......... 4 Introduction ........................... 4 Package Contents ........................6 Before Installation........................6 Panel Description ........................7 1.7.1 HDMI-C5SW-R ........................7 Installation (HDMI-C5SW-R) ....................8 Section 2: Specifications ......................... 9 www.avenview.com... -
Page 3: Section 1: Getting Started
Removal, installation, and set-up service charges. Safety Instructions The Avenview HDMI-C5SW-R, HDMI 1.3 Matrix Switch Receiver over CAT5 has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment’s, the HDMI-C5SW-R should be used with care. Read the following safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 4: Regulatory Notices Federal Communications Commission (Fcc)
Introduction The Avenview HDMI-C5SW-R, HDMI 1.3 Matrix Switch Receiver over CAT5 with IR Pass-through provides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1 channel) digital audio from any of the four HDMI sources to the remote displays at the same time. - Page 5 www.avenview.com...
-
Page 6: Package Contents
Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may cause a fire. Do not twist or pull by force ends of the optical cable. It can cause malfunction. www.avenview.com... -
Page 7: Panel Description
Panel Description 1.7.1 HDMI-C5SW-R 1. 5V DC Power jack 2. HDMI Signal 3. IR Signal 4. INPUT # 5. Input Select 6. EQ Level 7. HDMI OUT 8. IR Transmitter www.avenview.com... -
Page 8: Installation (Hdmi-C5Sw-R)
Installation (HDMI-C5SW-R) To setup Avenview HDMI-C5SW-R with SW-HDMI-C5-8X8 or SW-HDMI-C5-4X4 follow these steps for connecting to a device: Connect all sources to HDMI Inputs on the 8X8 HDMI over CAT5 Matrix Switch (SW-HDMI-C5-8X8) Connect each DDC output on the SW-HDMI-C5-8X8 to respective DDC input on the remote receiver... -
Page 9: Section 2: Specifications
3.3” x 3.5” x 1” Power Supply Mostly not required Power Consumption 1 Watt (max) / provided by SW-HDMI-C5-8X8 Environmental Operating Temperature 32˚ ~ 104˚F (0˚ to 40˚C) Storage Temperature -4˚ ~ 140˚F (-20˚ ~ 60˚C) Relative Humidity 20~90% RH (no condensation) www.avenview.com... - Page 10 LAN cables. For resolution greater than 1080i or 1280x1024, a CAT6 cable is recommended. 7. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input #1] generally can produce better transmission performance among all HDMI inputs. www.avenview.com...
- Page 11 Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of...
