Summary of Contents for Candy CWB 1206

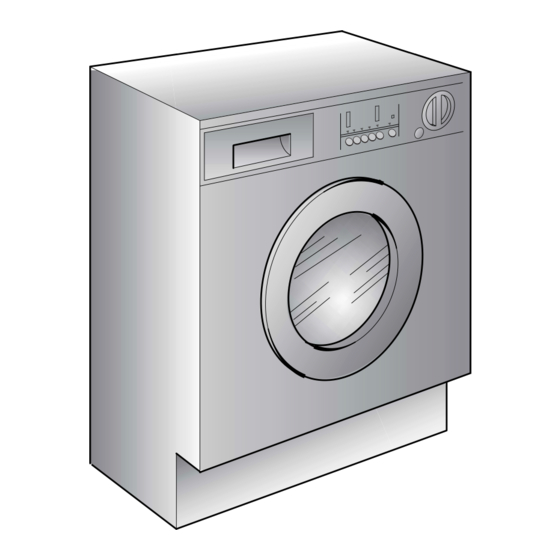

- Page 1 Washing machine Instructions for use CWB 1206...
-
Page 2: Table Of Contents
Introduction Contents Page Please read these instructions for use carefully and all other information enclosed with the Introduction washing machine. General delivery notes Keep all documentation in a safe place for future reference or for any future owners. Safety notes Quick start Description of controls Note: this machine is solely for domestic use. -
Page 3: General Delivery Notes
B) Turn off the tap - Wait for the “STOP” indicator light to flash C) Candy equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person. -
Page 4: Description Of Controls
Description of controls Door open button Important: Fig. 1 a special safety device prevents the door from opening at the end of the wash/spin cycle. at the end of the spin phase wait up to 2 minutes before opening the door. DOOR SECURITY indicator light The “Door Security”... - Page 5 The option buttons should be selected before pressing ALLERGY CARE button the "Start/Pause" button. By pressing this button you can activate a special new wash cycle in the Cotton and Mixed Fabrics programs, thanks to the new Sensor System. This option treats with care the fibres of DELAY START button garments and the delicate skin of those who wear them.

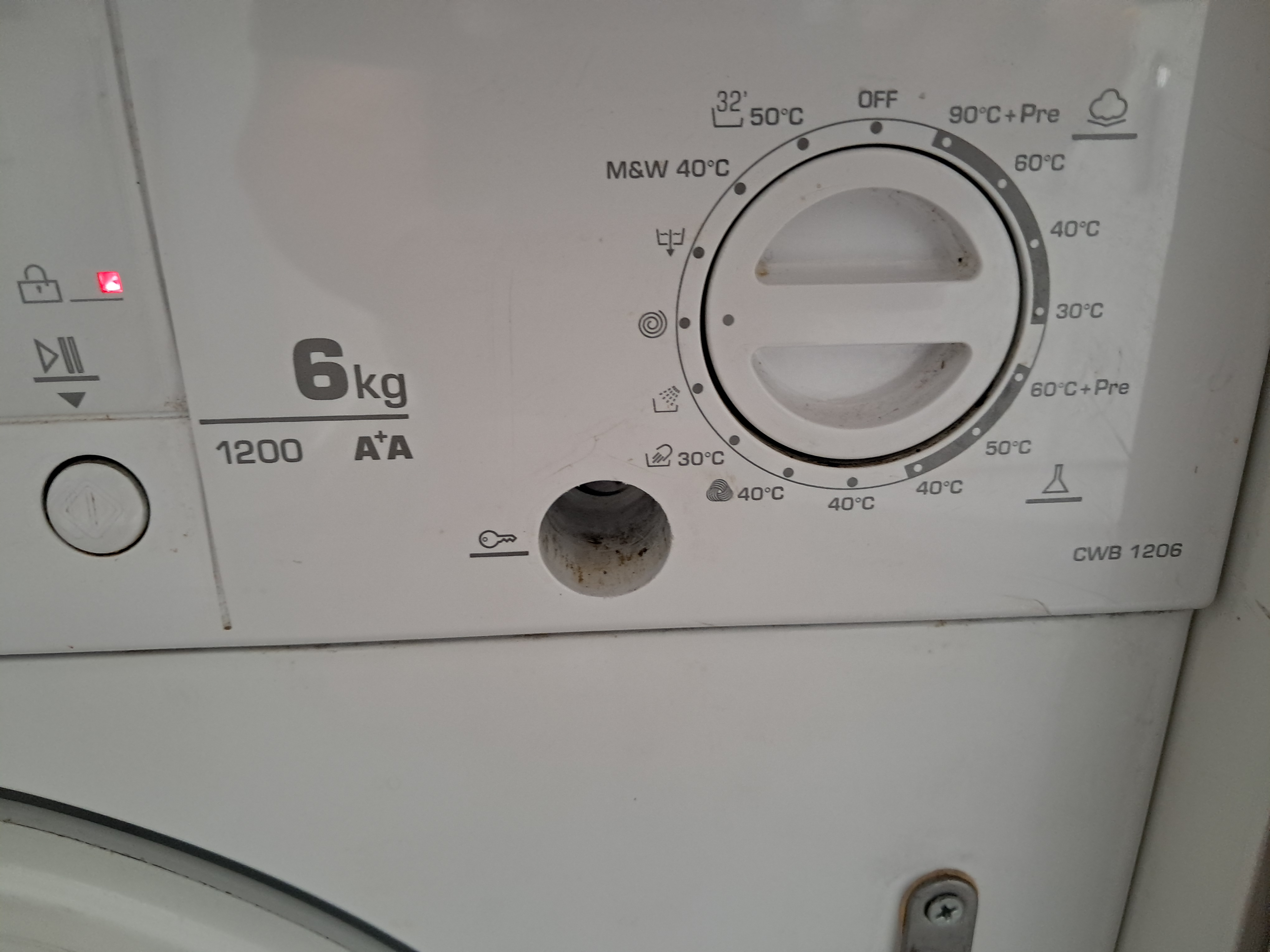

- Page 6 PROGRAMME selector with "OFF" position SPIN SPEED button The spin cycle is very important to remove as much water as possible from the laundry without Rotates in both directions. damaging the fabrics. You can adjust the spin speed of the machine to suit your needs. The machine is turned on by By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled.
- Page 7 TABLE OF PROGRAMMES PROGRAM FOR: PROGRAMME WEIGHT TEMP. CHARGE SELECTOR ON: °C DETERGENT Resistant fabrics Whites 90° with prewash Cotton, linen Fast coloureds 60° Cotton, mixed Fast coloureds Please read these notes 40° When washing heavily soiled laundry it is recommended the load is reduced to 4 kg Non fast coloureds 30°...
-
Page 8: Programme Selector
“MIX & WASH SYSTEM” PROGRAMME This is an exclusive Candy system and involves 2 great advantages for the Programme selector consumer: • to be able to wash together different type of fabrics (e.g. cotton + synthetic For the various types of fabrics and various degrees of dirt the washing machine has different etc…) FAST COLOUREDS;... -
Page 9: Detergent Drawer
Detergent drawer Detergents, washing aids and amounts to use Choice of detergent General purpose detergents The detergent drawer is split into 3 compartments: - Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for - the compartment labelled "I" is for prewash detergent; use in hot wash programmes (60°C and over), for heavily soiled and stained laundry. - Page 10 Dosages Useful advice for users Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well Tips on using your domestic appliance in the most environmentally-friendly and economical as the type of detergent to choose.
-
Page 11: Main Wash
Main wash The correct way to wash Sorting the laundry Preparing the laundry A) Select the laundry. - It is recommended you wash only items which are machine washable with water and detergent and not dry-clean items. Loading the laundry B) Open the porthole. -
Page 12: Cleaning And Routine Maintenance
Investigating malfunctions Cleaning and routine maintenance What might be the cause of… Defects you can remedy yourself Do not use alcohol-based scourers and / or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance: - Cleaning the drawer compartments. -
Page 13: Technical Data
Note: The use of environmentally-friendly, phosphate-free detergents can have the following effects: - waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected; - presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric. -
Page 14: Setting Up + Installation
Note: we recommend you keep the screws to SETTING UP + INSTALLATION immobilise the machine for future transit. The Manufacturers will not be responsible for any Remove the polystyrene base and place the machine near its permanent position (diagram 1). possible damage to the machine caused by not following the rules relating to releasing the mechanism. -
Page 15: Electrical Connections
NOTES Note: it is advisable to turn off the tap after each wash to isolate the washing machine from the water supply......................................................................................For the washing machine to function properly the terminal end of the discharge hose (mouth) ............................................must be at a minimum of 50 cm and a maximum of 85 cm from the ground. - Page 16 The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
- Page 17 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
