- Page 1 CABINET PARTS REFRIGERATOR For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) 11−09 Litho In U.S.A. (mjb) (bay) Part No. W10246526 Rev. B...
-

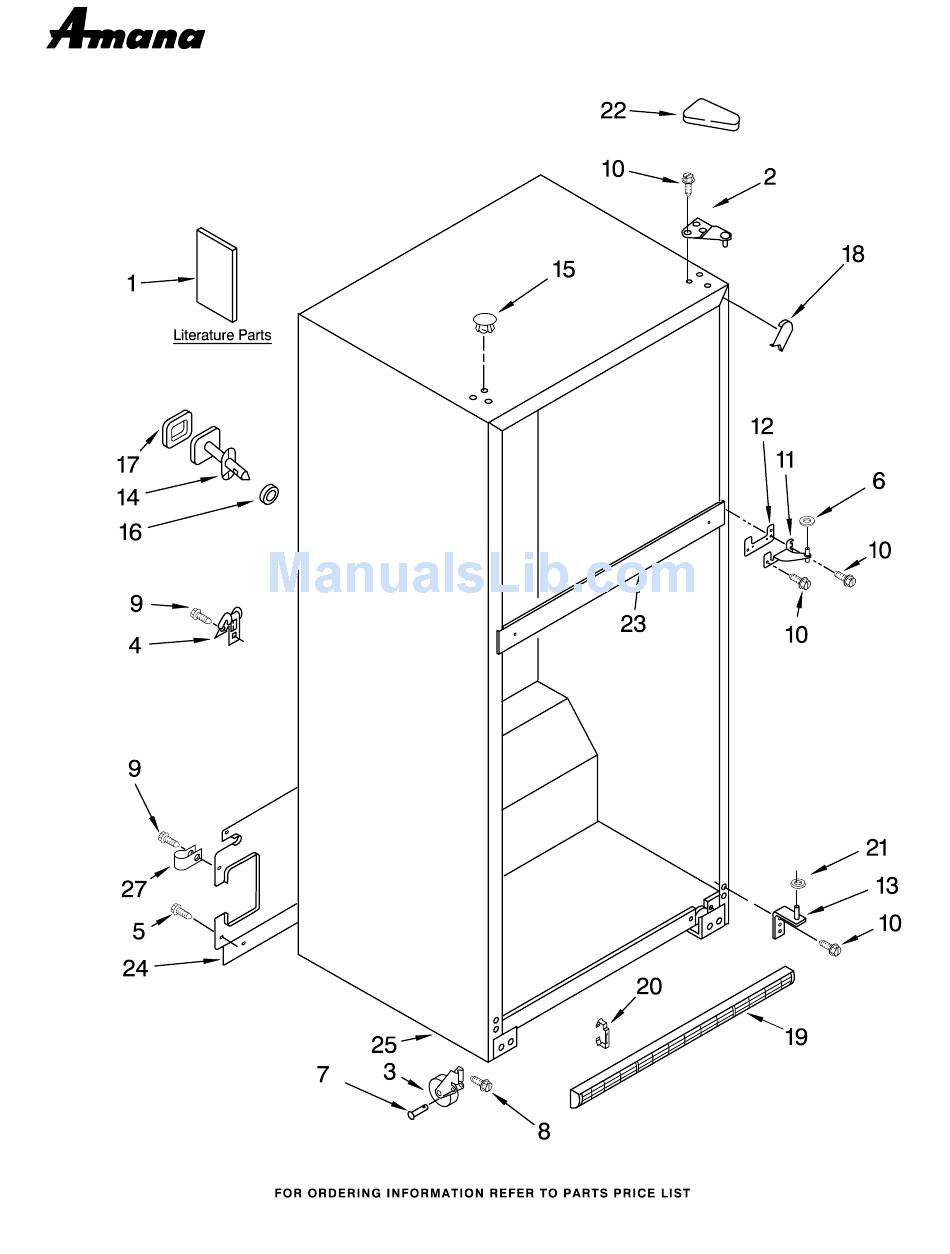

Page 2: Cabinet Parts
CABINET PARTS For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489427 Screw Corner Filler (2) Literature Parts 2201014 White 489341 Washer W10142142 Service & 2201017 Black 2179826 Rivet Wiring Sheet Grille 3400504 Screw W10233125 Energy Label... -
Page 3: Door Parts
DOOR PARTS For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) W10246526... - Page 4 DOOR PARTS For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes Illus. 7 & 12) 2202519 White 2204867 Black W10271888 Stainless Steel 2195388 Tray, Door Hole Plug, Endcap 2204837 White 2204840 Black 2314293 Thimble Endcap, Handle (Refrigerator) 2300571W White...
- Page 5 LINER PARTS For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) W10246526...
- Page 6 LINER PARTS For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2254360 Gasket, Evaporator Cover (2) 2314156 Adaptive, Defrost Control 2204640 Thermostat Tube Barrier 941839 Hole Plug 2310078 Wire Assy. Control Box 2162085 Socket, Light (3) 98129 Screw...
-
Page 7: Unit Parts
UNIT PARTS For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) W10246526... - Page 8 UNIT PARTS For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2320187 Plate, Unit 2182338 Clip, Heater Mounting 489373 Screw Following Parts Not Illustrated 3 W10159808 Condenser 2201185 Support Block and Optional Parts Not Included 2314157 Heater, Defrost 3400518 Screw 2254249 Evaporator Assy.
-
Page 9: Shelf Parts
SHELF PARTS For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2174693 Glass, Shelf Full 2163762 Cup, Shelf Mtg. 489478 Screw 2188687 Trim Shelf, Rear 2201102E Shelf, Cantilever 2188685 Trim, Shelf Front 9 W10221200 Crisper Cover 2201104E Frame Assy 2210573 Insert, Crisper... - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Models: A2RXNMFWW00, A2RXNMFWB00, A2RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Customer Touch−Up Material ICE MAKER Parts Not Illustrated and FIELD INSTALLABLE Optional Parts (Not Included) 350942 Primer, White (12 Oz.
