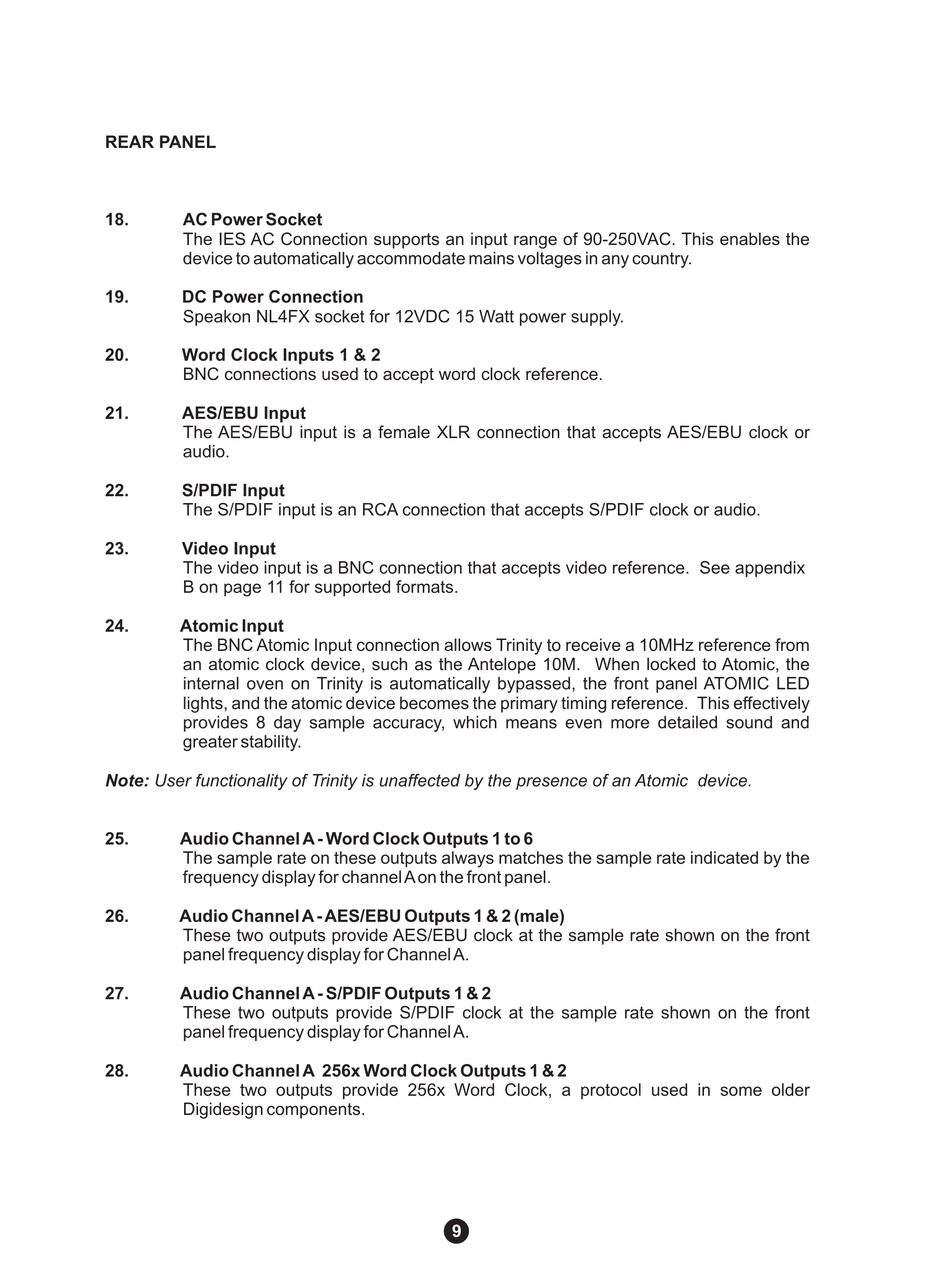

REAR PANEL
18. AC Power Socket
The IES AC Connection supports an input range of
device to automatically accommodate mains voltages in any country.
19. DC Power Connection
Speakon NL4FX socket for 12VDC
20. Word Clock Inputs 1 & 2
BNC connections used to accept word clock reference.
21. AES/EBU Input
The AES/EBU input is a female XLR connection that accepts AES/EBU clock or
audio.
22. S/PDIF Input
The S/PDIF input is an RCA connection that accepts S/PDIF clock or audio.
23. Video Input
The video input is a BNC connection that accepts video reference. See appendix
B on page 11
24. Atomic Input
The BNC Atomic Input connection allows Trinity to receive a 10MHz reference from
an atomic clock device, such as the Antelope 10M. When locked to Atomic, the
internal oven on Trinity is automatically bypassed, the front panel ATOMIC LED
lights, and the atomic device becomes the primary timing reference. This effectively
provides 8 day sample accuracy, which means even more detailed sound and
greater stability.
Note: User functionality of Trinity is unaffected by the presence of an Atomic device.
25. Audio Channel A - Word Clock Outputs 1 to 6
The sample rate on these outputs always matches the sample rate indicated by the
frequency display for channel A on the front panel.
26. Audio Channel A - AES/EBU Outputs 1 & 2 (male)
These two outputs provide AES/EBU clock at the sample rate shown on the front
panel frequency display for Channel A.
27. Audio Channel A - S/PDIF Outputs 1 & 2
These two outputs provide S/PDIF clock at the sample rate shown on the front
panel frequency display for Channel A.
28. Audio Channel A 256x Word Clock Outputs 1 & 2
These two outputs provide 256x Word Clock, a protocol used in some older
Digidesign components.
15
for supported formats.
9
90 5 -2 0VAC. This enables the
Watt power supply.
