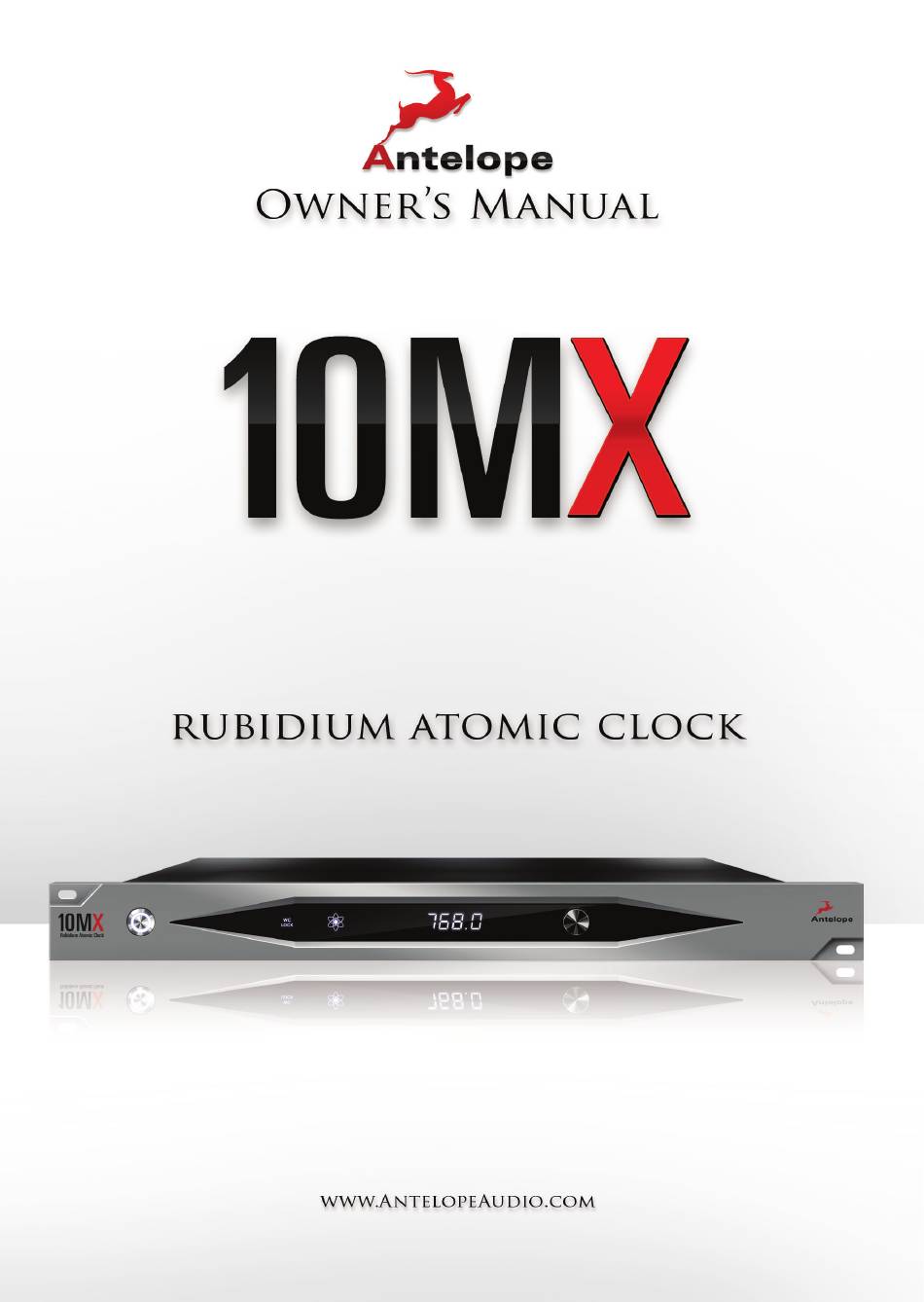

- Page 3 Owner’s Manual...
-
Page 5: Table Of Contents
Contents 1. Safety Notes 2. Introduction 3. Features 4. Front Panel Explained 5. RearPanel Explained 6. Software Control Panel 7. Additional Information 8. In The Box 9. Technical Specifications 10. Antelope Audio Support Resources... -
Page 7: Safety Notes
1. Safety Notes To reduce the risk of electrical shocks, fire, and related hazards: ● Do not remove screws, cover, or cabinet. There are no user serviceable parts inside. Refer servicing to qualified service personnel. ● Do not expose this device to rain, fire, moisture or spillover of liquid of any kind. ●... -
Page 8: Introduction

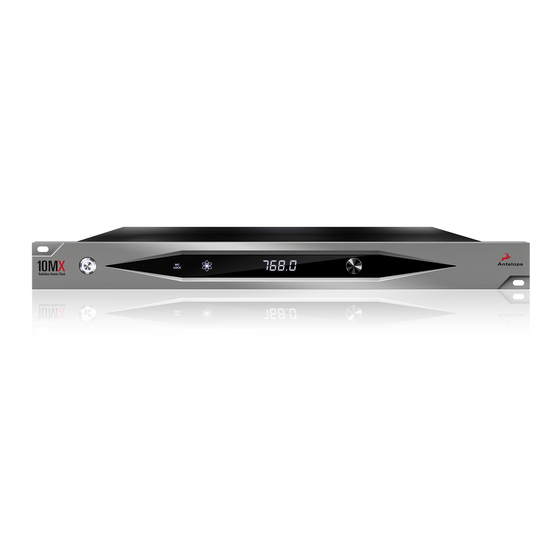

The Antelope Audio 10MX multiple atomic outputs allow up to 10 devices to be clocked simultaneously over BNC Outputs of 10MHz. The unit can also be used as a master clock with 4 outputs up to 768 kHz via BNC, 2 via AES and 2 via S/PDIF. -
Page 9: Features
3. Features ● Rubidium core with accuracy of 0.05 ppb (parts per BILLION) ● 4th generation Acoustically Focused Clocking (AFC ), employing 64-bit DSP ● Master clocking up to 768 kHz over 4 WC ● 2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz ●... -
Page 10: Front Panel Explained
Toggles standby / operation state. When the device is powered on an illuminated ring will glow arround the power button. 2. WC LOCK Indicator Will indicate if the 10MX is locked to an external source. 3. Atomic Clock Indicator Indicates that if the Atomic Module is engaged and Warmed up. When the device is powered this icon will pulsate during the warm-up state as the Rubidium Oscillator is heating up. -
Page 11: Rearpanel Explained
5. Rear Panel Explained 6. AC power connection This IEC connection supports inputs of 100 – 240 V~. This enables the device to automatically accommodate mains voltages in any country. 7. WC Input BNC Connector used to accept World Clock reference. 8. -
Page 12: Software Control Panel
6. Software Control Panel 1. Standby button 2. Clock Source 3. Sample Rate Selector 4. WC Lock Indicator 5. Atomic Lock Indicator 6. Brightness Adjust 7. Info... -
Page 13: Additional Information
7. Additional Information Additional information regarding operating systems, audio software and media players will be updated through the support area at www.antelopeaudio.com 8. In the box ● 10MX Rubidium Atomic Clock ● Printed Documentation ● Warranty Card ● 1 USB Cable ●... -
Page 14: Antelope Audio Support Resources
Weight: 2.8 kg/6.17 lb 10. Antelope Audio Support Resources Antelope Audio offers a range of services and support resources for your Antelope hardware, firmware and software control panels. Several categories of frequently asked questions are available on the website: http://www.antelopeaudio.com/en/support... - Page 15 A web resource with all device manuals, datasheets and software: http://www.antelopeaudio.com/en/support/downloads Control Panel Newsfeed The software control panel for 10MX incorporates a newsfeed at the bottom, which displays all new updates and relevant information: You Tube Page Tutorial videos, interviews, user cases and promos for forthcoming products: http://goo.gl/yfOmZf...
- Page 16 NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 17 NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 20 Version 1.0 / Oct. 2015...
