Summary of Contents for Antelope live clock

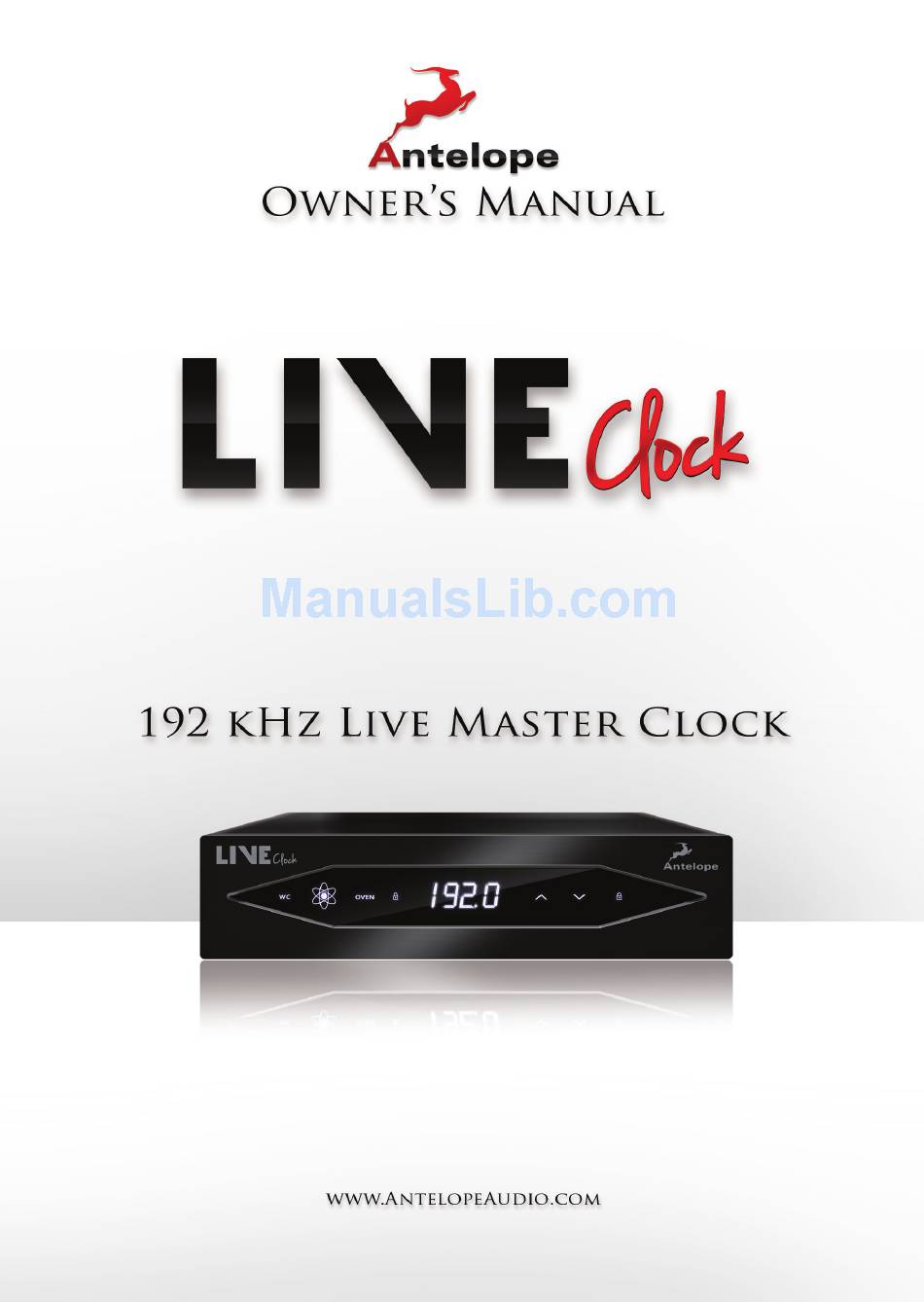

- Page 3 Owner’s Manual...
-
Page 5: Table Of Contents
4. Installation & Activation Guide ....................8 5. Front Panel Explained......................9 6. Rear Panel Explained ......................10 7. Software Control Panel ......................11 8. Technical Specifications ......................14 9. In The Box ..........................15 10. Antelope Audio Support Resources ..................16... -
Page 7: Safety Notes
1. Safety Notes To reduce the risk of electrical shocks, fire, and related hazards: ● Do not remove screws, cover, or cabinet. There are no user serviceable parts inside. Refer servicing to qualified service personnel. ● Do not expose this device to rain, moisture or spillover of liquid of any kind. ●... -
Page 8: Introduction
2. Introduction Thank you for purchasing the Antelope Audio LiveClock. For over a decade now Antelope Audio has been dominating the market of studio master clocks thanks to the company’s ground breaking Acoustically Focused Clocking (AFC) technology. Combining digital precision with our signature analog-like sound, Antelope’s renowned clocking technology proved to be also extremely... -
Page 9: Features
3. Features ● USB interface via Software Control Panel ● Compact & Light body ● Durable Front Panel Interface with Touch Buttons ● Sample Rate Display ● WC, Atomic, Oven, Rate Lock indicators ● Software Control Panel for remote control and firmware updates via USB ●... -
Page 10: Installation & Activation Guide
4. Installation & Activation Guide 1. Connect the DC power source on the rear panel. 2. Connect the USB cable to the USB port on your computer and to the device. 3. Navigate to www.antelopeaudio.com/en/support/downloads and then select LiveClock. 4. Download the LiveClock launcher. 5. -
Page 11: Front Panel Explained
5. Front Panel Explained 1. Word Clock, Atomic, Oven, Rate Lock indicators. When lit indicating which clock source the LiveClock is currently locked to and if the Rate Lock is activated. 2. Sample Rate Display Indicates the current sample rate of the LiveClock. 3. -
Page 12: Rear Panel Explained
1. DC Power Connection For use with Antelope’s DC power supply only. 2. USB 2.0 Type-B Connector USB interface for LiveClock control via Antelope Audio Software Control Panel. 3. WC Input BNC connector used to receive Word Clock reference. 4. Atomic Clock Input BNC connector allowing the LiveClock to reference from an Atomic Clock such as Antelope Audio’s 10M and 10MX for increased Oscillator accuracy. -
Page 13: Software Control Panel
7. Software Control Panel 2 3 4 1. Device S/N Shows which device is controlled. If you have multiple devices connected to your PC/ MAC computer (or different computers wired in the same Local Area Network) you can select which one to control. 2. - Page 14 3. Repeat the procedure as many times as necessary so that the number becomes as close as possible to Zero and relatively stable (number may have small deviations in a few seconds). To exit Calibration mode press the X button. 3.
- Page 15 Auto-run the manager server on system startup ● Reject incoming remote connections for all devices on this server For more information on each option check the Antelope Audio website or contact our tech support. 5. Oven When lit, this indicates LiveClock is clocked by its own internal clock.
-
Page 16: Technical Specifications
8. Technical Specifications Clocking System: 4th generation Acoustically Focused Clocking 64-bit DDS Oven Controlled Crystal Oscillator Clock Stability: <+/- 0.02 ppm, oven controlled at 64.5°C/148.1°F Clock Aging: < 1 ppm per year Clock Calibration: <+/- 0.001 ppm Atomic Clock Input: 10 MHz Sample Rates Generated: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz... -
Page 17: In The Box
9. In The Box ● LiveClock – 192 kHz Live Master Clock ● Owner’s Manual ● Warranty Card ● 1 Wall Wart Power Supply ● 1 USB cable ● Rack Mount Kit ● Dog House Mount Kit ● Fasteners Set ●... -
Page 18: Antelope Audio Support Resources
10. Antelope Audio Support Resources Antelope Audio offers a range of services and support resources for your Antelope hardware, firmware and software control panels. Several categories of frequently asked questions are available on the website: http://www.antelopeaudio.com/en/support Telephone Support Phone line is for general inquiries and technical support: +1 734 418 8661 Hours of Operation: 7:00 a.m. - Page 20 NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 21 NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 24 Version 1.0 / 23.03.2016...
