Summary of Contents for Antelope OCX HD

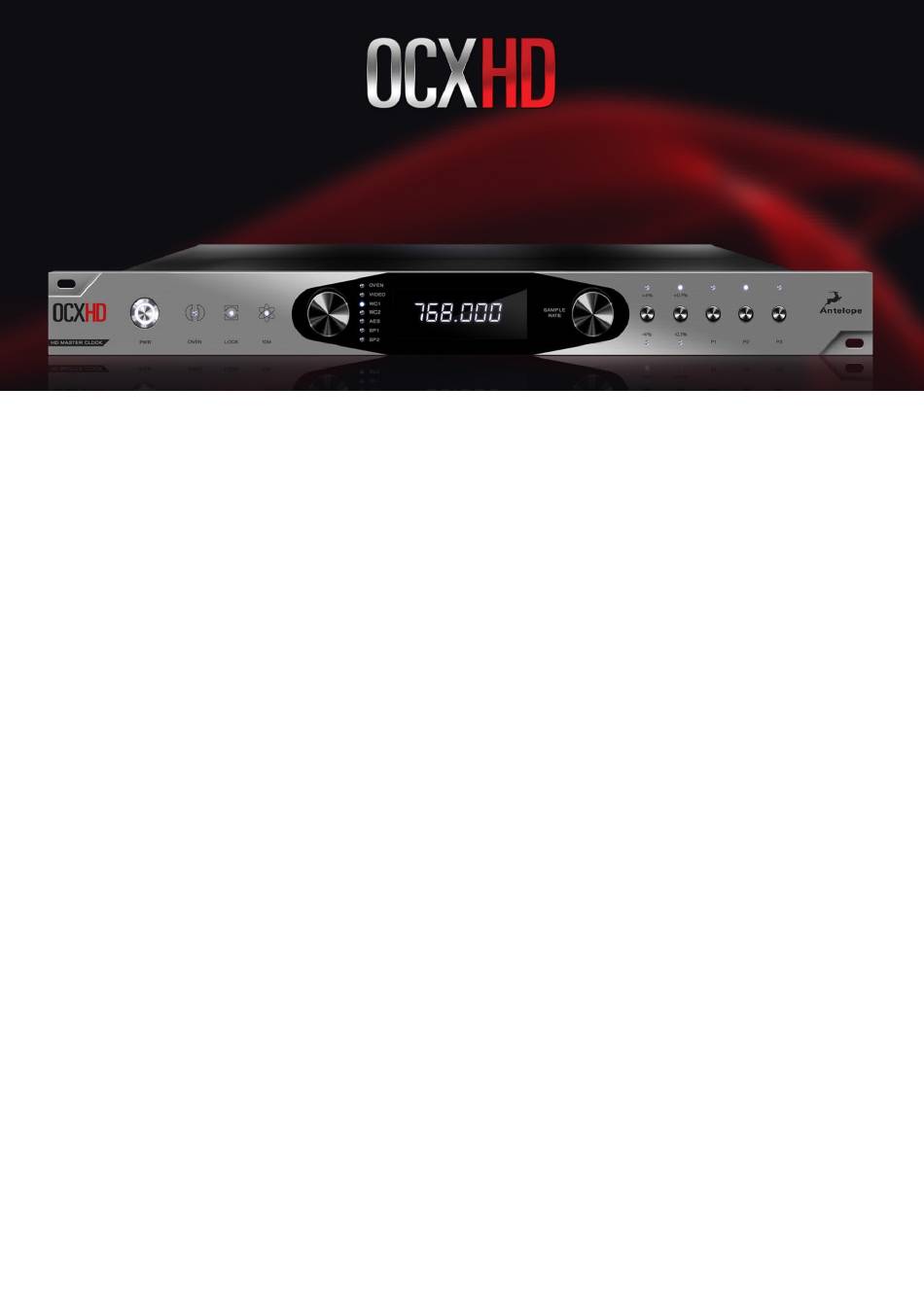

- Page 1 768kHz HD Master Clock USER MANUAL...
-
Page 2: Table Of Contents
4. Pull Up/Pull Down Controls....................11 5. Brightness Slider......................11 6. Clock Source Out......................12 7. Multipliers........................12 8. Presets.......................... 12 Customer Support Information....................12 My Antelope Audio Product Isn’t Working................14 Limited Warranty Policy......................15 Safety Notes......................... 21 Technical Specifications......................22 OCX HD User Manual... -
Page 3: Before You Begin
This legacy now continues with the newest master clock by Antelope Audio - Isochrone OCX HD. OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator. -
Page 4: Mandatory Online Activation
Activating an Antelope device offline is not possible. ACTIVATION GUIDE It is essential to activate your OCX HD before using it. Once connected to your power outlet and your computer's USB port, follow the steps below: 1. - Page 5 Oven Clock lock light will automatically go off. Clock Source Selection Knob This selector allows you to select the current Clock Source for the OCX HD. 'Oven' is for the internal clock, the rest of the options are for clocking to an external source.
-
Page 6: Calibration Mode Explained
Press to recall. Calibration Mode Explained Ensure atomic signal is fed to the Atomic Input, Atomic Clock is locked and the OCX HD Atomic Clock Indicator is lit. Press both Source Selection and Sample Rate Selection knobs simultaneously. - Page 7 Ten Word Clock Outputs on BNC connectors. AES/EBU Outputs These four outputs provide AES/EBU clock at sample rates up to 192kHz. Note that if the OCX HD is working at a higher sample rate than the receiving device, the Word Clock signal cannot be output via this AES/EBU connector.
-
Page 8: Control Panel
1. Function Strip From left to right: On/Standby button Powers the OCX HD on and off. Device S/N Shows which device is currently controlled. If you have multiple devices connected to your PC/MAC computer (or different computers wired in the same Local Area Network), you can select which one to control. - Page 9 To calibrate an Atomic Master Clock, ensure atomic signal is fed to the OCX HD's Atomic Input, the Atomic Clock is warmed up and the OCX HD Atomic Clock Indicator is lit. 1.Click 'Calibration' and the device will enter calibration mode 2.
-
Page 10: Clock Indicators
10M input on the rear panel. This overrides the Oven Clock lock light as soon as it is plugged in and the Oven Clock lock light will automatically go off. Lock - When lit, this indicates OCX HD is locked to a signal that enters through the WC, Video, ... -
Page 11: Clock Source Out
5 dropdown menus used to multiply or divide the current selected sample rate on pairs of 2 Word Clock outputs. This way, the OCX HD can output up to 5 different sample rates on each pair of 2 Word Clock outs. That is, if the sample rate is 96kHz, dividing it by two makes 48kHz and multiplying it by for 4 makes 384kHz. - Page 12 • endorser content which you may find helpful and inspiring. Antelope Audio Users Facebook group lets you interact with fellow users and • some of our employees. Note, however, that it is not meant to be a support group.
-
Page 13: My Antelope Audio Product Isn'tworking
Please, don't attempt to send us your device without receiving a RMA number first, as the device will be returned and not serviced. How do I get an RMA number? The Antelope Audio Customer Support team is in charge of issuing RMA numbers. Visit support.antelopeaudio.com and get in touch. -
Page 14: Limited Warranty Policy
The shipping costs are covered by the owner of the product. Antelope Audio will not cover any local customs charges. We recommend using a courier service of your choice (e.g. DHL, UPS, FedEx). The package... - Page 15 Antelope Audio warrants that the Product will be free from defects in material and workmanship for the period of 1 (one) year commencing on the date of purchase of Product by end-customer from authorized Antelope Audio’s re-seller. Except where explicitly prohibited by applicable local law, this warranty is limited to the original purchaser and is non-transferable.
- Page 16 3) to refund the price paid. Should Antelope Audio decide to refund the price paid, it may deduct from the paid Product’s price any damages caused to the Product; where, within fourteen (14) days of the expiration of the warranty period,(i) Antelope Audio has received written notice of any nonconformity;(ii) after Antelope Audio’s written authorization, customer...
- Page 17 Antelope Audio or any of its authorized manufacturing partners; (ii) Products purchased from a person or entity which is not an authorized dealer or re-seller of Antelope Audio; (iii)Product sold “as is” or “with all faults”, to the extent permitted by local law.
- Page 18 Product. Returning Your Product In the event that you need to return your Antelope Audio products for repair or replacement, Antelope Audio will provide you with a Return Merchandise Authorization Number (RMA#) as well as return instructions.
- Page 19 (B2B) / Direct customers of Antelope Audio please email us at techsupport@antelopeaudio.com (ii) A valid proof of purchase is required for RMA processing (i.e. receipt, invoice, etc). Antelope Audio will provide you with the RMA number within 2 working days as of the claim submission date. RMA Return Addresses We have multiple RMA receiving locations worldwide.
-
Page 20: Safety Notes
Republic of Bulgaria with UIN: 131052590, is doing business and is worldwide known. Elsewhere in this document where the trade name Antelope Audio is used shall refer to Elektrosfera ltd., with address of management: Tsarigradsko Shose Blvd., 7th km, Building of BIC IZOT, floor 6, Mladost region, Sofia, Bulgaria. -
Page 21: Technical Specifications
(~30.6 g*), 5 msec half-sine pulse per IEC 60068-2-27:2008 Power supply AC Universal Input ~100-240V, 10 Watts Max Operating Temperature 0-50 C / 32-122 F Weight 2.65 kg/ 5.84 lb Dimensions (unit) Width: 482.6 mm / 19" Height: 44 mm / 1.75" OCX HD User Manual... - Page 22 Depth: 230 mm / 9.05" In The Box Isochrone OCX HD Warranty Card Owner's Manual 1x USB Cable 1x Power Cable OCX HD User Manual...
